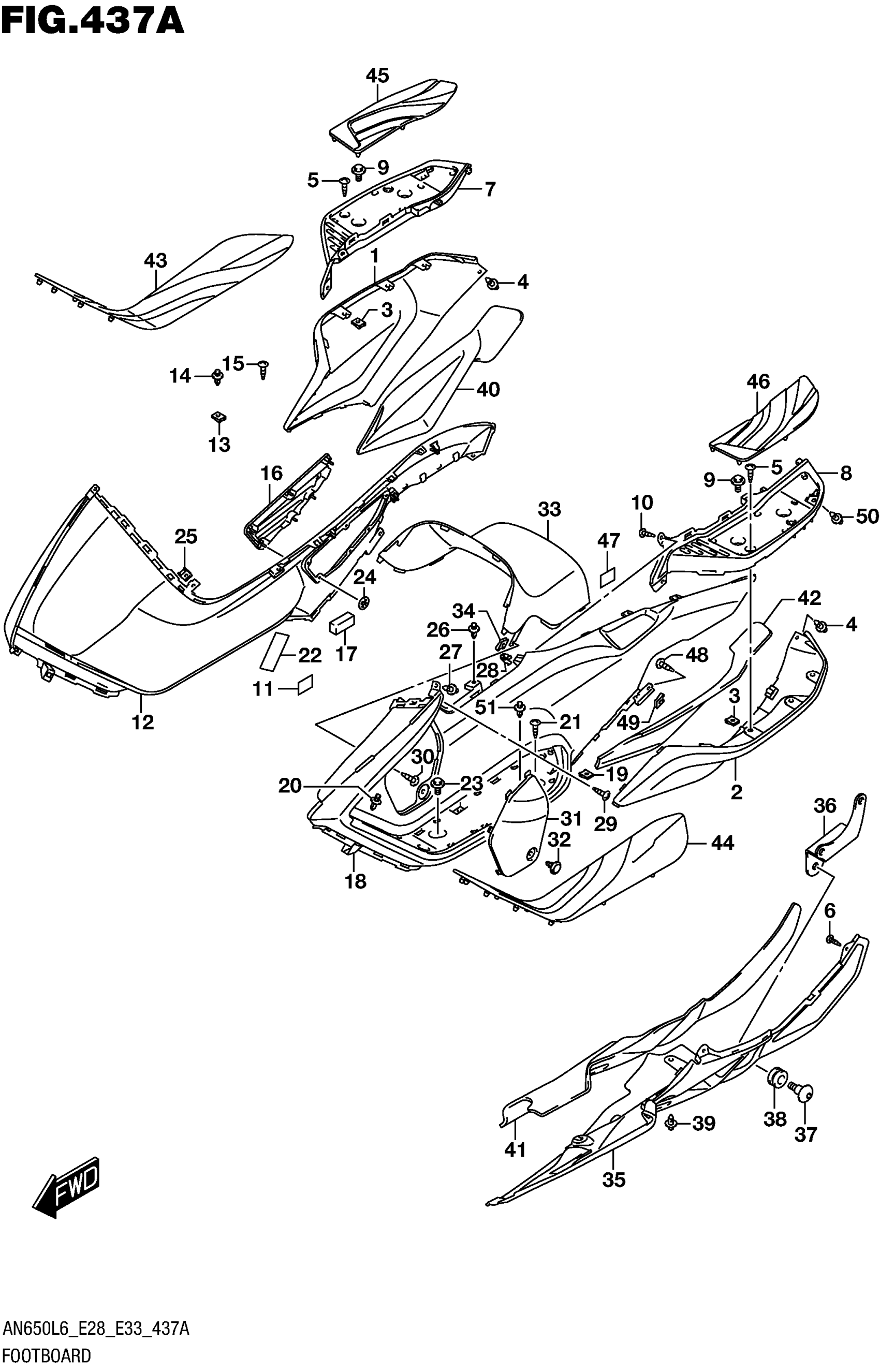

Suzuki AN650L6 (2016) FOOTBOARD Diagram

#

Description
Price

1

FOOTBOARD,REAR This part replaces 48127-26J01-YKV.

48127-26J20-YKV

$119.90

1

FOOTBOARD,REAR This part replaces 48127-26J01-YKV.

48127-26J20-YKV

$119.90

2

FOOTBOARD,REAR This part replaces 48128-26J01-YKV.

48128-26J20-YKV

$119.90

2

FOOTBOARD,REAR This part replaces 48128-26J01-YKV.

48128-26J20-YKV

$119.90

3

NUT

09148-05038

$1.97

4

CLIP (BLACK)

09409-06314-5PK

$2.80

5

SCREW

03541-0512A

$1.37

6

SCREW

03541-0516A

$1.37

7

FOOTBOARD, REAR UPPER RH

48125-26J50

$32.72

8

FOOTBOARD, REAR UPPER LH

48126-26J50

$33.33

9

BOLT (6X14.8)

09111-06109

$4.55

10

SCREW

03541-0516A

$1.37

11

CUSHION, FOOTBOARD NO.2

33652-13G00

$4.05

12

FOOTBOARD, RH

48120-26J50

$171.82

13

.NUT

09148-05038

$1.97

14

.CLIP (BLACK)

09409-06314-5PK

$2.80

15

.SCREW

03541-0512A

$1.37

16

LOUVER, AIR RH

48123-26J50

$11.17

17

CUSHION, FOOTBOARD NO.1

48127-10G00

$25.42

18

FOOTBOARD, LH

48130-26J50

$182.30

19

.NUT

09148-05038

$1.97

20

.CLIP (BLACK)

09409-06314-5PK

$2.80

21

.SCREW

03541-0512A

$1.37

22

SHIELD, FOOTBOARD RH

48327-26J00

$13.67

23

BOLT (6X14.8)

48196-26J00

Unavailable

24

NUT

09148-03010

$2.87

25

NUT

09148-05038

$1.97

26

CLIP (BLACK)

09409-06314-5PK

$2.80

27

CLIP

09409-06329

$2.80

28

CLIP

09409-08326

$2.45

29

SCREW

03541-0516A

$1.37

30

SCREW

03541-0516A

$1.37

31

LID,MAINTENANCE This part replaces 48191-26J50.

48191-26J51

$23.05

32

CLIP, MAINTENANCE LID

94479-35F00

$5.14

33

COVER, CENTER

48124-26J50

$49.63

34

NUT

09148-05038

$1.97

35

COVER, UNDER CTR

48138-26J50

$102.02

36

BRACKET, UNDER COVER

48330-10G00

Unavailable

37

BOLT (6X20)

09139-06190

$3.77

38

CUSHION

09320-09016

$1.97

39

CLIP

09409-07333

$2.29

40

CUSHION,RR FOOT This part replaces 48313-26J00.

48313-26J01

$14.75

41

CUSHION, UNDER COVER LOWER

48316-26J00

$22.38

42

CUSHION, REAR FOOTBOARD LOWER

48323-26J00

$9.05

43

MAT,FLOOR FR RH This part replaces 48211-26J00-291.

48211-26JA0-291

$34.35

44

MAT,FLOOR FR LH This part replaces 48221-26J00-291.

48221-26JA0-291

$40.07

45

MAT,FLOOR RR RH This part replaces 48231-26J00-291.

48231-26JA0-291

$12.23

46

MAT,FLOOR RR LH This part replaces 48241-26J00-291.

48241-26JA0-291

$11.93

47

CUSHION, FOOTBOARD NO.3

17798-29E30

$6.12

48

SCREW

03541-0516A

$1.37

49

NUT

09148-05038

$1.97

50

CLIP (BLACK)

09409-06314-5PK

$2.80

51

CLIP (BLACK) | LH

09409-06314-5PK

$2.80
