2016 Suzuki AN650L6 Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2016 Suzuki AN650L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

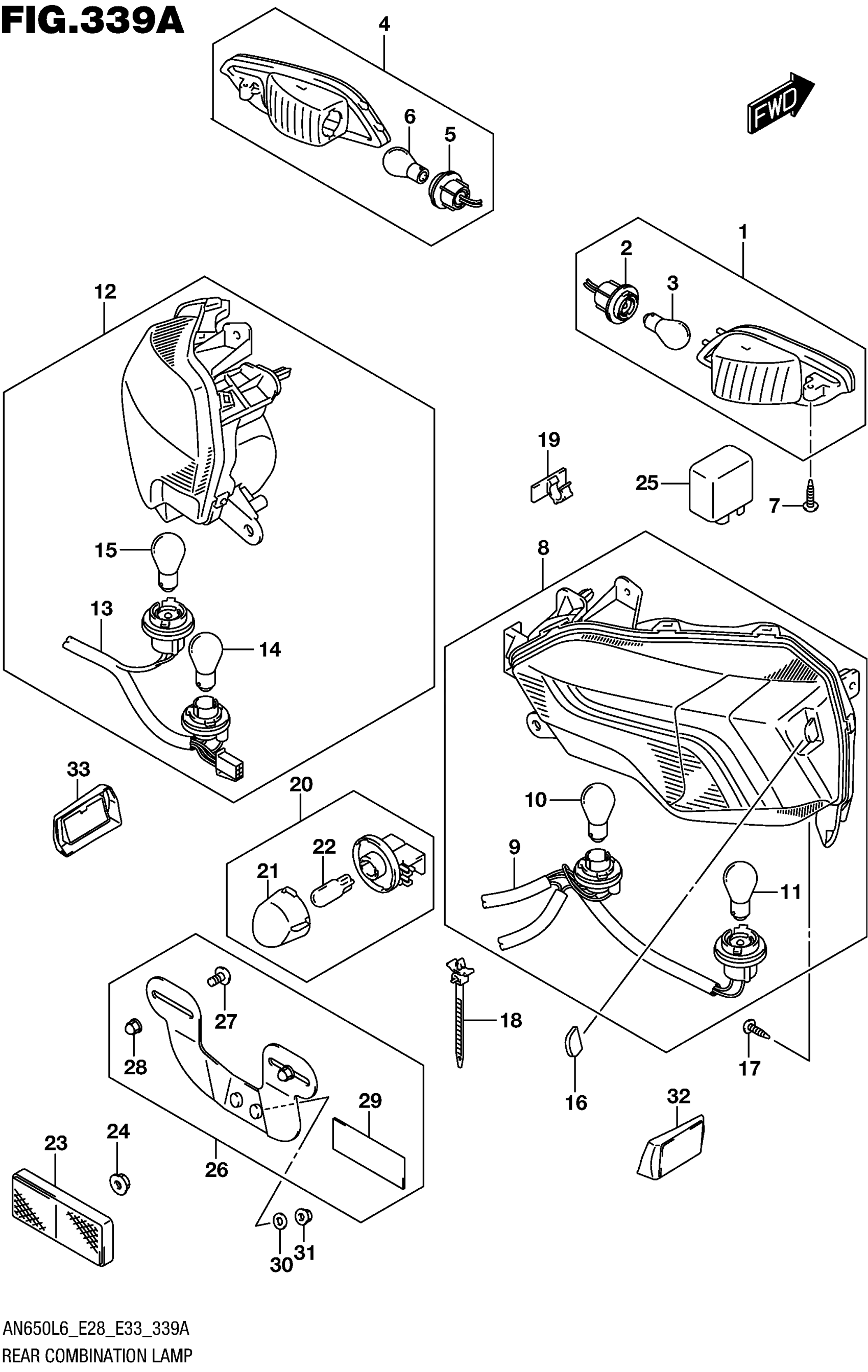

2016 Suzuki AN650L6 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-26J00

1
Out of stock

2

.SOCKET, RH

35618-26J00

1
Out of stock

3

.BULB (12V,21W)

09471-12186

1

$12.50

In stock

4

LAMP ASSY, FRONT TURNSIGNAL L

35602-26J00

1
Out of stock

5

.SOCKET, LH

35638-26J00

1
Out of stock

6

.BULB (12V,21W)

09471-12186

1

$12.50

In stock

7

SCREW

03541-0520A

2
Out of stock

8

LAMP ASSY, REAR COMBINATION R

35603-26J01

1
Out of stock

9

.SOCKET & CORD, RH

35658-26J01

1
Out of stock

10

BULB (12V,21/5W) This part replaces 09471-12046.

09471-12128

1
Out of stock

11

.BULB (12V,21W)

09471-12186

1

$12.50

In stock

12

LAMP ASSY, REAR COMBINATION L

35604-26J01

1
Out of stock

13

.SOCKET & CORD, LH

35678-26J01

1
Out of stock

14

BULB (12V,21/5W) This part replaces 09471-12046.

09471-12128

1
Out of stock

15

.BULB (12V,21W)

09471-12186

1

$12.50

In stock

16

CUSHION

09329-18001

2
Out of stock

17

SCREW

03541-0516A

6
Out of stock

18

CLAMP (L:90)

09407-11402

2
Out of stock

19

CLAMP

09403-10318

1
Out of stock

20

LAMP ASSY, LICENSE

35910-14F01

1
Out of stock

21

.LENS

35912-14F11

1
Out of stock

22

.BULB (12V5W)

09471-12216

1
Out of stock

23

REFLECTOR ASSY, REAR SIDE

35970-07F01

1
Out of stock

24

NUT

08316-1005A

1
Out of stock

25

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

1
Out of stock

26

BRACKET, LICENSE PLATE

35927-10G00

1
Out of stock

27

.SCREW

02142-0612B

2
Out of stock

28

.NUT

08313-2006B

2
Out of stock

29

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

2
Out of stock

30

WASHER (6.5X24X1.2)

09160-06114

2
Out of stock

31

NUT

08316-1006A

2
Out of stock

32

REFLECTOR ASSY, REAR SIDE RH

35973-26J00

1
Out of stock

33

REFLECTOR ASSY, REAR SIDE LH

35974-26J00

1
Out of stock
