2016 Suzuki AN650L6 Meter Panel Diagram

← All diagrams

Find the part on the Meter Panel diagram for your 2016 Suzuki AN650L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

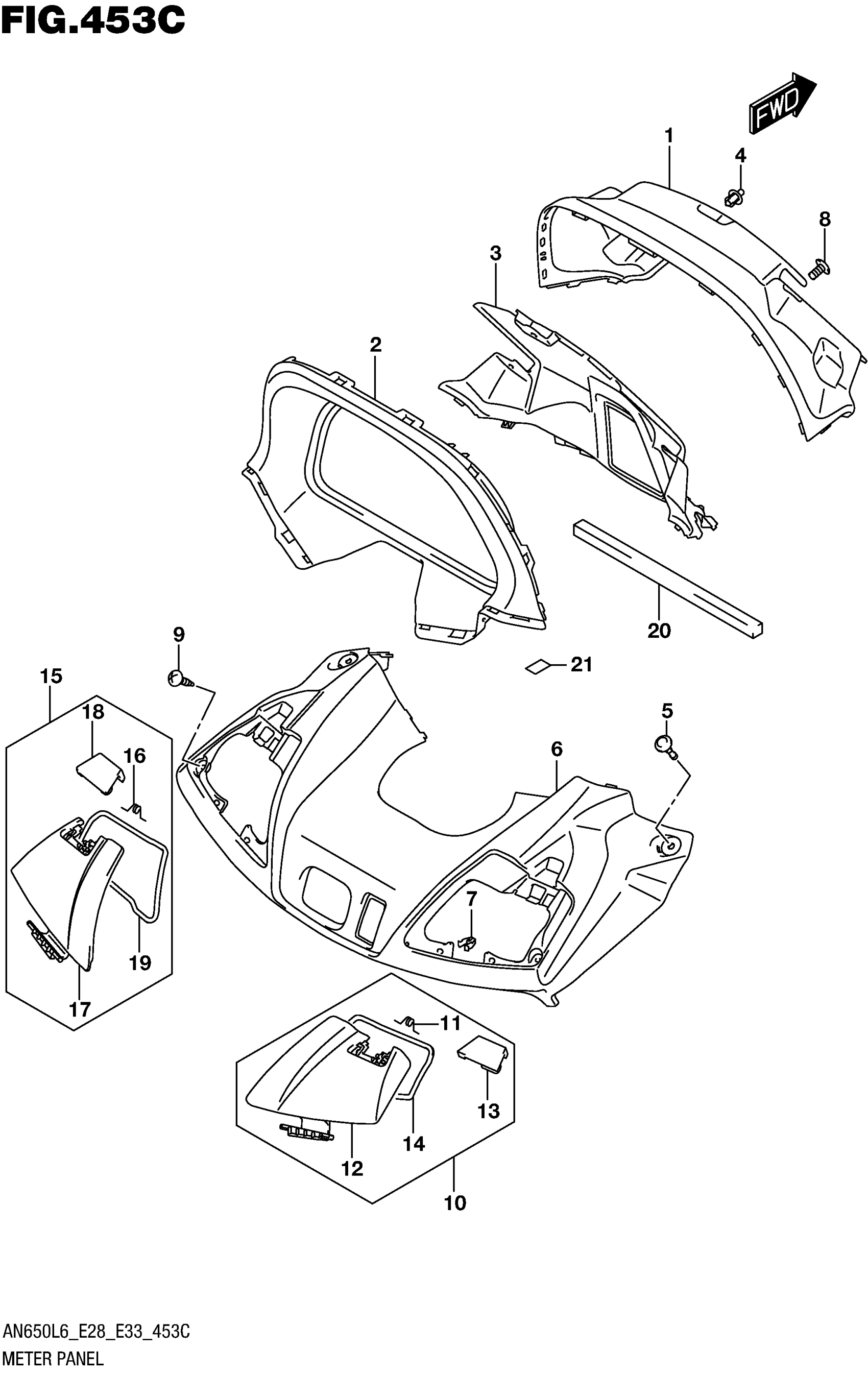

2016 Suzuki AN650L6 Meter Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, METER FRONT UPPER

94421-26J50

1
Out of stock

2

PANEL, METER REAR

94422-26J50

1
Out of stock

3

PANEL, METER FRONT LOWER

94424-26J50

1
Out of stock

4

CLIP, METER PANEL FRONT

94479-35F00

1
Out of stock

5

CLIP, FRONT PANEL

94479-35F00

2
Out of stock

6

PANEL, FRONT This part replaces 94671-26J50.

94671-26J51

1
Out of stock

7

CLIP

09409-08326

2
Out of stock

8

SCREW

02142-0512B

4

$2.20

In stock

9

SCREW

03541-0516B

2
Out of stock

10

LID, FRONT PANEL BOX RH

92140-26J50

1
Out of stock

11

.SPRING

73843-81J00

1
Out of stock

12

.LID, FRONT PANEL RH

92142-26J50

1
Out of stock

13

.LOCK, FRONT PANEL BOX RH

92143-26J50

1
Out of stock

14

.CUSHION, FRONT PANEL LID

92145-26J00

1
Out of stock

15

LID, FRONT PANEL BOX LH

92150-26J50

1
Out of stock

16

.SPRING

73843-81J00

1
Out of stock

17

.LID, FRONT PANEL LH

92152-26J50

1
Out of stock

18

.LOCK, FRONT PANEL BOX LH

92153-26J50

—
Out of stock

19

.CUSHION, FRONT PANEL LID

92145-26J00

1
Out of stock

20

CUSHION, METER PANEL

94425-26J00

1
Out of stock

21

TAPE, METER PANEL

94432-19F00

1
Out of stock
