2016 Suzuki AN650L6 Electrical Diagram

← All diagrams

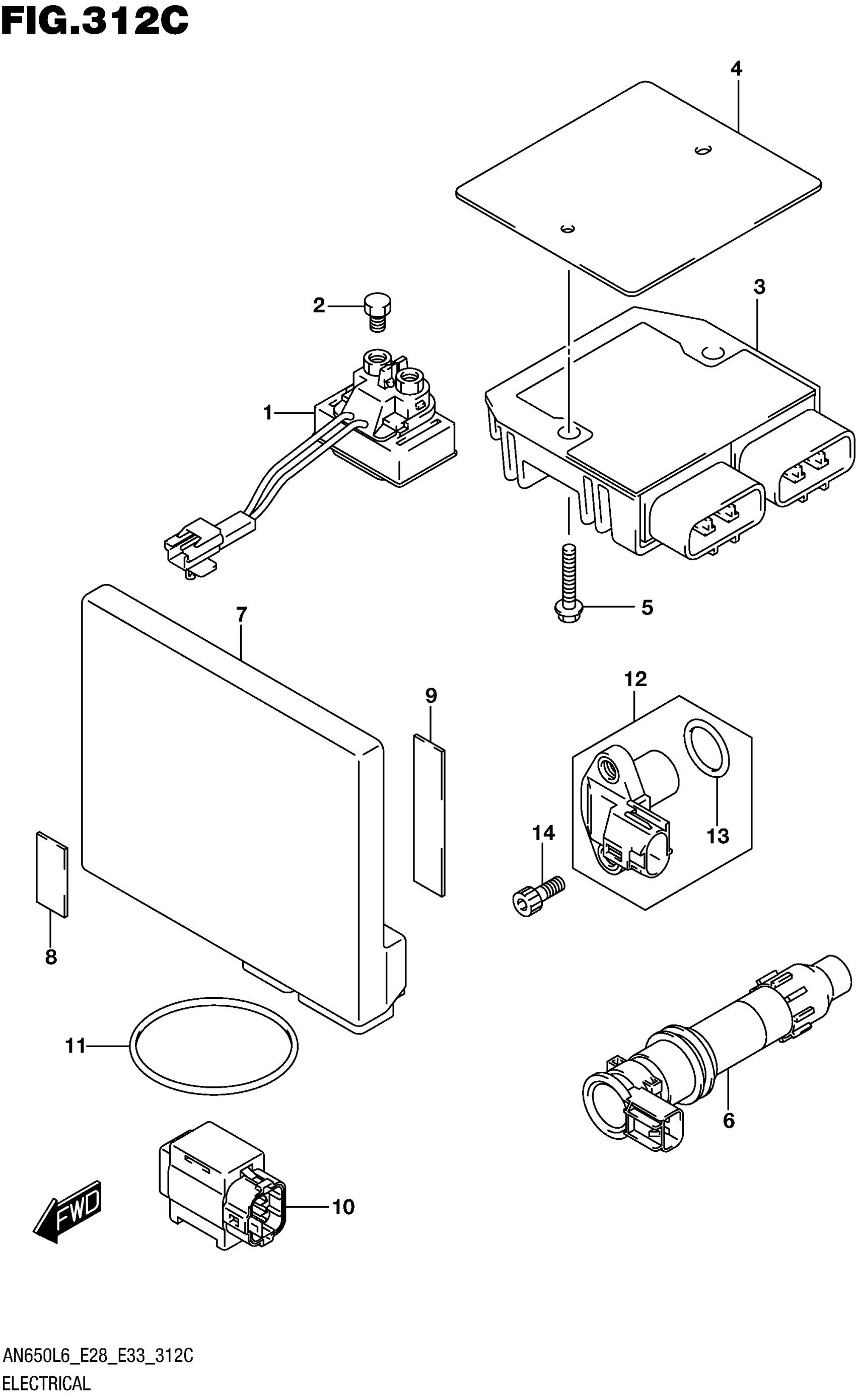

Find the part on the Electrical diagram for your 2016 Suzuki AN650L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki AN650L6 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STAR This part replaces 31800-10G00.

31800-10G02

1
Out of stock

2

SCREW (6X8)

09128-06013

2
Out of stock

3

RECTIFIER ASSY This part replaces 32800-26J00.

32800-26J02

1
Out of stock

4

PLATE, RECTIFIER

32832-26J00

1
Out of stock

5

SCREW

02162-0630A

2
Out of stock

6

COIL ASSY, IGNITION

33410-47H00

2
Out of stock

7

CONTROL UNIT,FI This part replaces 32920-26J10.

32920-26J11

1
Out of stock

8

CUSHION, FI CONTROL UNIT

33651-37000

2
Out of stock

9

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

2
Out of stock

10

SENSOR ASSY,FUEL CUT

33960-06G10

1
Out of stock

11

O RING(D:3.5,ID This part replaces 09280-63003.

09280-61004

1
Out of stock

12

SENSOR ASSY, CAM POSITION

32160-02F10

1
Out of stock

13

.PACKING

32161-02F00

1
Out of stock

14

BOLT (6X16)

09106-06073

2
Out of stock
