2015 Suzuki AN650L5 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2015 Suzuki AN650L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

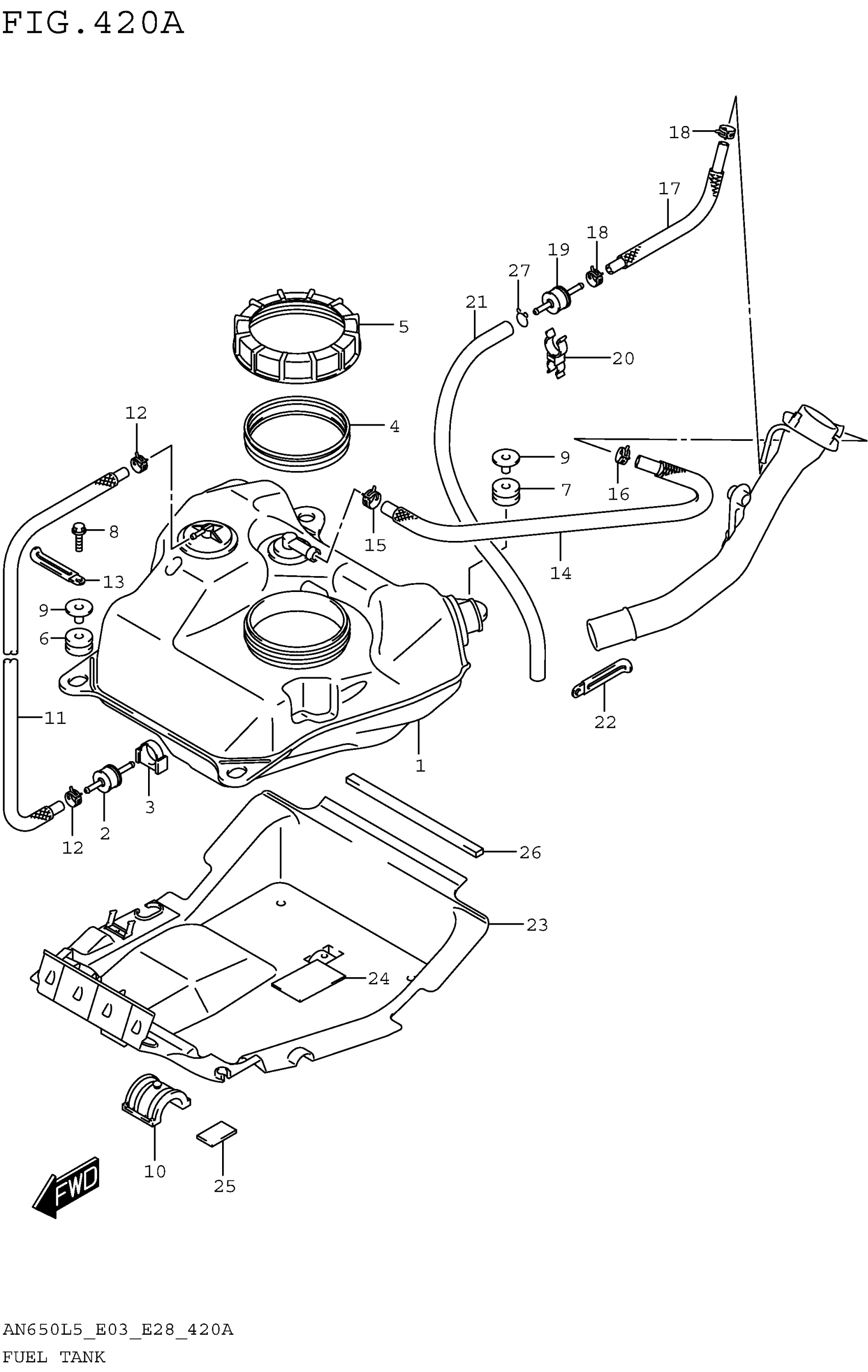

2015 Suzuki AN650L5 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL

44110-10G50

1
Out of stock

2

VALVE,2 WAY CHECK

85451-75100

1
Out of stock

3

CUSHION, CHECK VALVE

44884-10G00

1
Out of stock

4

PACKING, FUEL PUMP

44596-26J00

1
Out of stock

5

RETAINER, FUEL PUMP

44597-26J00

1
Out of stock

6

CUSHION, FRONT

44511-10G00

2
Out of stock

7

CUSHION, REAR

44511-10G10

2
Out of stock

8

SCREW

02162-0625A

2
Out of stock

9

WASHER,FUEL TANK

44512-10G00

4
Out of stock

10

CUSHION, LOWER

44541-10G00

1
Out of stock

11

HOSE, FUEL TANK & CHECK VALVE

44434-10GA0

1
Out of stock

12

CLIP (ID:9.4,H:8)

09401-09403

2
Out of stock

13

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock

14

HOSE, AIR VENT

44424-10G10

1
Out of stock

15

CLIP

09401-20405

1

$4.43

In stock

16

CLIP

09401-18404

1
Out of stock

17

HOSE, CHECK VALVE

44425-10GA0

1
Out of stock

18

CLIP (ID:9.4,H:8)

09401-09403

2
Out of stock

19

VALVE, CHECK

44240-10G00

1
Out of stock

20

CLAMP

09408-00140

1
Out of stock

21

HOSE, VALVE

44426-10G00

1
Out of stock

22

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock

23

COVER, FUEL TANK LOWER

44271-10G10

1
Out of stock

24

CUSHION, NO.1

44542-10G00

1
Out of stock

25

CUSHION, NO.2

44543-10G00

2
Out of stock

26

CUSHION, LOWER COVER

44276-10G00

1
Out of stock

27

CLIP

09401-09101

1
Out of stock
