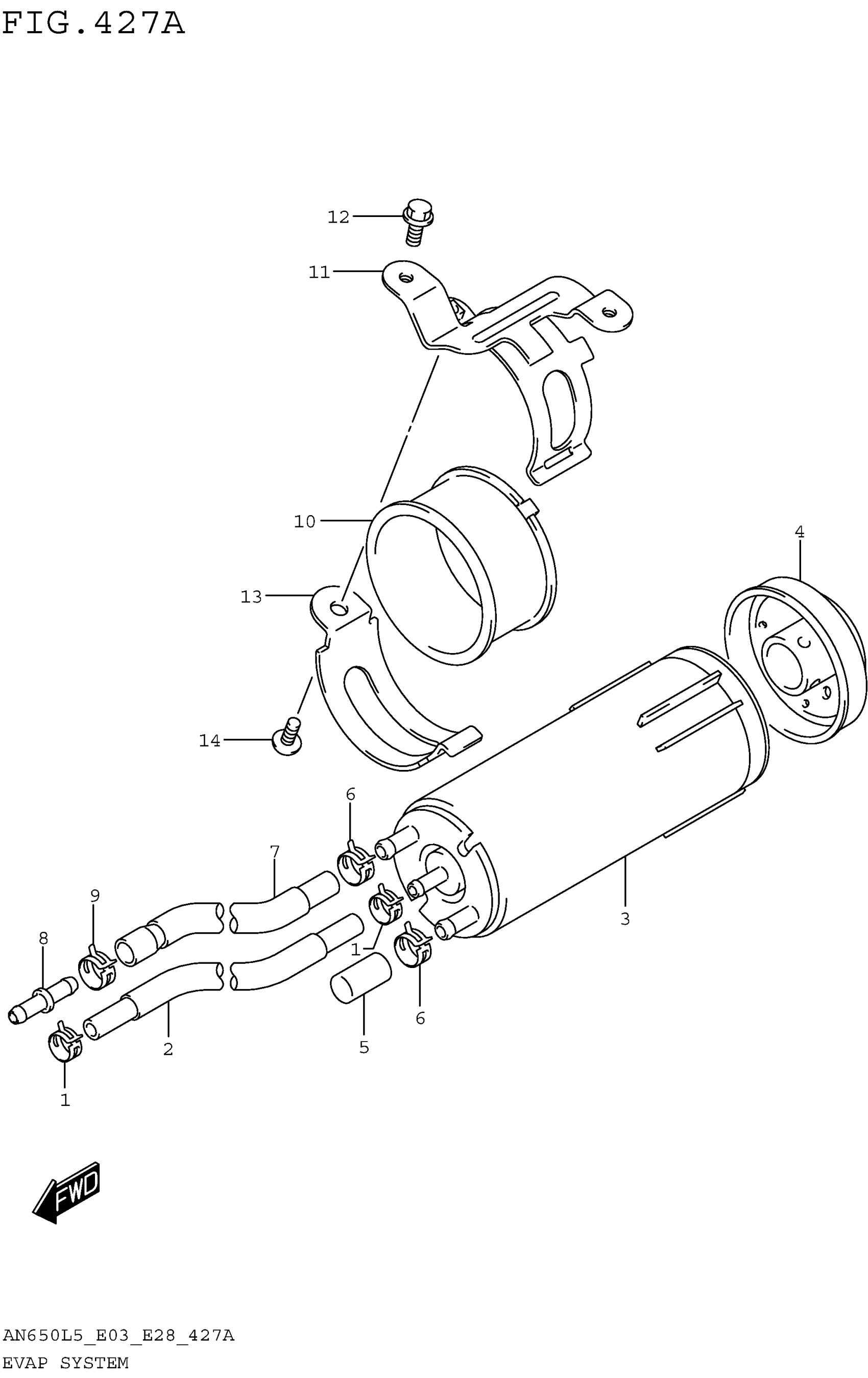

Find the part on the Evap System diagram for your 2015 Suzuki AN650L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki AN650L5 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLIP (ID:10.5,H:8)

09401-10409

2
Out of stock

2

HOSE, CANISTER & CHECK VALVE

44435-10GA0

1
Out of stock

3

CANISTER ASSY, CHARCOAL

17210-15H00

1
Out of stock

4

CAP CANISTER This part replaces 17211-48E00.

17211-48E01

1
Out of stock

5

CAP (OD:11.5)

09251-07003

1
Out of stock

6

CLIP

09401-11415

2
Out of stock

7

HOSE, PURGE

44436-10GA0

1
Out of stock

8

JOINT

09367-06009

1
Out of stock

9

CLIP (ID:10.5,H:8)

09401-10409

1
Out of stock

10

CUSHION CANISTER

44883-26E00

1
Out of stock

11

BRACKET, CANISTER

44880-10G00

1
Out of stock

12

BOLT

01550-0612A

2
Out of stock

13

HOLDER, CANISTER

44882-26E00

1
Out of stock

14

SCREW

02142-0610A

1
Out of stock
