2015 Suzuki AN650L5 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2015 Suzuki AN650L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

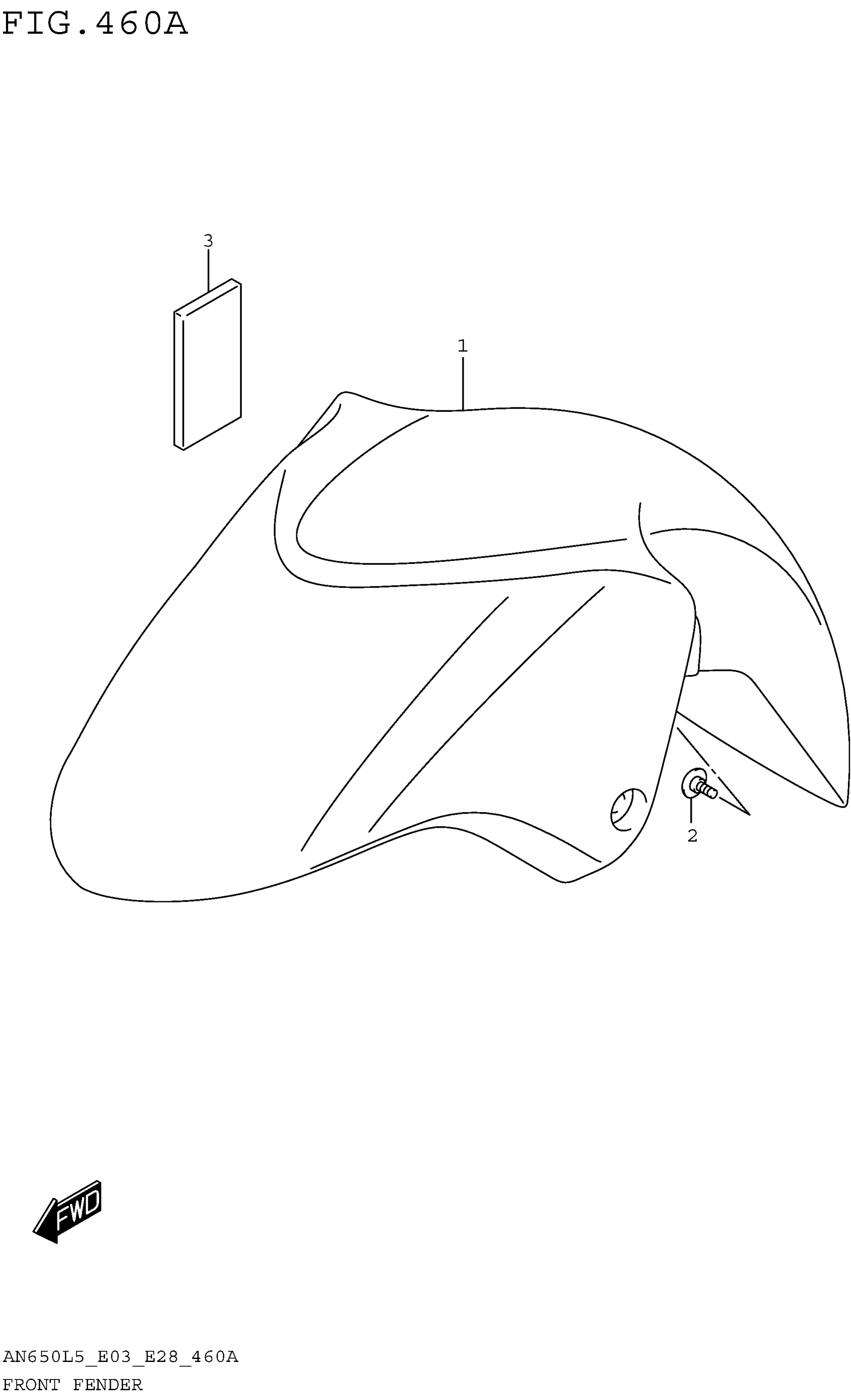

2015 Suzuki AN650L5 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (GRAY)

53111-26J00-PGZ

1
Out of stock

1

FENDER, FRONT (WHITE)

53111-26J00-RB5

1
Out of stock

1

FENDER, FRONT (BLACK)

53111-26J00-YKV

1
Out of stock

2

SCREW (6X16)

09122-86005

2
Out of stock

3

CUSHION

53145-26J00

2
Out of stock
