Description

Price

1

SHIELD, LEG FRONT (GRAY)

48111-26J00-PGZ

$501.28

1

SHIELD, LEG FRONT (WHITE)

48111-26J00-RB5

$501.83

1

SHIELD, LEG FRONT (BLACK)

48111-26J00-YKV

$493.45

2

COVER, FR LEG SHIELD (GRAY)

48131-26J01-PGZ

Unavailable

2

COVER, FR LEG SHIELD (WHITE)

48131-26J01-RB5

$119.67

2

COVER, FR LEG SHIELD (BLACK)

48131-26J01-YKV

$110.80

3

SCREW

09136-06002

$2.28

4

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

5

CLIP

09409-08326

$2.45

6

SHIELD, LEG LOWER This part replaces 48137-26J00-291.

48137-26J50

$79.15

7

CLIP, METER PANEL FRONT

94479-35F00

$5.14

8

COVER, LOWER BRACKET

94458-10G00

$24.92

9

BOLT (6X12)

09111-06107

$2.66

10

CUSHION

09320-06026

$4.45

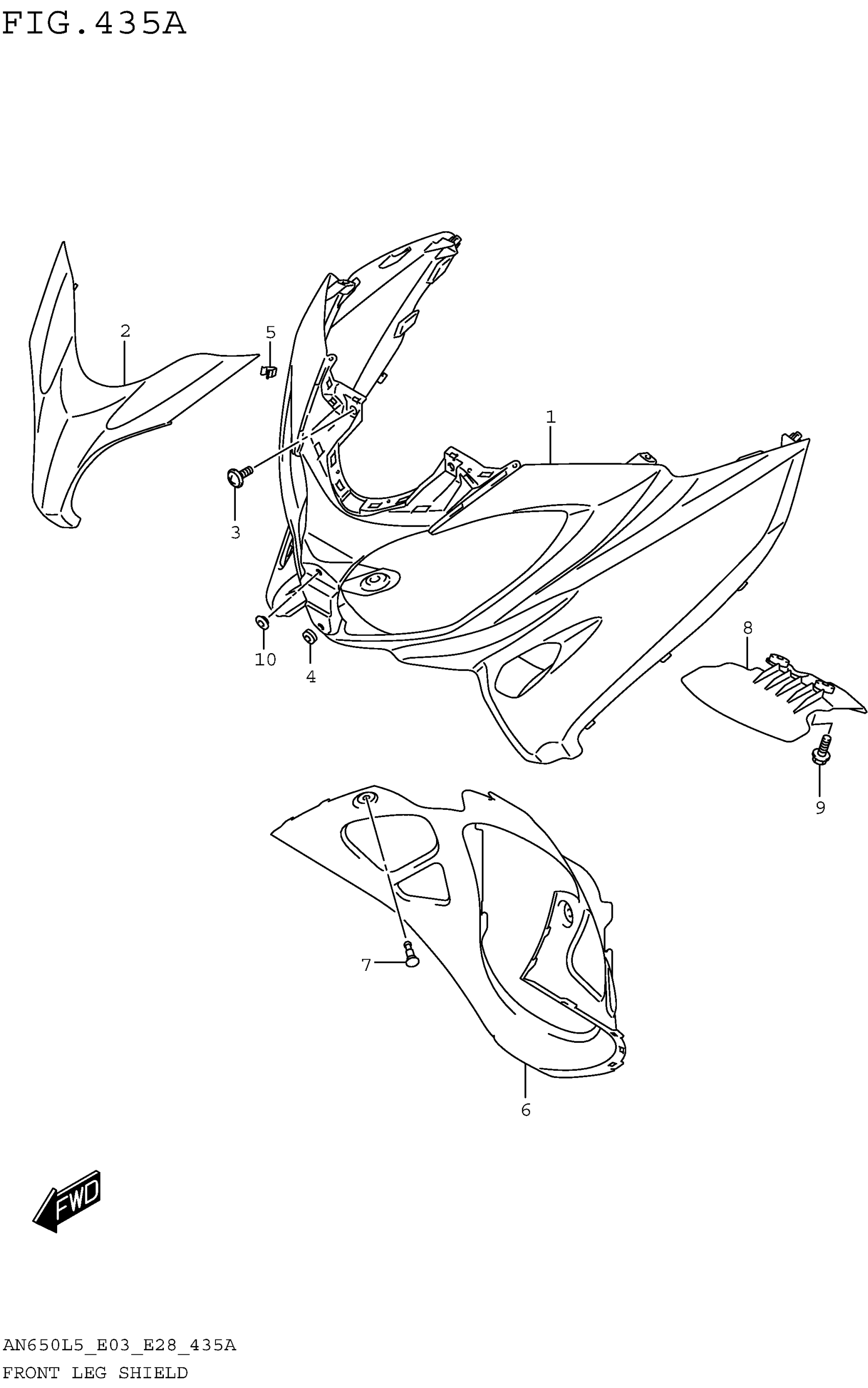

Suzuki AN650L5 (2015) FRONT LEG SHIELD Diagram
