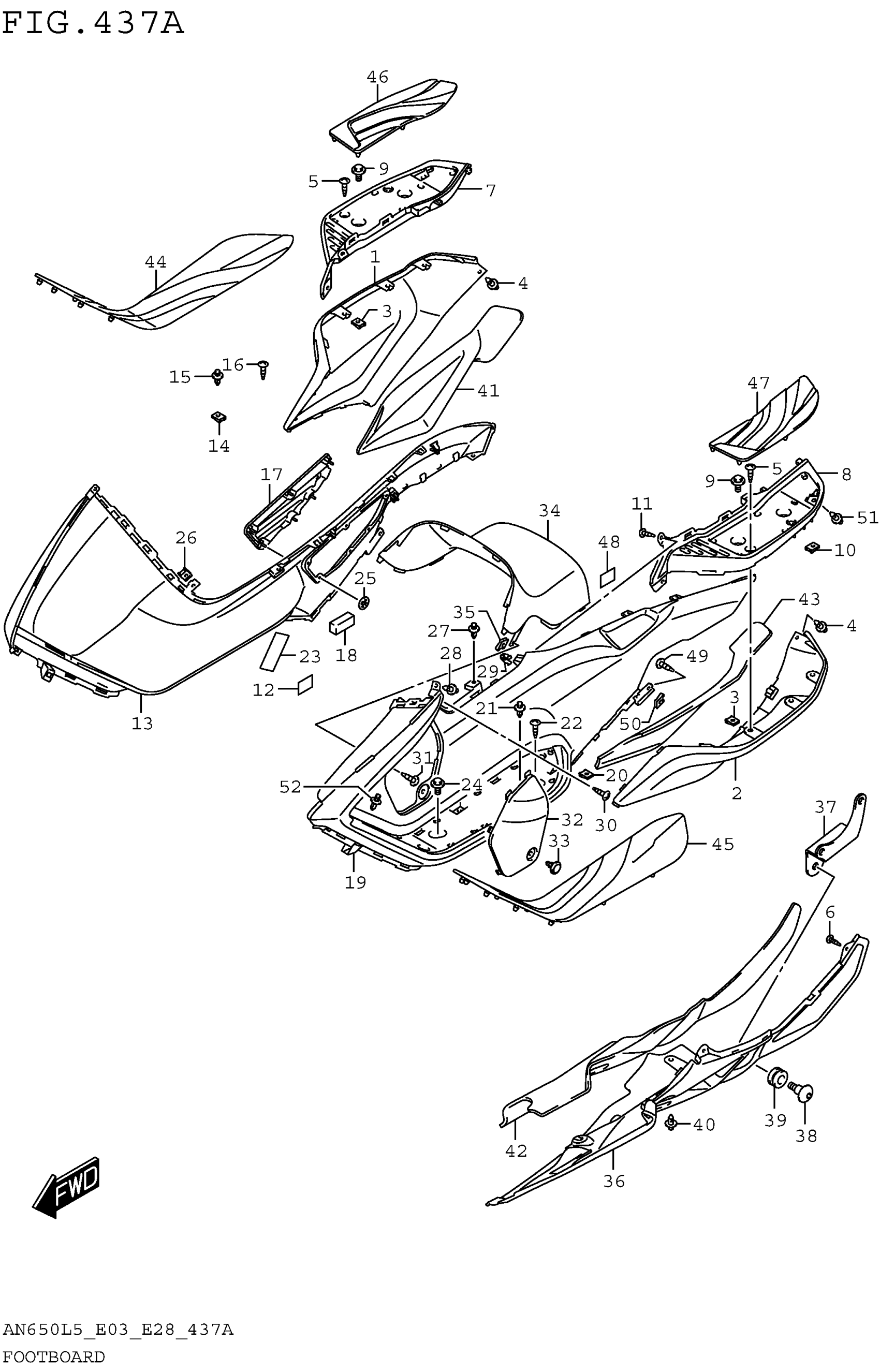

Suzuki AN650L5 (2015) FOOTBOARD Diagram

#

Description
Price

1

FOOTBOARD,REAR This part replaces 48127-26J00-YKV.

48127-26J20-YKV

$119.90

2

FOOTBOARD,REAR This part replaces 48128-26J01-YKV.

48128-26J20-YKV

$119.90

3

NUT

09148-05038

$1.97

4

CLIP (BLACK)

09409-06314-5PK

$2.80

5

SCREW

03541-0512A

$1.37

6

SCREW

03541-0516A

$1.37

7

FOOTBOARD, REAR UPPER RH This part replaces 48125-26J00-291.

48125-26J50

$32.72

8

FOOTBOARD, REAR UPPER LH This part replaces 48126-26J00-291.

48126-26J50

$33.33

9

BOLT (6X14.8)

09111-06109

$4.55

10

NUT

09148-05038

$1.97

11

SCREW

03541-0516A

$1.37

12

CUSHION, FOOTBOARD NO.2

33652-13G00

$4.05

13

FOOTBOARD, RH This part replaces 48120-26J01-291.

48120-26J50

$171.82

14

NUT

09148-05038

$1.97

15

CLIP (BLACK)

09409-06314-5PK

$2.80

16

SCREW

03541-0512A

$1.37

17

LOUVER, AIR RH This part replaces 48123-26J00-291.

48123-26J50

$11.17

18

CUSHION, FOOTBOARD NO.1

48127-10G00

$25.42

19

FOOTBOARD, LH This part replaces 48130-26J01-291.

48130-26J50

$182.30

20

NUT

09148-05038

$1.97

21

CLIP (BLACK)

09409-06314-5PK

$2.80

22

SCREW

03541-0512A

$1.37

23

SHIELD, FOOTBOARD RH

48327-26J00

$13.67

24

BOLT (6X14.8)

48196-26J00

Unavailable

25

NUT

09148-03010

$2.87

26

NUT

09148-05038

$1.97

27

CLIP (BLACK)

09409-06314-5PK

$2.80

28

CLIP

09409-06329

$2.80

29

CLIP

09409-08326

$2.45

30

SCREW

03541-0516A

$1.37

31

SCREW

03541-0516A

$1.37

32

LID,MAINTENANCE This part replaces 48191-26J00-291.

48191-26J51

$23.05

33

CLIP, MAINTENANCE LID

94479-35F00

$5.14

34

COVER, CENTER This part replaces 48124-26J00-291.

48124-26J50

$49.63

35

NUT

09148-05038

$1.97

36

COVER, UNDER CTR This part replaces 48138-26J00-291.

48138-26J50

$102.02

37

BRACKET, UNDER COVER

48330-10G00

Unavailable

38

BOLT (6X20)

09139-06190

$3.77

39

CUSHION

09320-09016

$1.97

40

CLIP

09409-07333

$2.29

41

CUSHION,RR FOOT This part replaces 48313-26J00.

48313-26J01

$14.75

42

CUSHION, UNDER COVER LOWER

48316-26J00

$22.38

43

CUSHION, REAR FOOTBOARD LOWER

48323-26J00

$9.05

44

MAT,FLOOR FR RH This part replaces 48211-26J00-291.

48211-26JA0-291

$34.35

45

MAT,FLOOR FR LH This part replaces 48221-26J00-291.

48221-26JA0-291

$40.07

46

MAT,FLOOR RR RH This part replaces 48231-26J00-291.

48231-26JA0-291

$12.23

47

MAT,FLOOR RR LH This part replaces 48241-26J00-291.

48241-26JA0-291

$11.93

48

CUSHION, FOOTBOARD NO.3

17798-29E30

$6.12

49

SCREW

03541-0516A

$1.37

50

NUT

09148-05038

$1.97

51

CLIP (BLACK)

09409-06314-5PK

$2.80

52

CLIP (BLACK)

09409-06314-5PK

$2.80
