2014 Suzuki AN650L4 Starter Clutch Diagram

← All diagrams

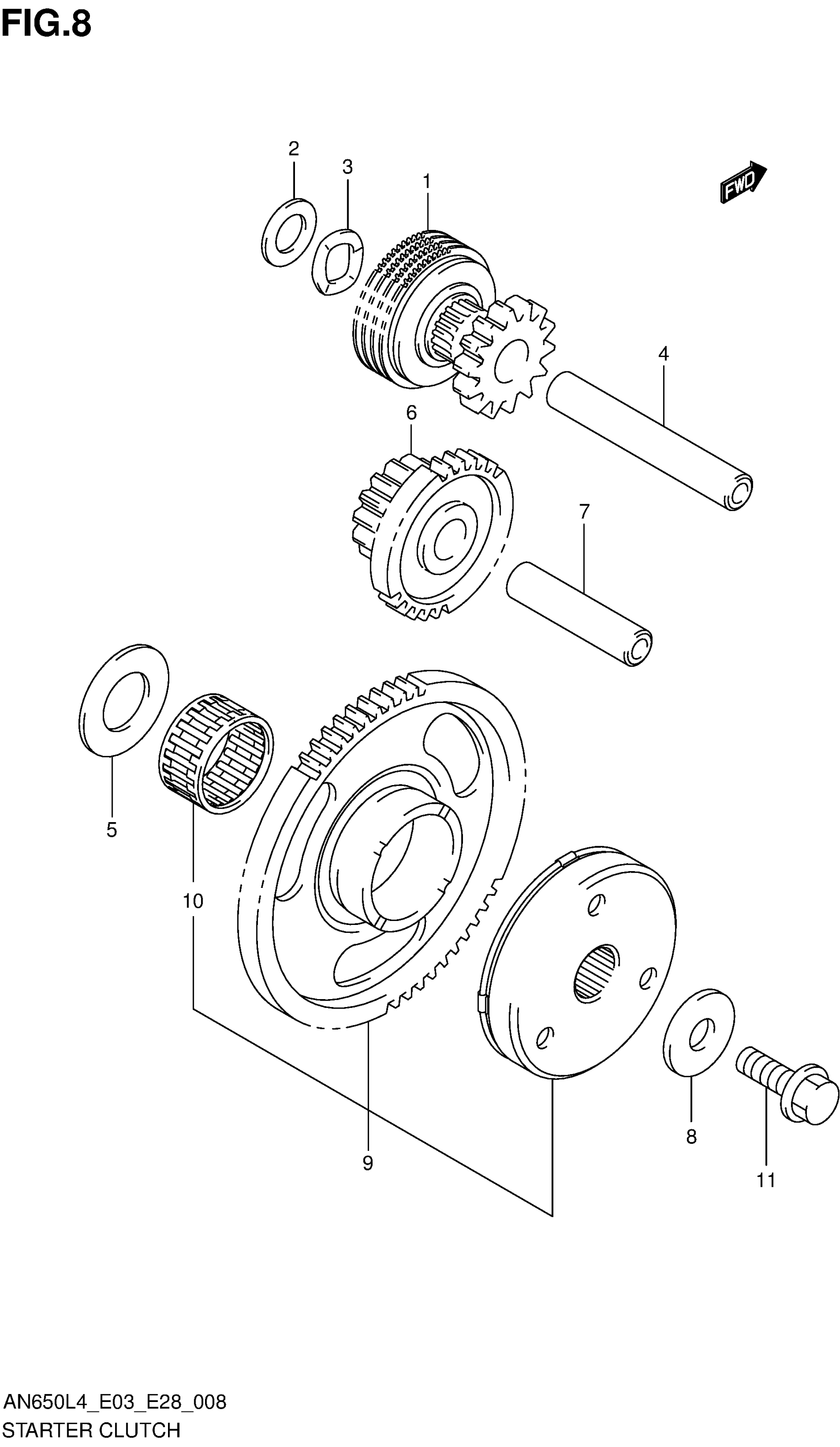

Find the part on the Starter Clutch diagram for your 2014 Suzuki AN650L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki AN650L4 Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LIMITER ASSY, STARTER IDLE (NT:45)

12600-10G02

1
Out of stock

2

WASHER (13X24X1)

09160-13006

1
Out of stock

3

WASHER

09164-13008

1
Out of stock

4

PIN (7.4X13X77)

09206-13021

1
Out of stock

5

WASHER

08211-20403

1
Out of stock

6

GEAR, STARTER IDLE NO.2 (NT:13/25)

12612-10G00

1
Out of stock

7

PIN (7X12X50.5)

09206-12002

1
Out of stock

8

WASHER

08211-10285

1
Out of stock

9

CLUTCH SET, STARTER (NT:59)

12600-10871

1
Out of stock

10

BEARING (28X34X16.8)

09263-28031

1
Out of stock

11

BOLT (10X23)

09103-10189

1
Out of stock
