2014 Suzuki AN650L4 Handle Switch Diagram

← All diagrams

Find the part on the Handle Switch diagram for your 2014 Suzuki AN650L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

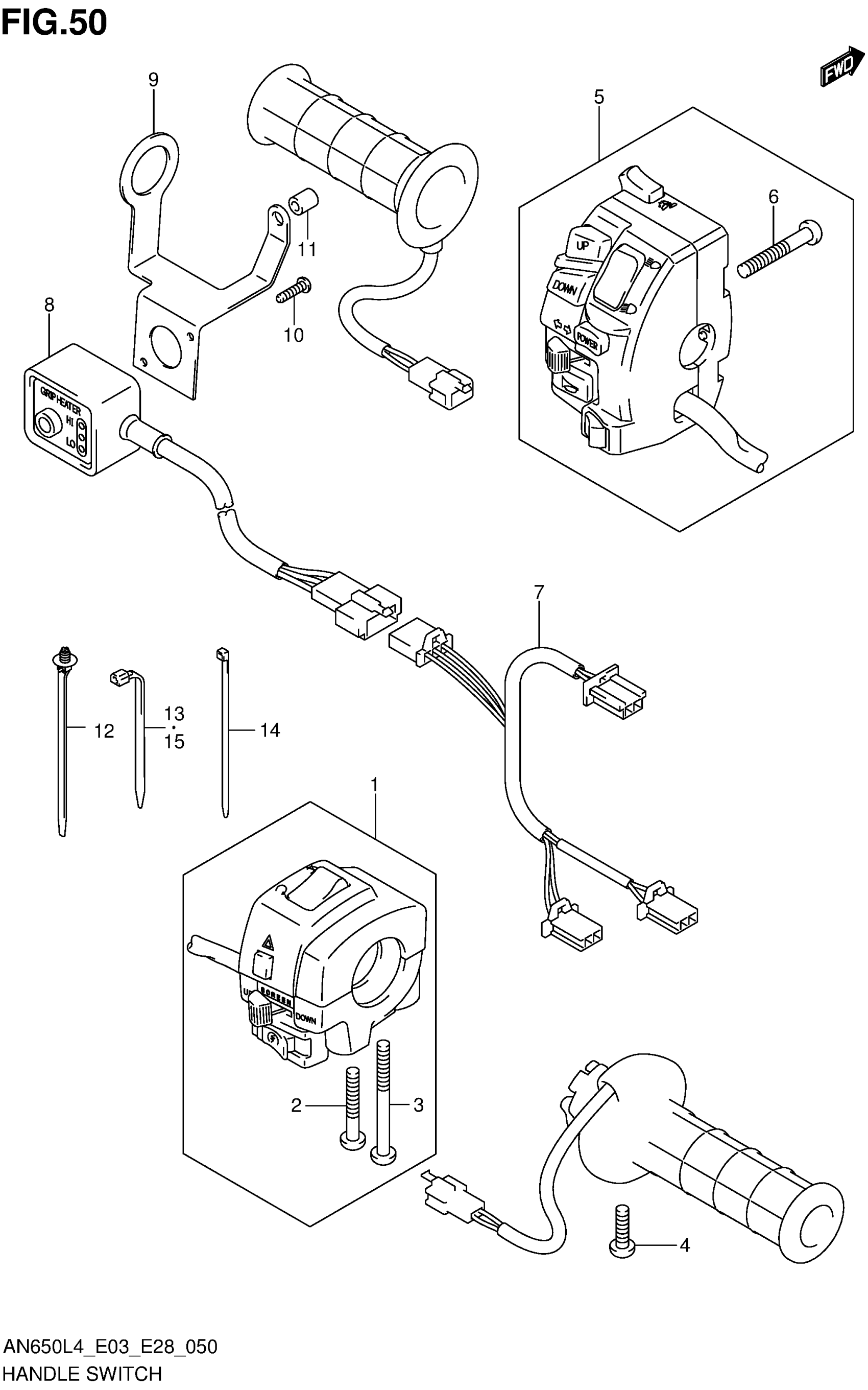

2014 Suzuki AN650L4 Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH ASSY, HANDLE, RH

37200-26J00

1
Out of stock

2

SCREW

02112-0530B

1
Out of stock

3

SCREW

02112-0550B

1
Out of stock

4

SCREW

02112-0510A

1
Out of stock

5

SWITCH ASSY,HAN This part replaces 37400-26J00.

37400-26J01

1
Out of stock

6

SCREW

02112-0535B

2
Out of stock

7

WIRE, GRIP HEATER LEAD

36855-26J00

1
Out of stock

8

SWITCH ASSY, GRIP HEATER

37270-05H10

1
Out of stock

9

BRACKET, GRIP HEATER

37271-26J00

1
Out of stock

10

SCREW (5X14)

37272-36G00

2
Out of stock

11

SPACER (5.5X9.5X10)

09180-05301

1
Out of stock

12

CLAMP (L:154)

09407-17403

1
Out of stock

13

CLAMP (L:190)

09407-19401

2
Out of stock

14

CLAMP (L:145)

09407-14407

2
Out of stock

15

CLAMP (L:165)

09407-18402

1
Out of stock
