2013 Suzuki AN650L3 Meter Panel Diagram

← All diagrams

Find the part on the Meter Panel diagram for your 2013 Suzuki AN650L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

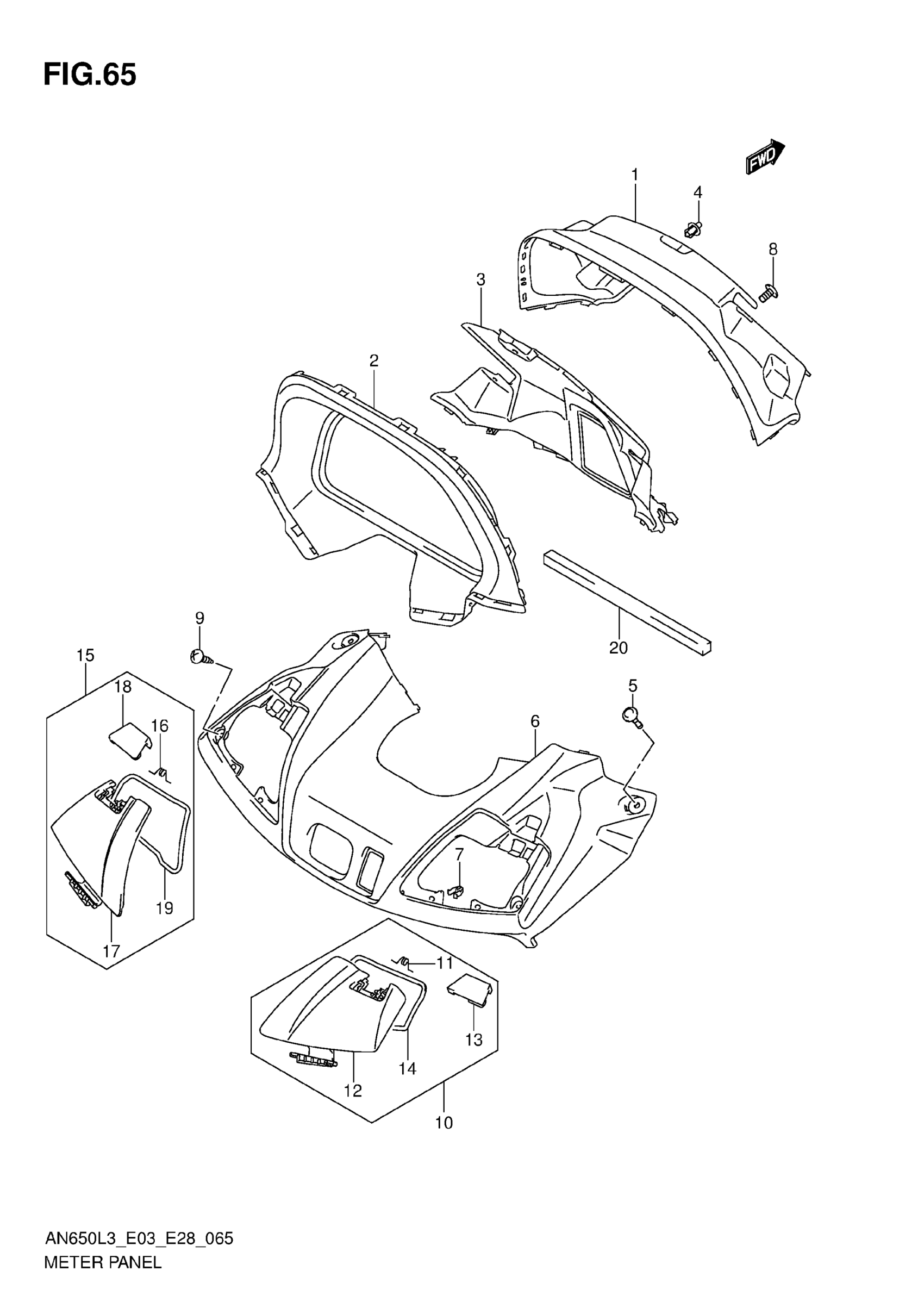

2013 Suzuki AN650L3 Meter Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

4

CLIP, METER PANEL FRONT

94479-35F00

1
Out of stock

5

CLIP, FRONT PANEL

94479-35F00

2
Out of stock

6

1

$92.19

In stock

7

CLIP

09409-08326

2
Out of stock

8

SCREW

02142-0512B

4
Out of stock

9

SCREW

03541-0516B

2
Out of stock

11

SPRING

73843-81J00

1

$4.22

In stock

14

1

$5.98

In stock

16

SPRING

73843-81J00

1

$4.22

In stock

18

1

$13.05

In stock

19

1

$5.98

In stock

20

CUSHION,METER PANEL

94425-26J00

1

$6.47

In stock
