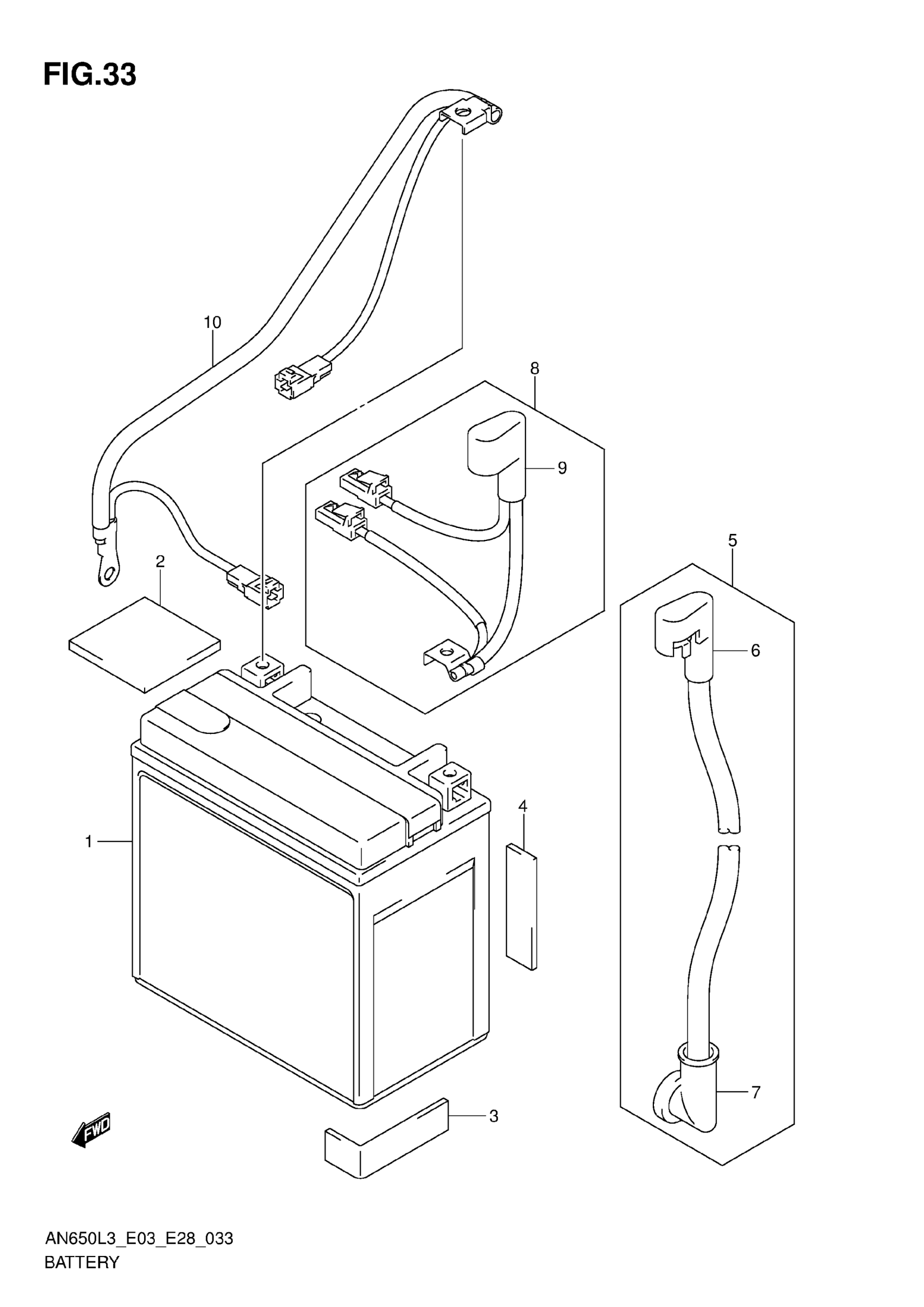

Suzuki AN650L3 (2013) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY This part replaces 33610-31D11.

33610-38F02

$131.02

2

PROTECTOR (50X50X5.0)

33652-20C00

$2.80

3

PROTECTOR (20X90X4)

33652-49000

$4.05

4

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.17

5

WIRE, STARTER

33810-10G00

Unavailable

6

CAP, STARTER RELAY

31861-29F00

$8.62

7

CAP, STARTER MOTOR

31861-48B10

$7.40

8

WIRE,BATTERY PL This part replaces 33820-10G00.

33820-10G01

$49.52

9

CAP,STARTER RELAY

31861-29F10

$8.28

10

WIRE, BATTERY MINUS

33860-10G00

Unavailable
