Description

Price

1

SHAFT, DRIVE

24131-10G00

$176.65

2

GEAR, FINAL DRIVEN (NT:40)

24371-10G00

$166.82

3

BUSH, FINAL DRIVEN GEAR

24632-10G00

$49.27

4

DOG, OUTPUT CAM

24922-26J00

$61.10

5

STOPPER, CAM SPRING

24923-10G00

$53.58

6

HOUSING, OIL SEAL

24943-10G00

Unavailable

7

BOLT (8X20)

09106-08161

$4.85

8

NUT | RH This part replaces 09140-16001.

09140-16005

$4.08

9

WASHER (16X29X4)

09160-16029

$6.90

10

BEARING (25X52X13) | LH

09262-25136

$35.65

11

BEARING (30X55X13) | RH

09262-30113

$54.08

12

O RING (D:2.4,ID:44.7)

09280-45004

$4.00

13

SEAL,OIL (25X45X5)

09283-25076

$9.33

14

SPRING

09440-45004

$31.42

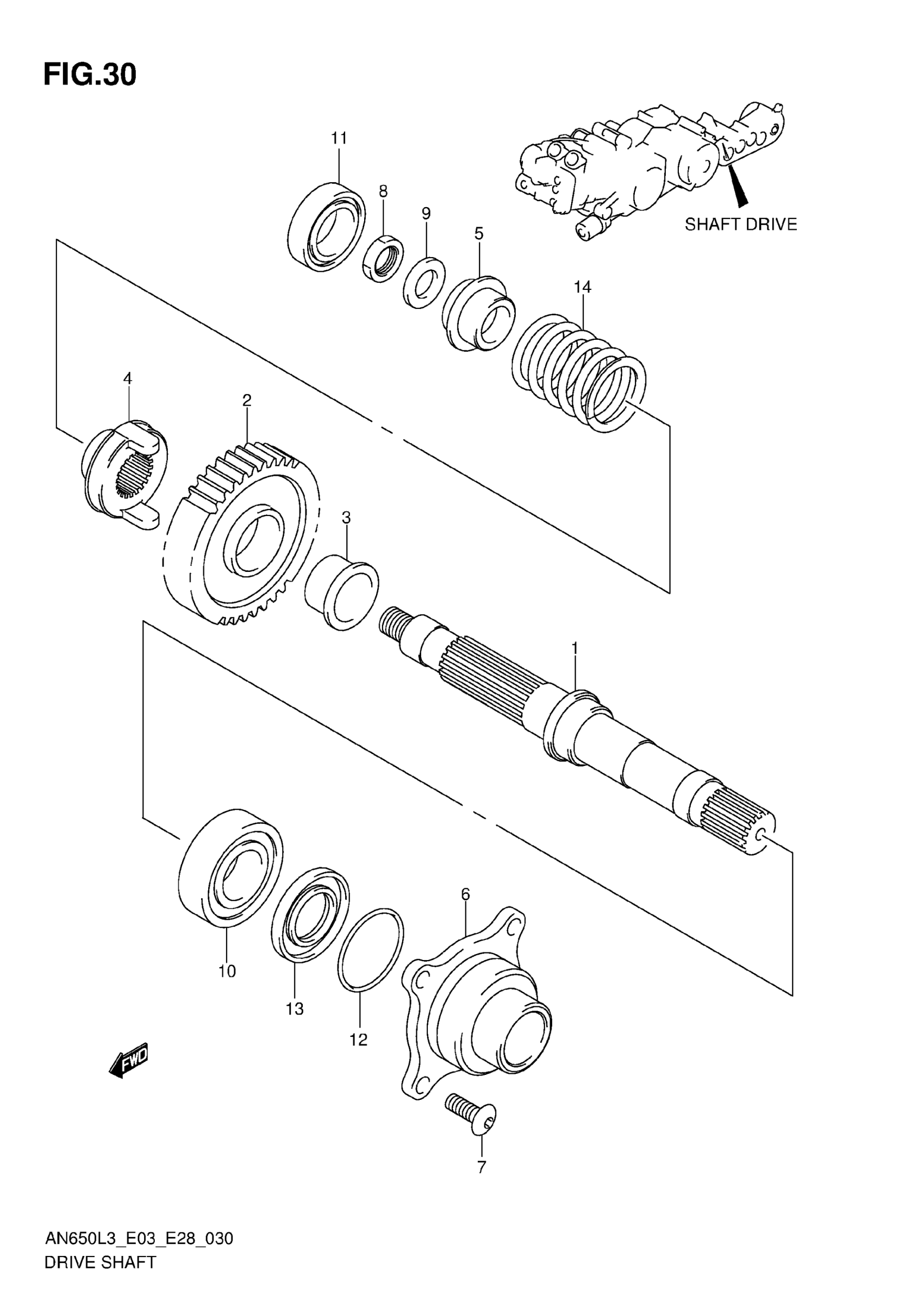

Suzuki AN650L3 (2013) DRIVE SHAFT Diagram
