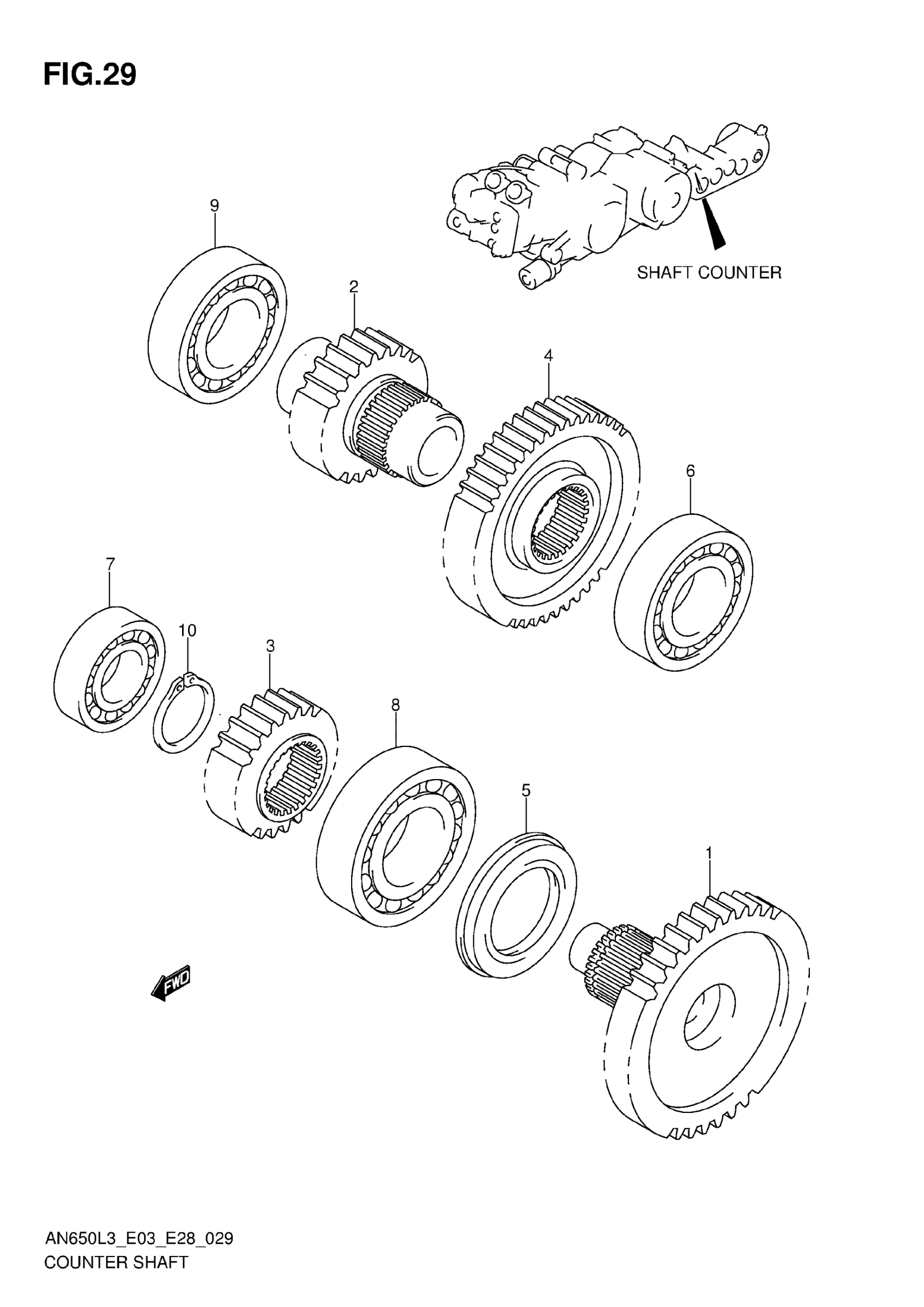

Suzuki AN650L3 (2013) COUNTER SHAFT Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:39)

24121-10G30

$210.63

2

SHAFT, IDLE (NT:22)

24151-10G20

$133.88

3

GEAR, IDLER DRIVE (NT:25)

24331-10G00

$90.72

4

GEAR, IDLER DRIVEN (NT:43)

24381-10G00

$132.63

5

OIL SEAL (35X52X6) | LH

09283-35015

$21.07

6

BEARING (30X55X13) | LH

09262-30113

$54.08

7

BEARING (20X47X14) | RH

09262-20069

$21.00

8

BEARING | LH

08113-62060

$37.23

9

BEARING | RH

08113-62060

$37.23

10

CIRCLIP

08331-31289

$2.28
