2012 Suzuki AN650AL2 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2012 Suzuki AN650AL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

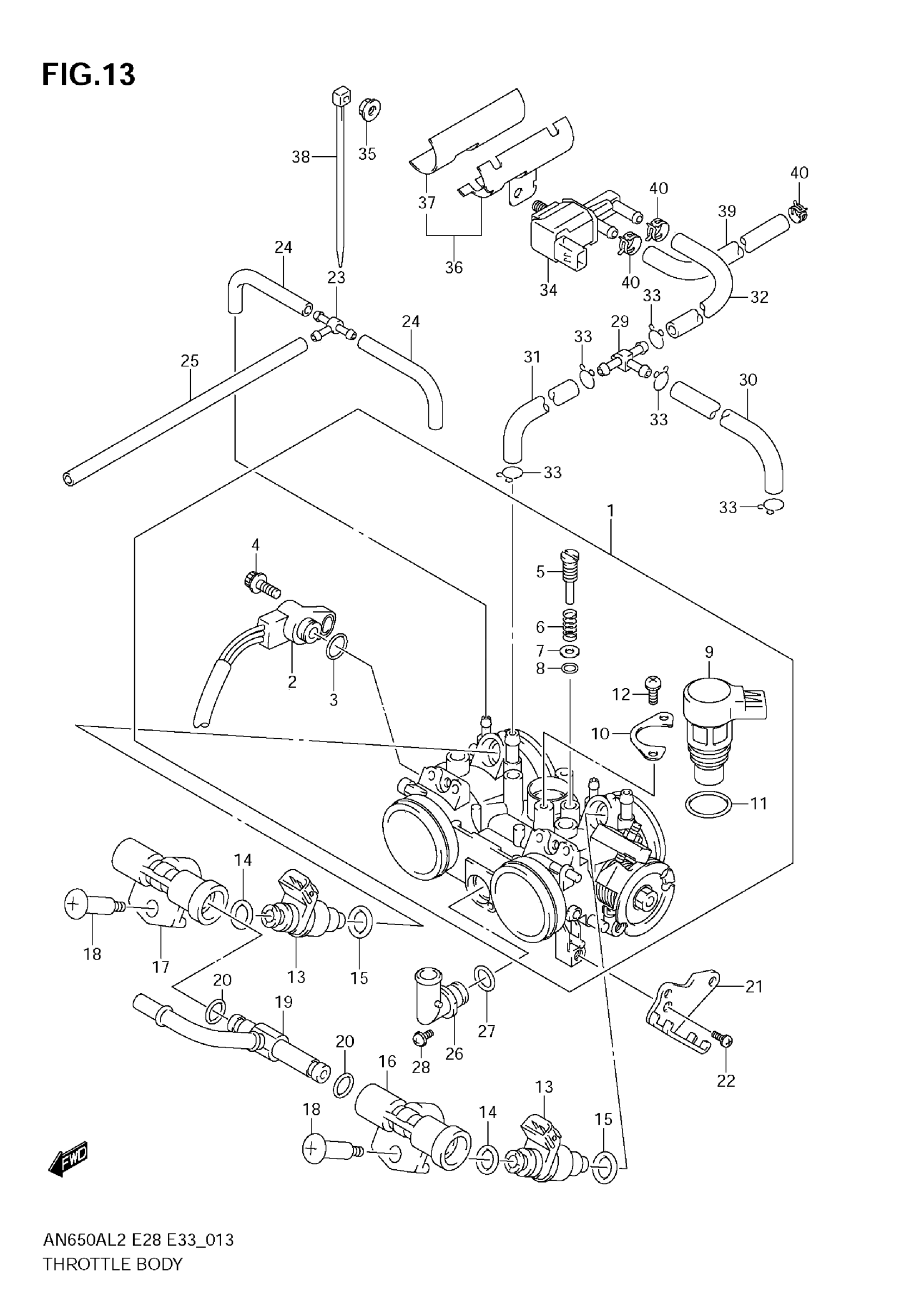

2012 Suzuki AN650AL2 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY

13406-10G33

1
Out of stock

3

O RING

13575-40F00

1
Out of stock

4

BOLT

13613-10G00

1
Out of stock

5

ADJUST SCREW

13269-18G00

2

$13.35

In stock

6

SPRING

13271-43E00

2
Out of stock

7

WASHER

13291-26E00

2

$2.92

In stock

8

O RING

13295-26E00

2

$4.33

In stock

9

1

$403.72

In stock

10

PLATE, ISC VALVE

13428-15H00

1
Out of stock

11

O RING

18119-05H00

1

$4.47

In stock

12

SCREW

13605-15H00

2

$8.03

In stock

13

INJECTOR ASSY

15710-10G00

2

$357.70

In stock

14

O-RING

15721-10G00

2

$9.06

In stock

15

O RING

15722-10G00

2

$11.22

In stock

16

JOINT

13471-10G00

1
Out of stock

17

JOINT

13471-10G10

1
Out of stock

18

SCREW

13601-35F00

2

$7.47

In stock

19

FUEL PIPE

13473-10G00

1
Out of stock

20

.O-RING

15721-24F00

2
Out of stock

21

PLATE

13565-10G20

1
Out of stock

22

SCREW

13601-10G00

2
Out of stock

23

JOINT

13471-24F30

1

$18.60

In stock

24

HOSE (3X7X65)

13683-10G00

2
Out of stock

25

HOSE (3X7X220)

13683-10G10

1
Out of stock

26

JOINT

13455-10G00

1
Out of stock

27

O RING

13278-10G10

1
Out of stock

28

SCREW

13602-10G00

1
Out of stock

29

JOINT

13685-36E50

1
Out of stock

30

HOSE

13698-10G00

1
Out of stock

31

HOSE

13698-10G10

1
Out of stock

32

HOSE

13698-10G30

1
Out of stock

33

CLIP

13693-24F00

5

$3.62

In stock

34

VALVE ASSY, CANISTER PURGE

18117-52G00

1
Out of stock

35

NUT

08316-1006A

1
Out of stock

36

BRACKET

18119-10G00

—
Out of stock

37

1

$7.23

In stock

38

CLAMP (L:145)

09407-14407

2
Out of stock

39

HOSE

13680-10G10

1
Out of stock

40

CLIP (ID:10.5,H:8)

09401-10409

3
Out of stock
