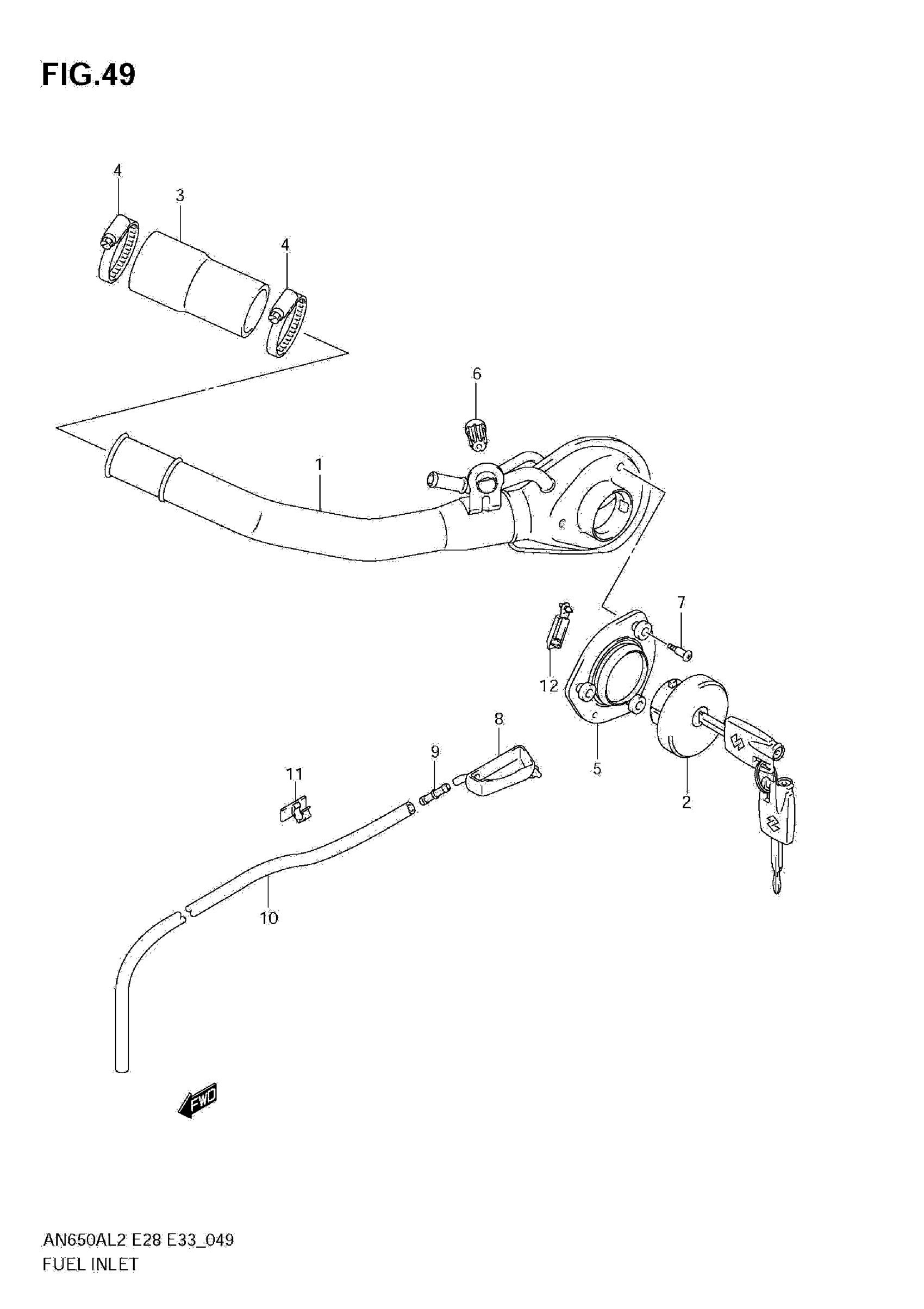

Suzuki AN650AL2 (2012) FUEL INLET Diagram

#

Description
Price

1

INLET, FUEL TANK

44190-10G20

Unavailable

2

CAP SET,FUEL TA This part replaces 44200-10841.

44200-10843

$136.80

3

HOSE, FUEL INLET

44422-10G00

Unavailable

4

CLAMP

09402-50512

Unavailable

5

PACKING, INLET

44261-10G10

Unavailable

6

CUSHION

44264-10G00

Unavailable

7

SCREW (5X16.4)

09139-05078

$3.19

8

TRAY,FUEL TANK This part replaces 44262-10G10.

44262-10G11

$18.90

9

JOINT

09367-08001

$4.53

10

HOSE, DRAIN

44423-10G00

Unavailable

11

CLAMP

09403-10318

Unavailable

12

CUSHION, INLET

44263-10G10

$19.50
