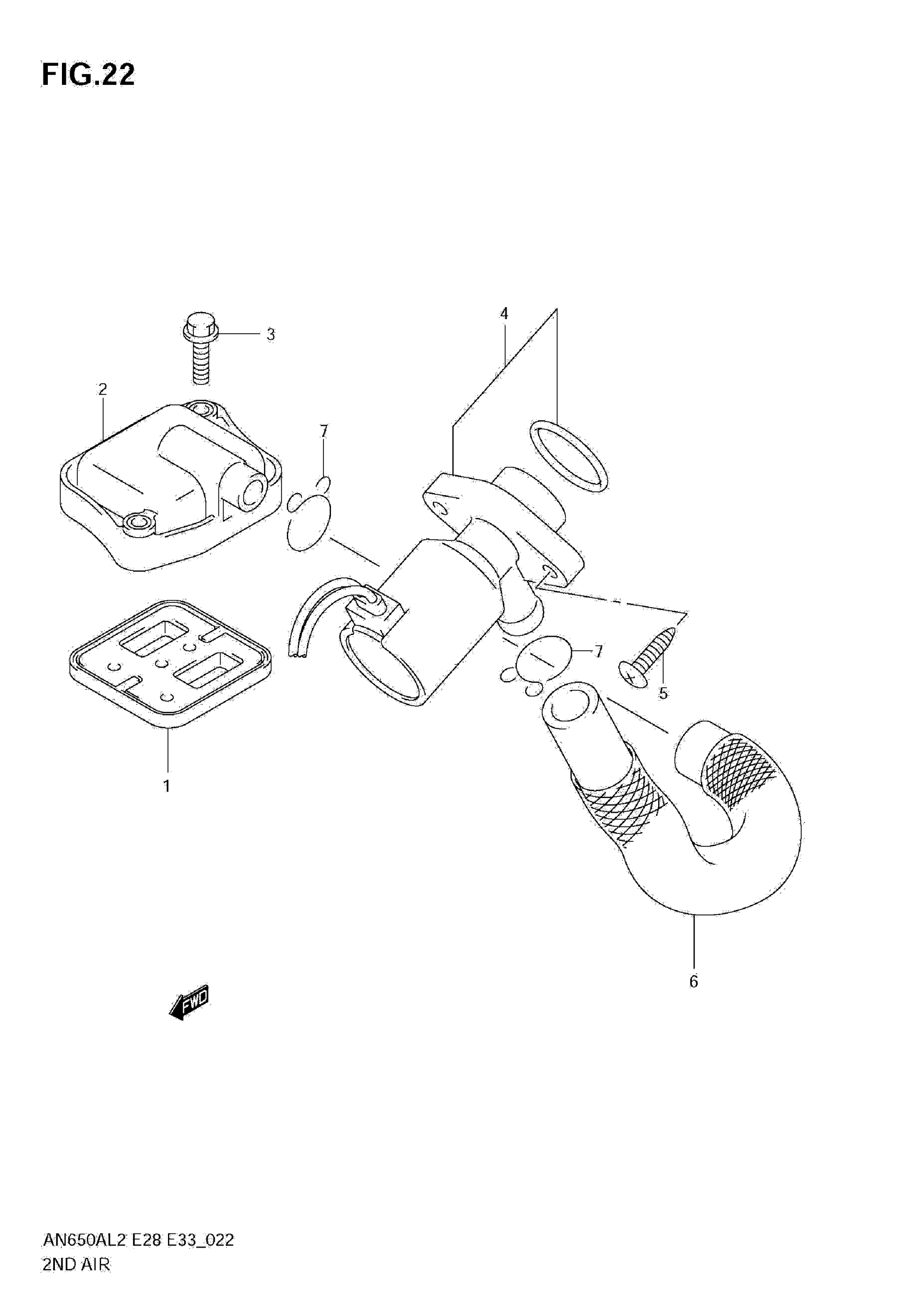

Suzuki AN650AL2 (2012) 2ND AIR Diagram

#

Description

Price

1

VALVE ASSY,2ND AIR REED

18450-35F11

$112.45

2

COVER, REED VALVE

18531-35F10

Unavailable

3

BOLT (6X20)

09103-06201

$2.54

4

VALVE ASSY, AIR CUT

18510-10G00

Unavailable

5

SCREW

03541-0520B

$2.87

6

HOSE, 2ND AIR VALVE

18461-10G00

Unavailable

7

CLIP

09401-15101

$2.28
