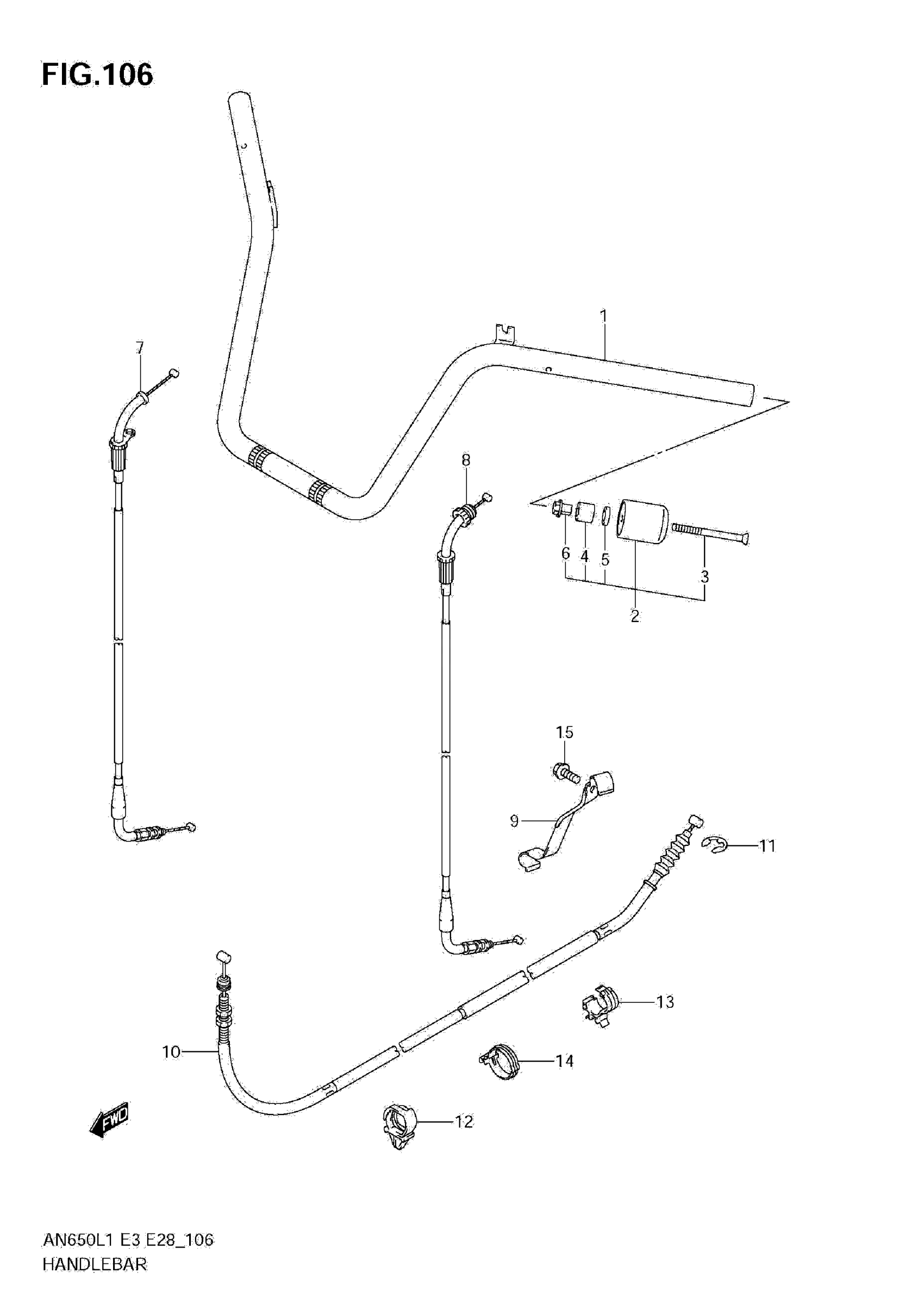

Suzuki AN650AL1 (2011) HANDLEBAR (AN650A L1 E28) Diagram

HANDLEBAR

56110-10G40

$259.40

BALANCER SET,HA This part replaces 56200-10881.

56200-10883

$55.50

SCREW

02122-06707

$4.18

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.44

WASHER (6.5X16X4)

09160-06131

$2.53

NUT

56273-10G10

$7.92

CABLE ASSY,THRO This part replaces 58300-10G00.

58300-10G01

$28.00

CABLE ASSY,THRO This part replaces 58300-10G10.

58300-10G11

$29.28

GUIDE, BRAKE LOCK CABLE

58621-10G00

Unavailable

CABLE BRAKE LOCK

58810-10G10

Unavailable

STOPPER,BRAKE LOCK CABLE

58822-10G00

Unavailable

CLAMP

09403-14307

Unavailable

CLAMP

09403-15405

$2.97

CLAMP

09403-17402

Unavailable

BOLT

01547-0612A

$2.01
