2011 Suzuki AN650AL1 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2011 Suzuki AN650AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

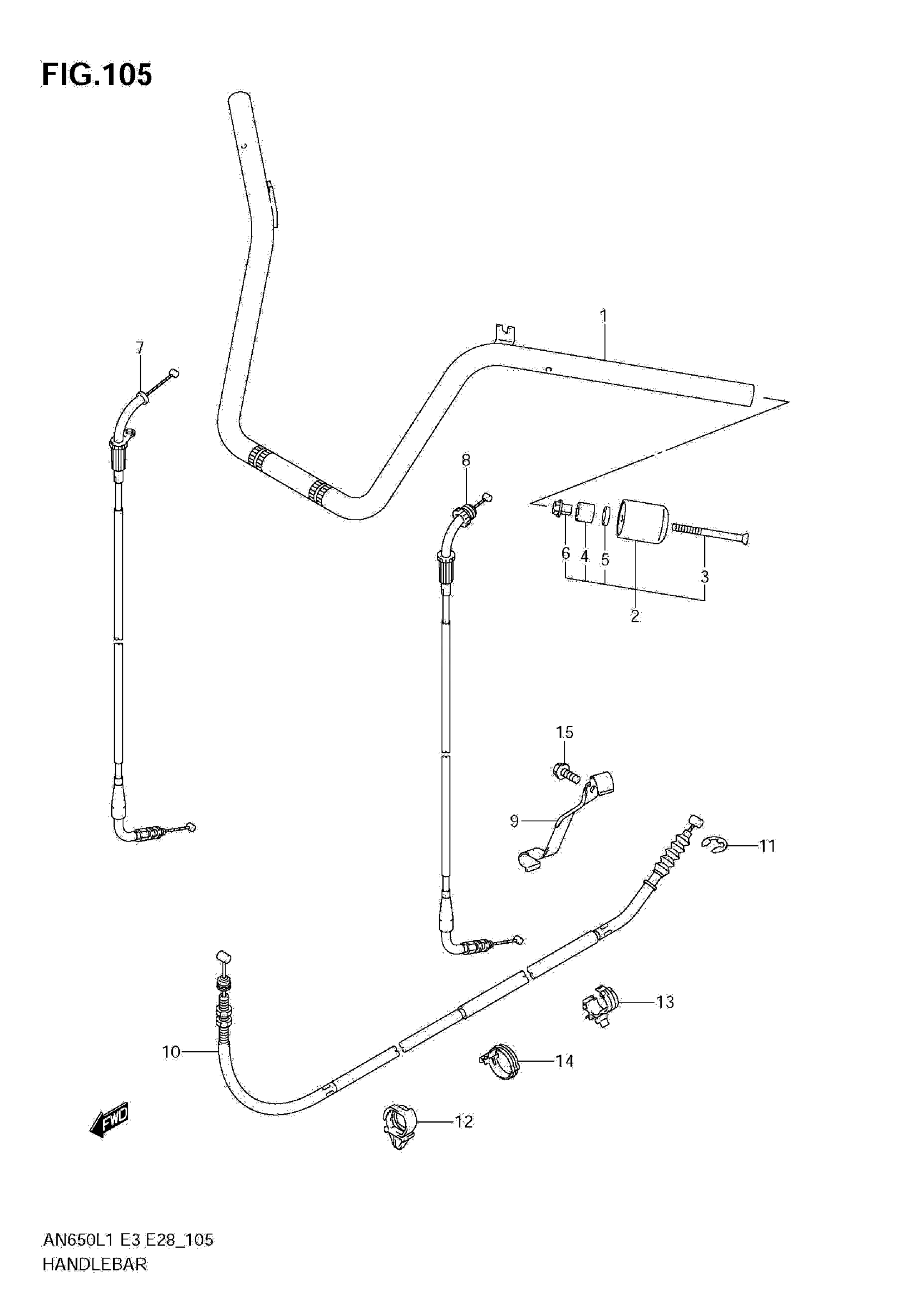

2011 Suzuki AN650AL1 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

56110-10G40

1
Out of stock

2

BALANCER SET,HN This part replaces 56200-10872.

56200-10873

2
Out of stock

3

SCREW

02122-0670B

2
Out of stock

4

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

2
Out of stock

5

WASHER (6.5X16X4)

09160-06131

2
Out of stock

6

NUT

56273-10G10

2
Out of stock

7

CABLE ASSY,THRO This part replaces 58300-10G00.

58300-10G01

1
Out of stock

8

CABLE ASSY,THRO This part replaces 58300-10G10.

58300-10G11

1
Out of stock

9

GUIDE, BRAKE LOCK CABLE

58621-10G00

1
Out of stock

10

CABLE BRAKE LOCK

58810-10G10

1
Out of stock

11

STOPPER,BRAKE LOCK CABLE

58822-10G00

1
Out of stock

12

CLAMP

09403-14307

2
Out of stock

13

CLAMP

09403-15405

1
Out of stock

14

CLAMP

09403-17402

2
Out of stock

15

BOLT

01547-0612A

1
Out of stock
