2011 Suzuki AN650AL1 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2011 Suzuki AN650AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

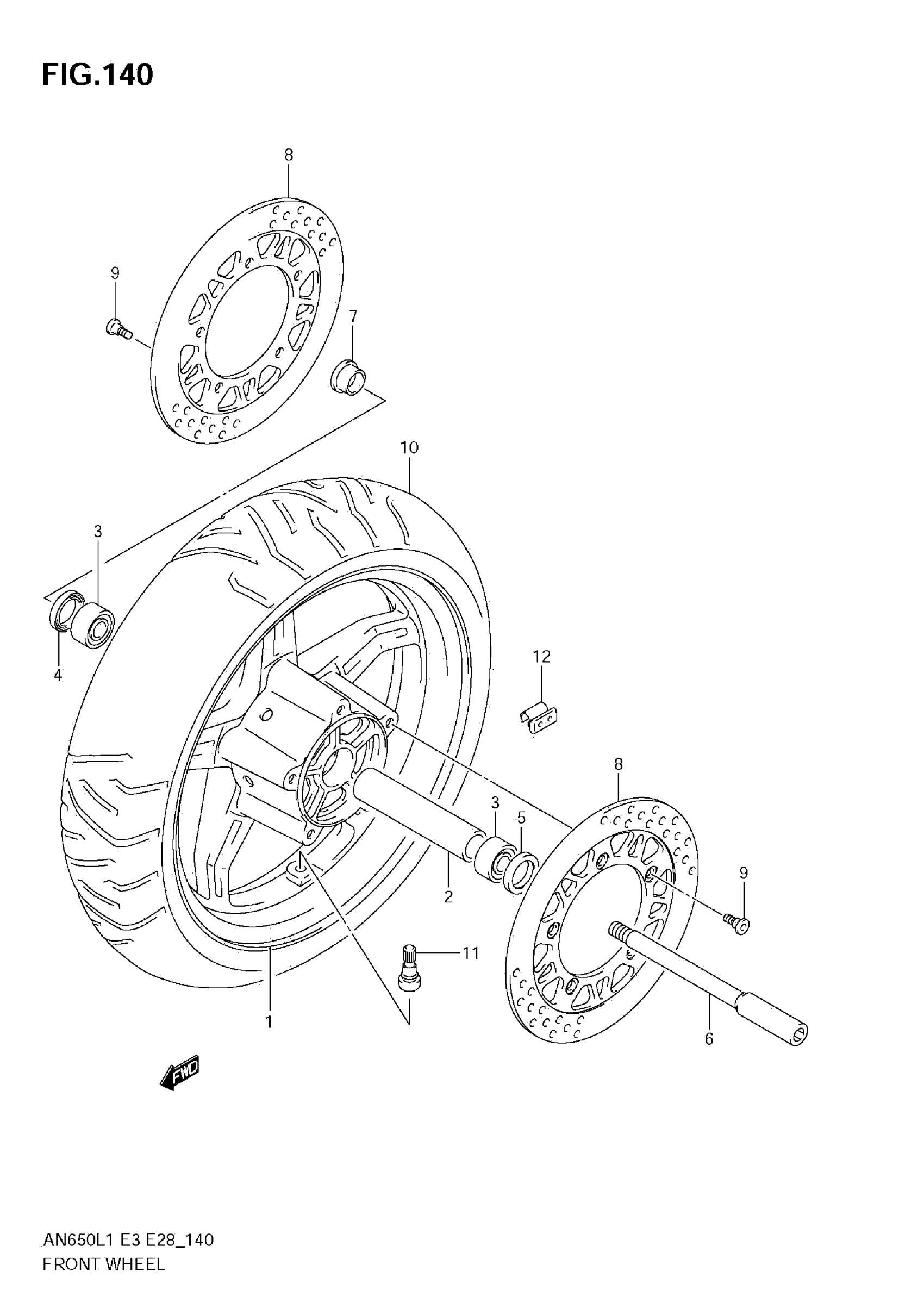

2011 Suzuki AN650AL1 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT (15M/CXMT3.50) (SILVER)

54111-10G10-YD8

1
Out of stock

2

SPACER, FONT HUB BEARING

54731-10G00

1
Out of stock

3

BEARING This part replaces 08133-62037.

08133-6203B

2
Out of stock

4

OIL SEAL (24X40X7)

09282-24004

1
Out of stock

5

OIL SEAL (22X40X7)

09285-22004

1
Out of stock

6

AXLE, FRONT

54711-10G10

1
Out of stock

7

SPACER, FR AXLE RH

54751-10G01

1
Out of stock

8

DISC, FRONT BRAKE RH

59211-10G10

2
Out of stock

9

BOLT (8X21)

09106-08160

10
Out of stock

10

TIRE,FRONT,120/ | TH01 F RADIAL This part replaces 55110-10G00.

55110-10G01

1
Out of stock

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

12

BALANCER, WHEEL NO.1

43222-73H10

1
Out of stock

12

BALANCER, WHEEL NO.2

43224-73H10

1
Out of stock

12

BALANCER, WHEEL NO.3

43226-73H10

1
Out of stock
