2009 Suzuki AN650 Helmet BOX Diagram

← All diagrams

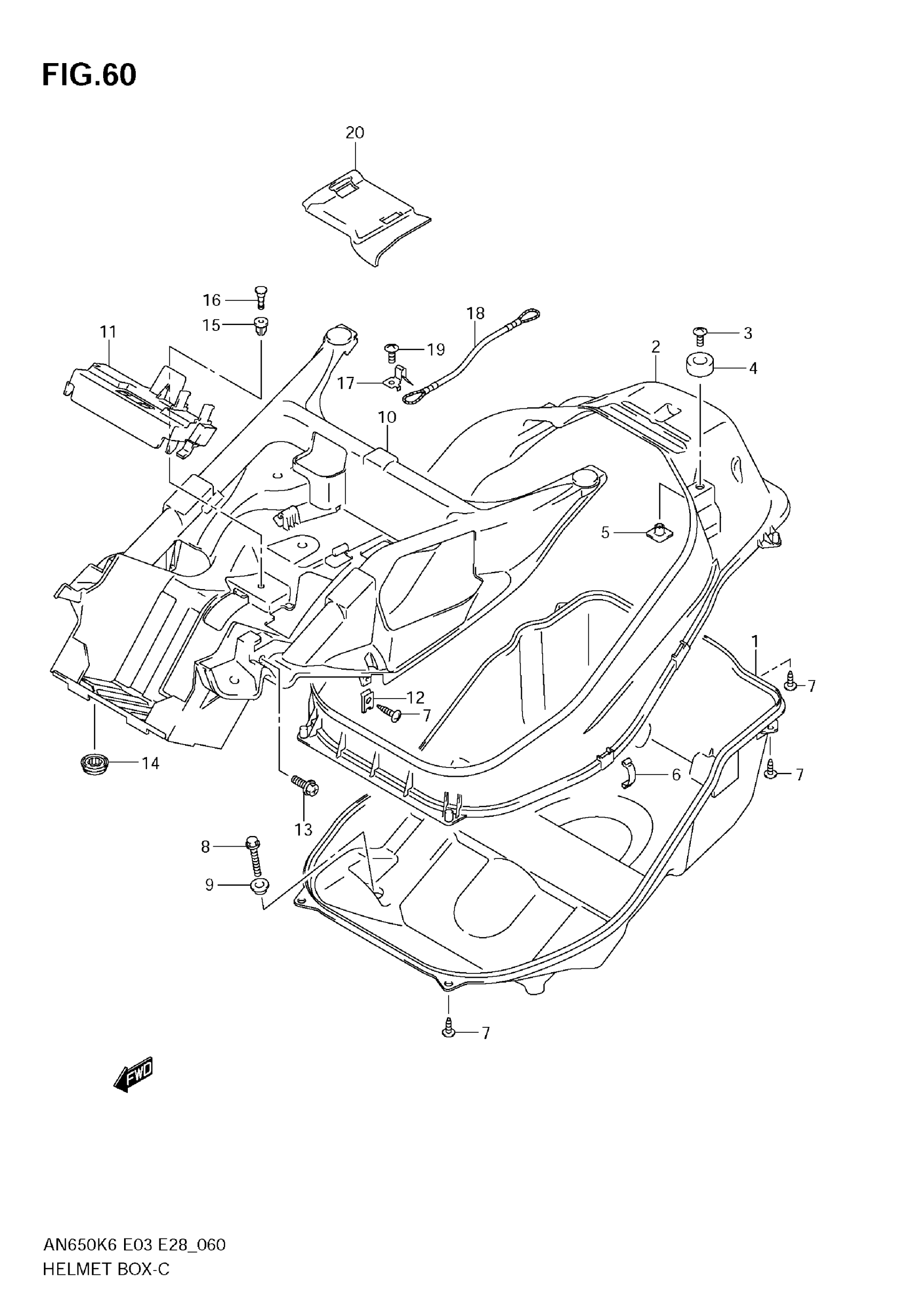

Find the part on the Helmet BOX diagram for your 2009 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki AN650 Helmet BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX, HELMET LOWER

92211-10G10

1
Out of stock

2

BOX, HELMET UPPER

92221-10G10

1
Out of stock

3

SCREW, UPPER

09125-06069

2
Out of stock

4

CUSHION, UPPER

45149-04A00

2
Out of stock

5

NUT, UPPER

92222-10G01

2
Out of stock

6

CLAMP,HELMET BOX

92214-14G00

4
Out of stock

7

SCREW

03541-0516A

8
Out of stock

8

BOLT, REAR

01547-0640B

2
Out of stock

9

WASHER

09169-06073

2
Out of stock

10

COVER, BOX FRONT NO.1 (GRAY)

92212-10G00-Y0J

1
Out of stock

11

COVER, BOX FRONT NO.2

92213-10G01

1
Out of stock

12

NUT

09148-05038

2
Out of stock

13

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

2
Out of stock

14

CUSHION

09320-09046

2
Out of stock

15

GROMMET

09409-08329

1
Out of stock

16

PLUNGER

09409-08330

1
Out of stock

17

STOPPER, HELMET HOLDER

95723-10G00

1
Out of stock

18

CABLE,HELMET LO This part replaces 95740-10G00.

95740-10G01

1
Out of stock

19

SCREW

02142-0612B

1
Out of stock

20

COVER, HELMET BOX FRONT, NO.3

92215-10G00

1
Out of stock
