2009 Suzuki AN650 Front LEG Shield Diagram

← All diagrams

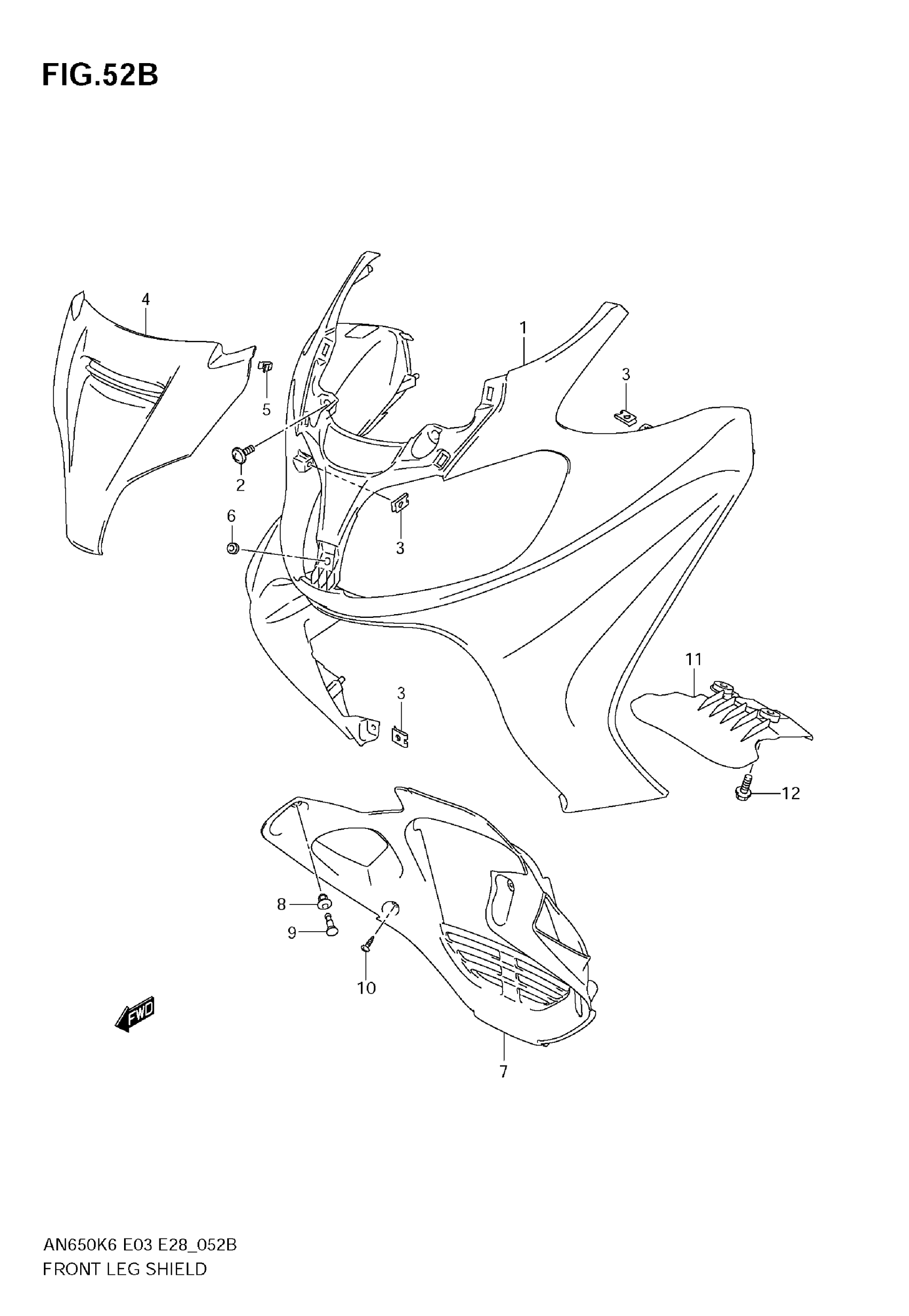

Find the part on the Front LEG Shield diagram for your 2009 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki AN650 Front LEG Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIELD, LEG FRONT (GRAY) | AN650A

48111-10G00-YHG

1
Out of stock

1

SHIELD, LEG FRONT (BLACK)

48111-10G00-YAY

1
Out of stock

1

SHIELD, LEG FRONT (WHITE)

48111-10G00-YPA

1
Out of stock

2

SCREW

09136-06004

4
Out of stock

3

NUT

09148-05038

6
Out of stock

4

COVER, FRONT LEG (GRAY) | AN650A

48130-10GA0-YHG

1
Out of stock

4

COVER, FRONT LEG (BLACK)

48130-10GA0-YAY

1
Out of stock

4

COVER, FRONT LEG (WHITE) | Includes Item(s) 5

48130-10GA0-YPA

1
Out of stock

5

CLIP

09409-08326

4
Out of stock

6

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

1
Out of stock

7

SHIELD, LEG LOWER (GRAY)

48137-10G01-Y0J

1
Out of stock

8

GROMMET

09409-08329

2
Out of stock

9

PLUNGER

09409-08330

2
Out of stock

10

SCREW

09132-05053

2
Out of stock

11

COVER, LOWER BRACKET

94458-10G00

1
Out of stock

12

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

2
Out of stock
← Front LEG Shield Helmet BOX →

More Body & Frame diagrams
