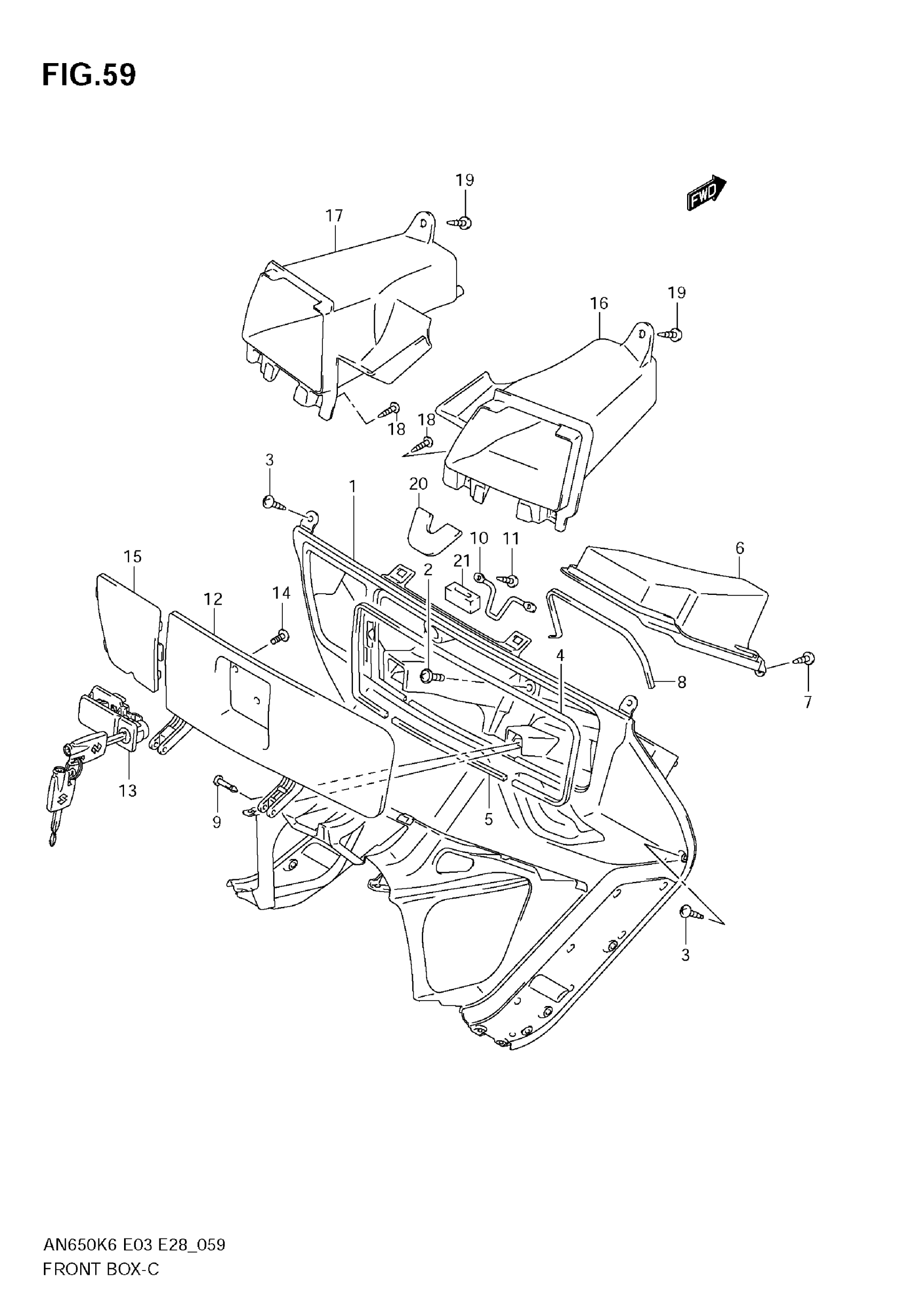

Suzuki AN650 (2009) FRONT BOX Diagram

#

Description
Price

1

BOX, FRONT (GRAY) | AN650 E28

92111-10G00-Y0J

$312.25

1

BOX, FRONT (GRAY) | AN650A E28

92110-10GA0-Y0J

$419.70

1

BOX, FRONT (GRAY) | AN650 E3,E33

92111-10G10-Y0J

$312.25

1

BOX, FRONT (GRAY) | AN650A E3,E33

92110-10GB0-Y0J

$444.97

2

SCREW | AN650K6

09136-06061

$3.08

2

SCREW | AN650K7/K8

09136-06157

$3.08

2

SCREW | AN650A

09139-06120

$2.80

3

SCREW

09132-05053

$2.26

4

CUSHION, NO.1 This part replaces 92114-10G00.

92114-14F01

Unavailable

5

CUSHION, NO.1 This part replaces 92115-10G00.

92114-14F01

Unavailable

6

COVER, BOX INNER

92112-10G00

Unavailable

7

SCREW

09132-05053

$2.26

8

CUSHION, INNER This part replaces 92113-10G00.

92116-05H00

$4.38

9

PIN, FRONT BOX

73423-50G00

$5.75

10

STRIKER, FRONT BOX

92171-10G01

$12.35

11

SCREW

03541-0516A

$1.37

12

LID, FRONT BOX (GRAY)

92120-10G00-Y0J

$98.98

13

LOCK SET, FRONT BOX

92100-10841

$185.10

14

SCREW

02142-0512B

$1.90

15

LID, MAINTENANCE (GRAY)

92161-10G00-Y0J

$20.40

16

BOX, FRONT PANEL RH

92141-10G00

$49.73

17

BOX, FRONT PANEL LH

92151-10G00

$49.73

18

SCREW

03541-0516A

$1.37

19

SCREW

03541-0616B

$3.00

20

CUSHION, NO.4

92116-10G00

$9.08

21

CUSHION, NO.3

92117-10G00

Unavailable
