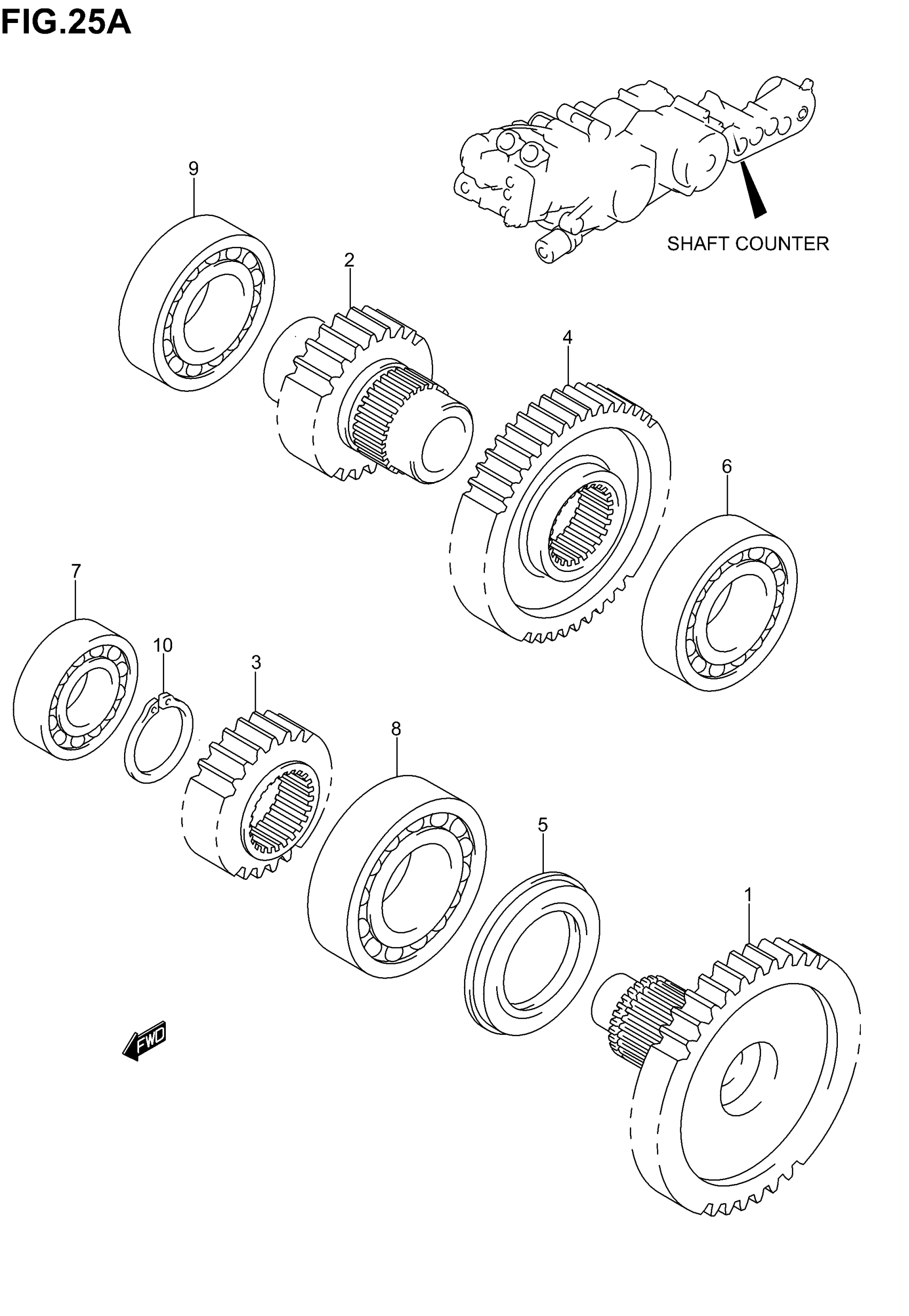

Suzuki AN650 (2005) SHAFT COUNTER/IDLER (MODEL K5) Diagram

#

Description

Price

1

SHAFT, COUNTER | NT:39

24121-10G20

Unavailable

2

SHAFT, IDLE | NT:22

24151-10G20

$133.88

3

GEAR, IDLER DRIVE | NT:25

24331-10G00

$90.72

4

GEAR, IDLER DRIVEN | NT:43

24381-10G00

$132.63

5

SEAL, COUNTER SHAFT LH

09283-35015

$21.07

6

BEARING, IDLE SHAFT LH | 30X55X13

09262-30113

$54.08

7

BEARING, COUNTER SHAFT RH | 20X47X14

09262-20069

$21.64

8

BEARING, COUNTER SHAFT LH

08113-62060

$37.23

9

BEARING, IDLE SHAFT RH

08113-62060

$37.23

10

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.28
