2005 Suzuki AN650 CVT Diagram

← All diagrams

Find the part on the CVT diagram for your 2005 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

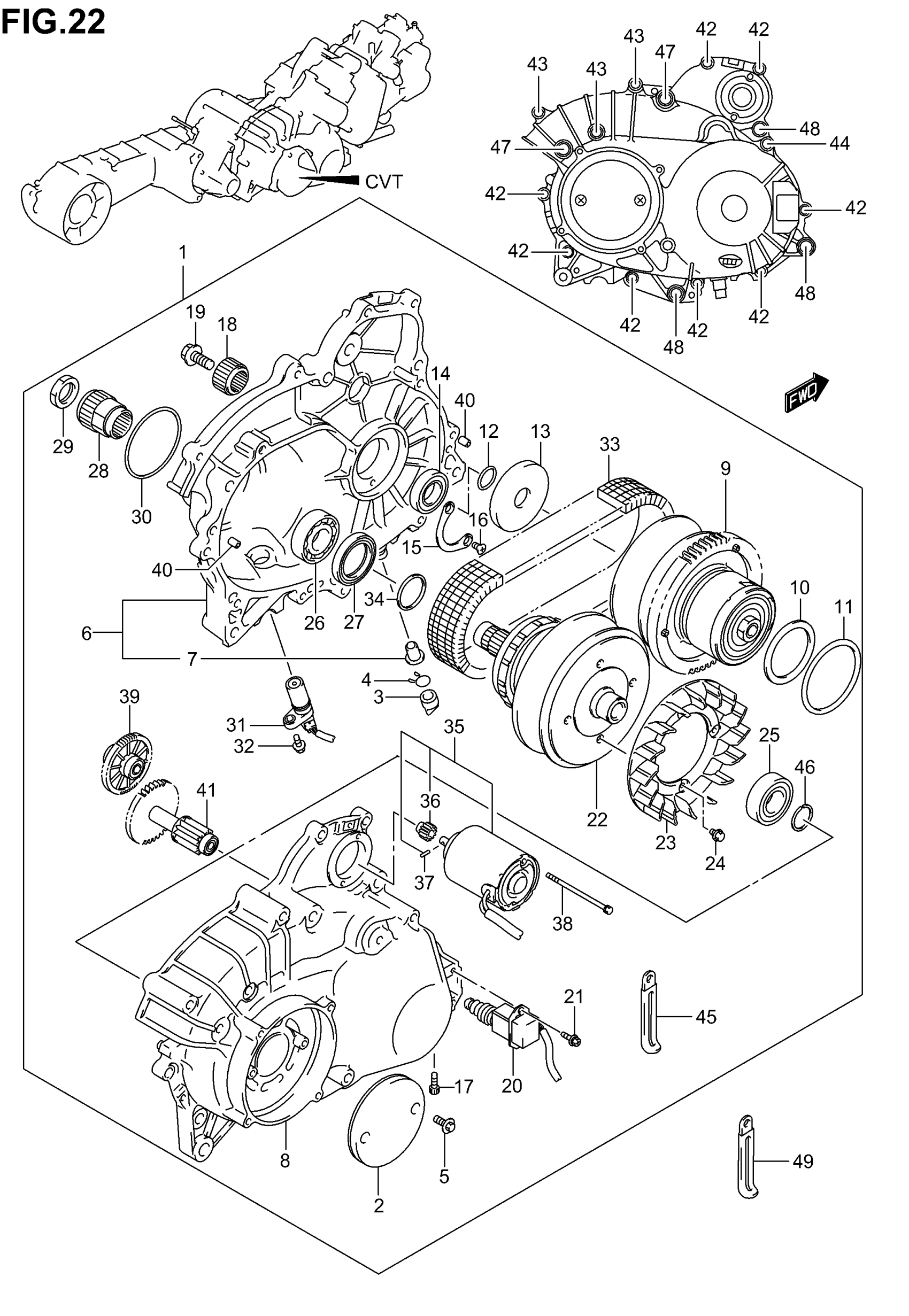

2005 Suzuki AN650 CVT Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNIT SET,CVT | Includes Item(s) 2 - 46 This part replaces 21000-10820.

21000-10822

1
Out of stock

2

FILTER, BELT COOLING

11388-10G00

1
Out of stock

3

CAP,DRAIN This part replaces 13872-00110.

13872-00111

1
Out of stock

4

CLIP

09401-13409

1
Out of stock

5

BOLT (6X20)

09116-06182

2
Out of stock

6

CASE, CVT

21910-10G01

1
Out of stock

7

UNION, CVT DRAIN

09364-12002

1
Out of stock

8

COVER, CVT

21921-10G00

1
Out of stock

9

.PULLEY ASSY, PRIMARY This part replaces 21071-10G10.

21070-10811

1
Out of stock

10

SHIM SET, PRIMARY PULLEY ADJUST | T:0.12/0.32/0.52/0.72/0.92 /1.12/1.32

21746-10G00

1
Out of stock

11

O RING, PRI PULLEY RH

21747-10G00

1
Out of stock

12

O RING, PRI FIXED LH | D:1.20,ID:20.8

09280-21014

1
Out of stock

13

SEAL, PRIMARY PULLEY DUST

21757-10G00

1
Out of stock

14

BEARING, PRI PULLEY LH

21751-10G00

1
Out of stock

15

RETAINER, PRI BEARING LH

21753-10G00

1
Out of stock

16

SCREW, PULLEY BEARING

21754-10G00

2
Out of stock

17

BOLT,SHAFT STOP This part replaces 21748-10G00.

21748-10G10

1
Out of stock

18

ADAPTER,PRI FIX This part replaces 21755-10GA0.

21755-10GA1

1
Out of stock

19

BOLT, PRI FIXED

21756-10G00

1
Out of stock

20

PPS ASSY This part replaces 26142-78G90.

26142-78G91

1
Out of stock

21

BOLT, POSITION

24833-58E90

2
Out of stock

22

PULLEY ASSY, SECONDARY

21081-10G00

1
Out of stock

23

FAN, SEC FIXED PULLEY

21815-10G00

1
Out of stock

24

BOLT, FAN PULLEY

21816-10G00

4
Out of stock

25

BEARING, SECONDARY RH

21817-10G00

1
Out of stock

26

BEARING, SECONDARY LH

21851-10G00

1
Out of stock

27

SEAL, SECONDARY PULLEY

21852-10G10

1
Out of stock

28

ADAPTER, SECONDARY FIXED

21855-10G00

1
Out of stock

29

NUT, SEC ADAPTER

21856-10G00

1
Out of stock

30

O RING, CVT CASE

21916-10G00

1
Out of stock

31

SENSOR ASSY, SEC

21860-10G00

1
Out of stock

32

BOLT, SEC SENSOR

24832-78G90

1
Out of stock

33

V BELT, DRIVE

27601-10G00

1
Out of stock

34

COLLAR, SEC PULLEY ADPT

21853-10G00

1
Out of stock

35

MOTOR ASSY,CVT This part replaces 21076-10G01.

21076-10G02

1
Out of stock

36

GEAR, ACTR DRIVE

25112-78G90

1
Out of stock

37

PIN, ACTR DRIVE

25113-58E90

1
Out of stock

38

BOLT, MOTOR

24834-58E90

2
Out of stock

39

GEAR ASSY, ACTUATOR COUNTER

21077-10G00

1
Out of stock

40

PIN, CVT COVER

21925-10G00

2
Out of stock

41

GEAR ASSY, ACTR IDLER

21078-10G00

1
Out of stock

42

BOLT, CVT COVER (L:30)

21931-10G00

8
Out of stock

43

BOLT, CVT COVER (L:70)

21932-10G00

3
Out of stock

44

BOLT, CVT COVER (L:90)

21933-10G00

1
Out of stock

45

1

$2.42

In stock

46

RING SEC PULLEY

21818-10G00

1
Out of stock

47

BOLT, CVT UNIT (L:140)

09103-10119

2
Out of stock

48

BOLT, CVT UNIT (L:110)

09103-10318

3
Out of stock

49

CLAMP (L:45)

09404-06429

3
Out of stock
