2005 Suzuki AN650 Final Gear Diagram

← All diagrams

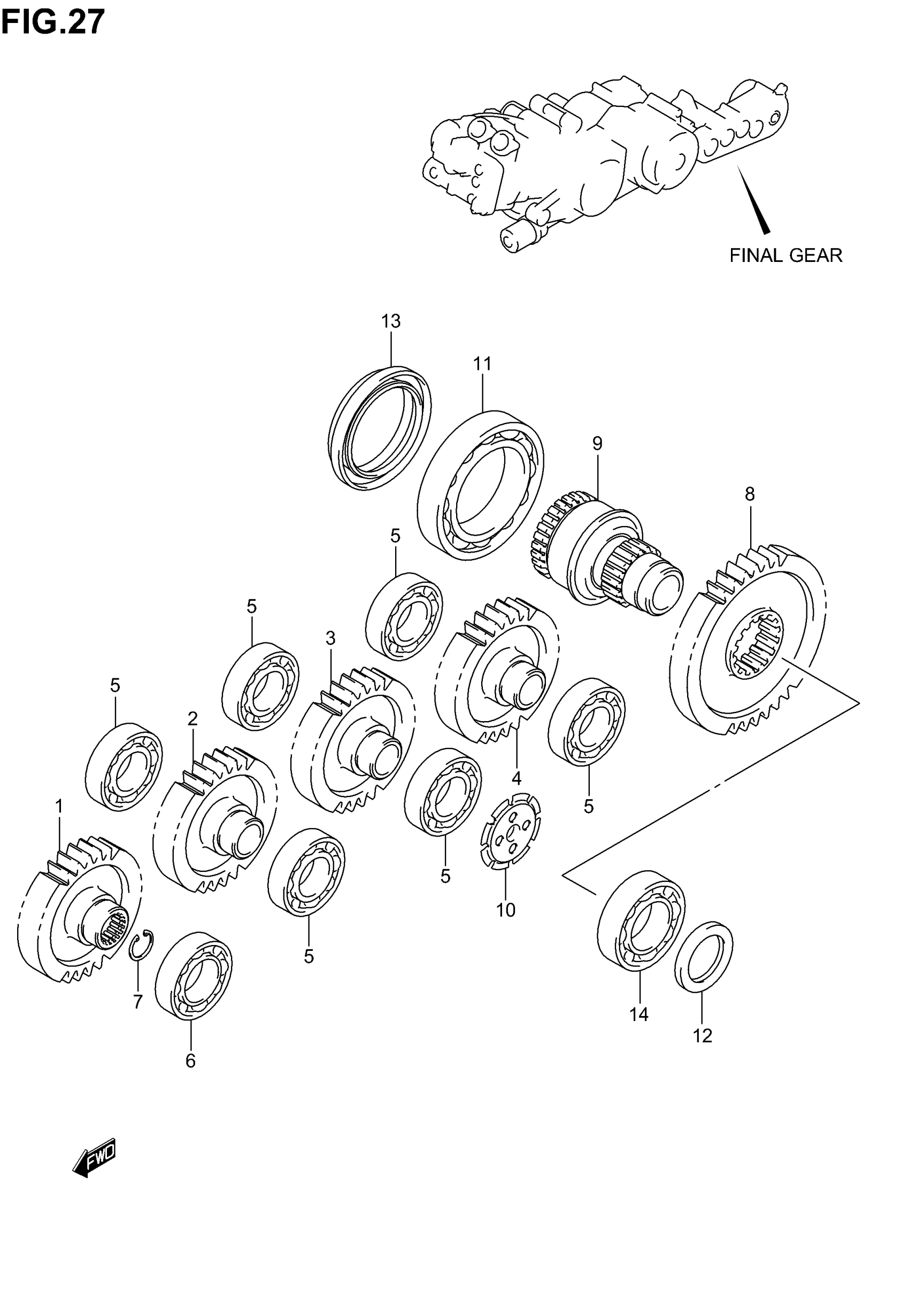

Find the part on the Final Gear diagram for your 2005 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki AN650 Final Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, FINAL DRIVE | NT:31 This part replaces 27311-10G00.

27311-10G20

1
Out of stock

2

GEAR, IDLE NO.1 | NT:32

27351-10G00

1
Out of stock

3

GEAR, IDLE NO.2 | NT:31

27352-10G00

1
Out of stock

4

GEAR, IDLE NO.3 | NT:34

27353-10G00

1
Out of stock

5

BEARING, FINAL DRIVE GEAR

08113-62060

6
Out of stock

6

BEARING, FINAL DRIVE LH | 35X62X14

09262-35070

1
Out of stock

7

CIRCLIP This part replaces 08331-41226.

08331-41229

1
Out of stock

8

GEAR, FINAL DRIVEN | NT:49 This part replaces 27321-10G00.

27321-10G20

1
Out of stock

9

HUB, FINAL DRIVEN GEAR

27322-10G00

1
Out of stock

10

PLATE, IDLE GEAR NO.2 LH

27328-10G00

1
Out of stock

11

1

$153.17

In stock

12

SEAL, FINAL DRIVEN GEAR OIL LH | 38X54X6

09283-38009

1
Out of stock

13

SEAL, FINAL DRIVEN GEAR OIL RH | 70X96X16

09289-70001

1
Out of stock

14

1

$47.33

In stock
