2005 Suzuki AN650 Combination Lamp Diagram

← All diagrams

Find the part on the Combination Lamp diagram for your 2005 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

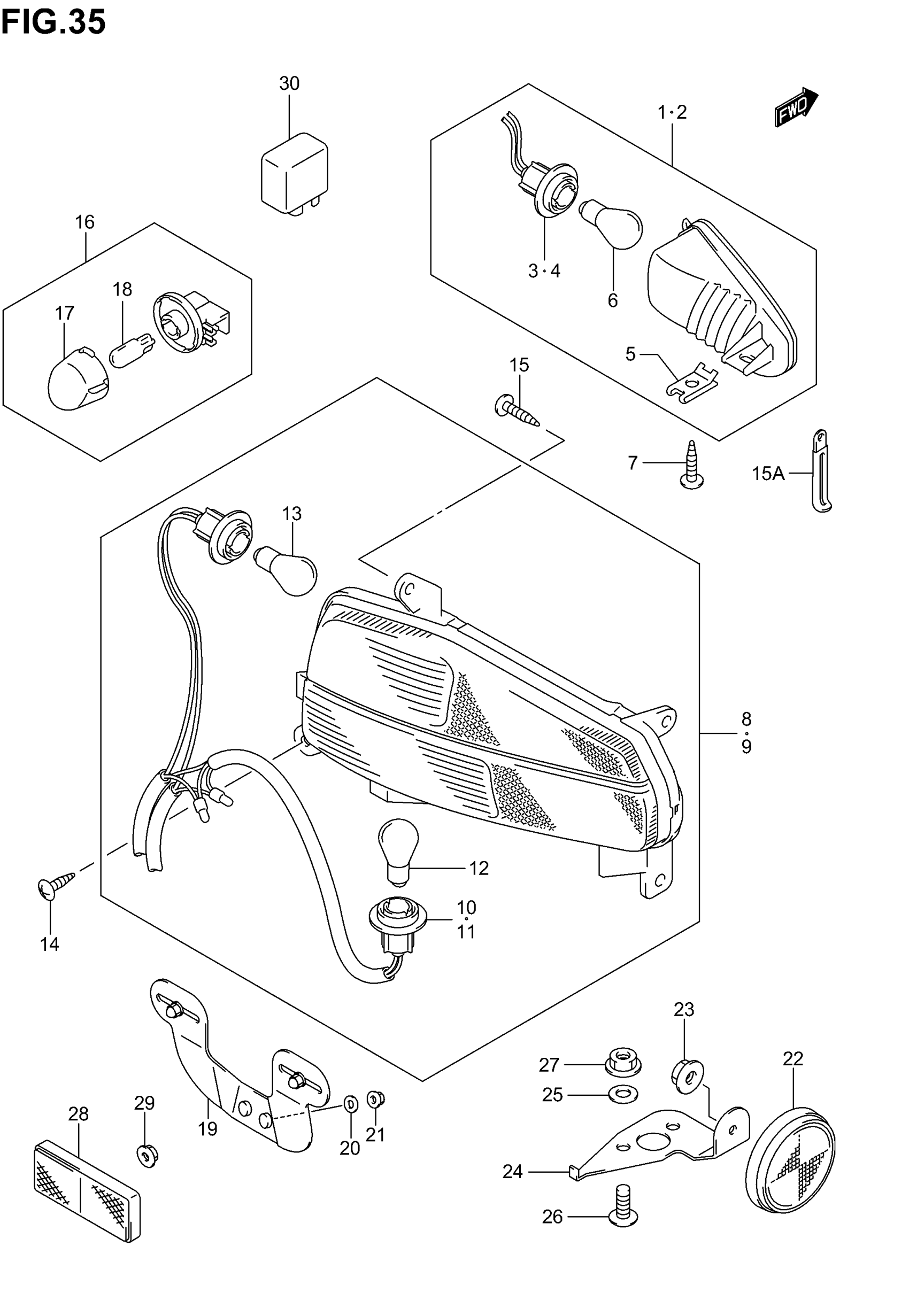

2005 Suzuki AN650 Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, FR TURN SIGNAL RH

35601-10G30

1
Out of stock

2

LAMP ASSY, FR TURN SIGNAL LH | Includes Item(s) 3 - 6

35602-10G30

1
Out of stock

3

SOCKET, RH

35618-10G30

1
Out of stock

4

SOCKET, LH

35638-10G30

1
Out of stock

5

NUT

09148-05020

2
Out of stock

6

BULB (12V,21W)

09471-12045

2
Out of stock

7

SCREW This part replaces 03541-05253.

03541-0525B

2
Out of stock

8

LAMP ASSY, REAR COMB RH

35603-10G30

1
Out of stock

9

LAMP ASSY, REAR COMB LH | Includes Item(s) 10 - 13

35604-10G30

1
Out of stock

10

CORD ASSY RH

35658-10G30

1
Out of stock

11

CORD ASSY LH

35678-10G30

1
Out of stock

12

BULB (12V,21/5W) | FOR TAIL/STOP This part replaces 09471-12083.

09471-12128

2
Out of stock

13

BULB (12V,21W) | FOR TURN

09471-12045

2
Out of stock

14

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock

15

SCREW This part replaces 03541-05163.

03541-0516A

6
Out of stock

15A

CLAMP (L:45)

09404-06429

2
Out of stock

16

LAMP ASSY, LICENSE | Includes Item(s) 17 - 18

35910-14F01

1
Out of stock

17

LENS

35912-14F11

1
Out of stock

18

.BULB (12V5W)

09471-12216

1
Out of stock

19

BRACKET, LICENSE PLATE

35927-10G00

1
Out of stock

20

WASHER (6.5X24X1.2) This part replaces 09160-06140.

09160-06114

2
Out of stock

21

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

22

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

23

NUT This part replaces 08316-10053.

08316-1005A

2
Out of stock

24

BRACKET, REAR SIDE, RH

35975-10G00

1
Out of stock

24

BRACKET, REAR SIDE, LH

35976-10G00

1
Out of stock

25

WASHER (6.5X18X1.6)

09160-06109

2
Out of stock

26

SCREW This part replaces 02142-06163.

02142-0616A

2
Out of stock

27

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

28

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

1
Out of stock

29

NUT This part replaces 08316-10053.

08316-1005A

1
Out of stock

30

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-10G00.

38610-03F01

1
Out of stock
