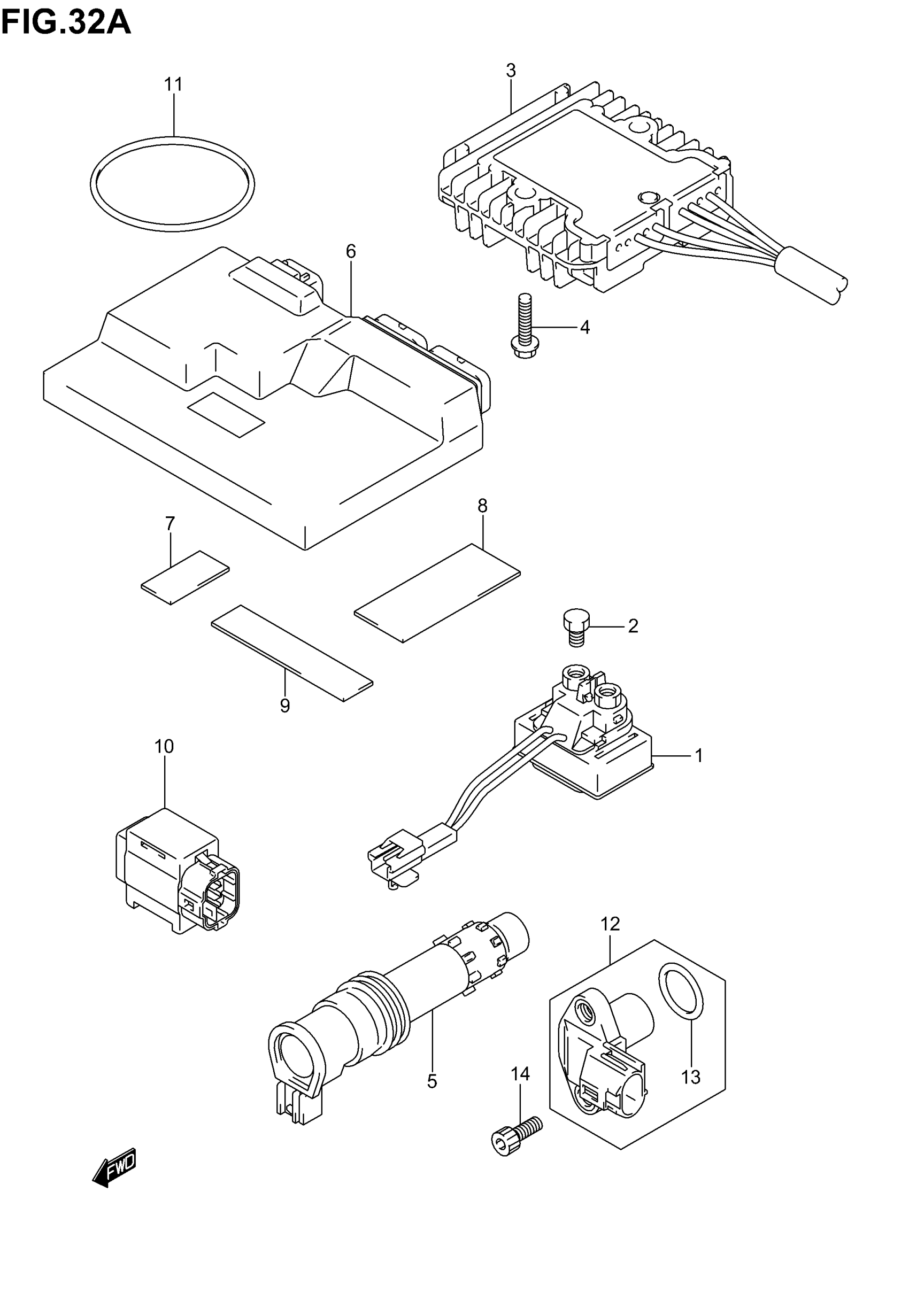

Suzuki AN650 (2005) ELECTRICAL (MODEL K5) Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-10G00.

31800-10G02

$87.07

2

BOLT, STARTING MOTOR (6X8)

09128-06013

$1.28

3

RECTIFIER ASSY This part replaces 32800-10G00.

32800-10G20

$262.97

4

SCREW This part replaces 02162-06253.

02162-0625A

$1.68

5

COIL ASSY,IGNITION This part replaces 33410-35F10.

33410-35F11

$135.79

6

CONTROL UNIT, FI

32920-10GB0

Unavailable

7

CUSHION, CONTROL (80X80X2) | CUT AS REQUIRED PROFILE (20X40)

33652-07D00

$5.41

8

CUSHION, CONTROL (80X80X2) | CUT AS REQUIRED PROFILE (30X80)

33652-07D00

$5.41

9

CUSHION, CONTROL (80X80X2) | CUT AS REQUIRED PROFILE (20X90)

33652-07D00

$5.41

10

SENSOR ASSY,FUEL CUT

33960-06G10

$86.01

11

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

$2.57

12

SENSOR ASSY, CAM POSITION | Includes Item(s) 13

32160-02F10

$167.32

13

PACKING

32161-02F00

$10.97

14

BOLT This part replaces 07130-06163.

07130-0616B

$2.44
