2012 Suzuki AN400ZAL2 Helmet BOX Diagram

← All diagrams

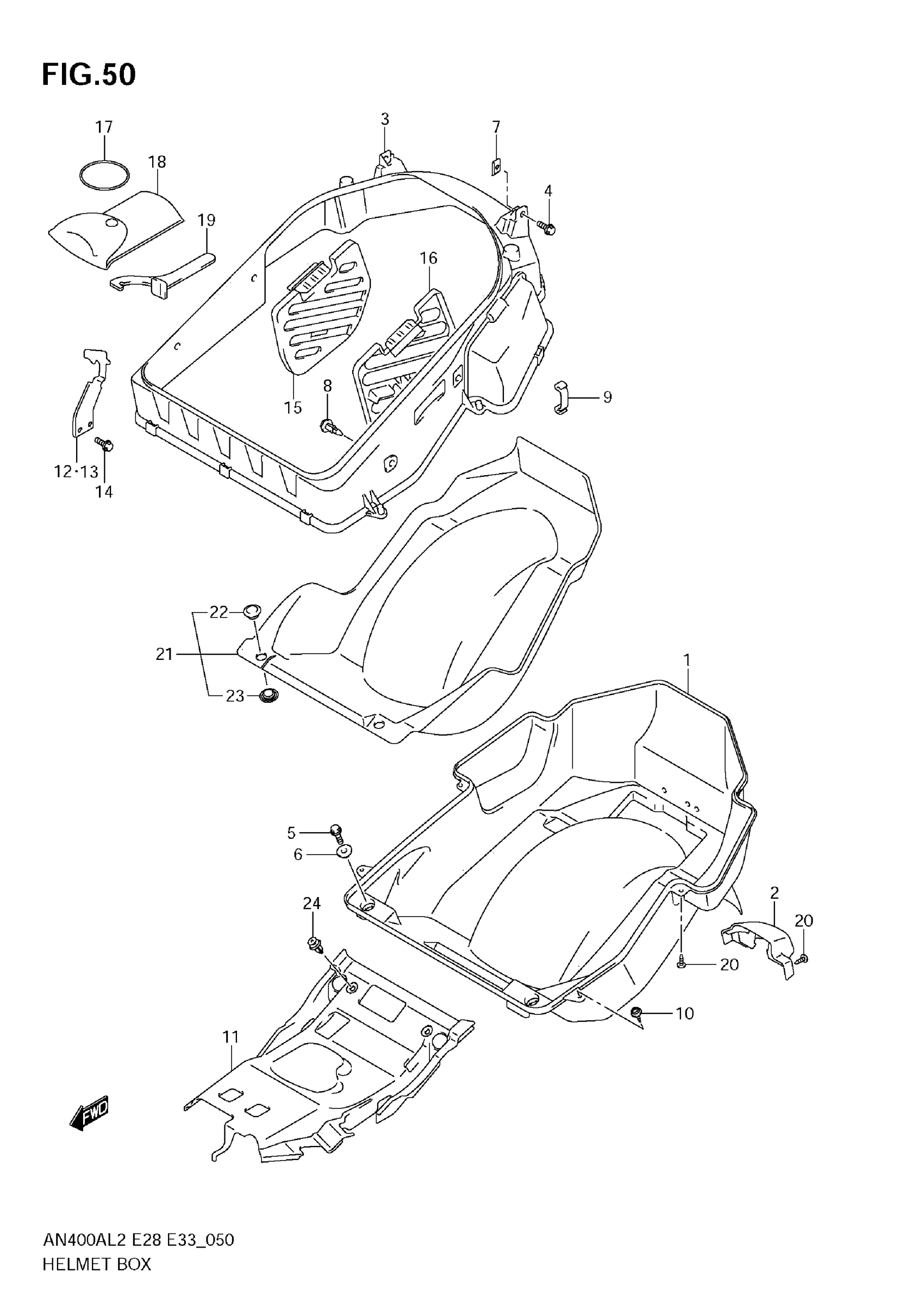

Find the part on the Helmet BOX diagram for your 2012 Suzuki AN400ZAL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki AN400ZAL2 Helmet BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX, HELMET LOWER

92211-05H04

1
Out of stock

2

COVER, HELMET BOX REAR

92215-05H00

1
Out of stock

3

BOX, HELEMT UPPER

92221-05H03

1
Out of stock

4

BOLT

01550-0616A

2
Out of stock

5

BOLT (6X16)

09103-06240

2
Out of stock

6

WASHER

09169-06076

2
Out of stock

7

NUT, FR FENDER

53122-06G00

2
Out of stock

8

CLIP

09409-07333

4
Out of stock

9

CLAMP,HELMET BOX

92214-14G00

9
Out of stock

10

HOOK

09410-00073

2
Out of stock

11

COVER, HELMET BOX FRONT

92212-05H00

1
Out of stock

12

HOLDER,HELMET RH

95720-05H00

1
Out of stock

13

HOLDER, HELMET LH

95730-05H00

1
Out of stock

14

BOLT

01550-0612A

4
Out of stock

15

LID, BOX RH

41551-05H00

1
Out of stock

16

LID, BOX LH

41552-05H00

1
Out of stock

17

O RING (D:3.5,ID:85)

09280-85001

1
Out of stock

18

TOOL ASSY This part replaces 09800-21056.

09800-21100

1
Out of stock

19

CLAMP

09822-00005

1
Out of stock

20

SCREW

03541-0516A

6
Out of stock

21

MAT, HELMET BOX

92210-05H00

1
Out of stock

22

HOOK, MAT NO.1 (GRAY)

75115-80000-5RT

2
Out of stock

23

HOOK, MAT NO.2

75116-80000

2
Out of stock

24

CLIP (BLACK)

09409-06322-5PK

2
Out of stock
