2012 Suzuki AN400ZAL2 Front LEG Shield Diagram

← All diagrams

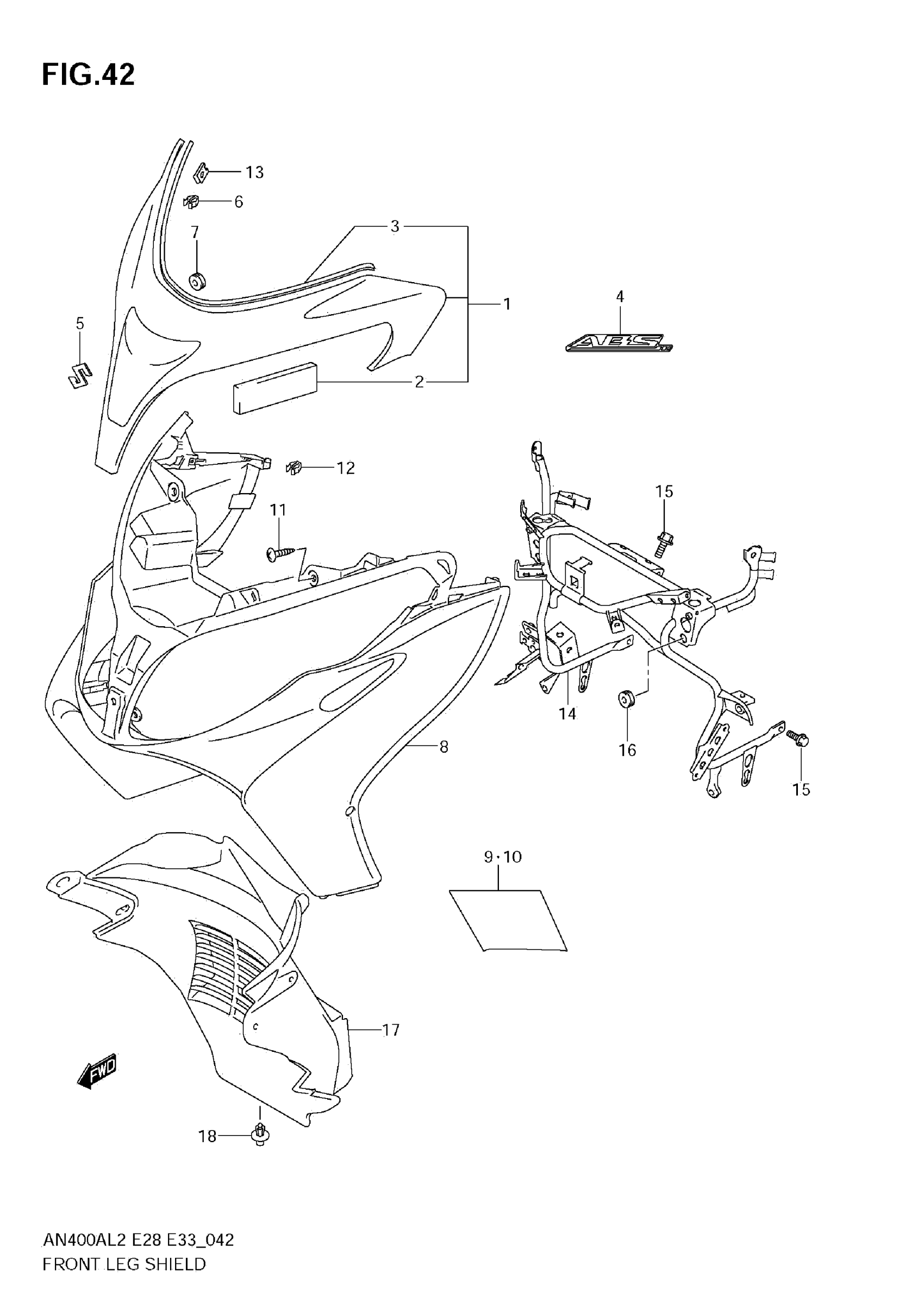

Find the part on the Front LEG Shield diagram for your 2012 Suzuki AN400ZAL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki AN400ZAL2 Front LEG Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRONT LEG (GRAY) | FOR YLF

48130-05H00-YLF

1
Out of stock

1

COVER, FRONT LEG (WHITE) | FOR YPA

48130-05H00-YPA

1
Out of stock

1

COVER, FRONT LEG (BLACK) | FOR YVB

48130-05H00-YVB

1
Out of stock

2

PROTECTOR,20X90X1.0 (20X90X1.

33652-26E00

2
Out of stock

3

MOLDING, FR LEG SHIELD COVER

48132-05H00

—
Out of stock

4

.EMBLEM,ABS (GRAY) This part replaces 68151-44G00-1ZY.

68151-44G01-1ZY

1
Out of stock

5

EMBLEM, "S"

68641-14G00

1
Out of stock

6

CLIP

09409-08326

2
Out of stock

7

CUSHION

09320-06026

1
Out of stock

8

SHIELD, LEG FRONT (GRAY) | FOR YLF

48111-05H00-YLF

1
Out of stock

8

SHIELD, LEG FRONT (WHITE) | FOR YPA

48111-05H00-YPA

1
Out of stock

8

SHIELD, LEG FRONT (BLACK) | FOR YVB

48111-05H00-YVB

1
Out of stock

9

TAPE, LEG SHIELD RH (BLACK) | FOR YLF,YVB

68161-05H00-YVB

1
Out of stock

10

TAPE, LEG SHIELD LH (BLACK) | FOR YLF,YVB

68162-05H00-YVB

1
Out of stock

11

SCREW (6X12)

09136-06004

4
Out of stock

12

CLIP

09409-08326

2
Out of stock

13

NUT

09148-05038

6
Out of stock

14

BRACE, LEG SHIELD

48150-05HD0

1
Out of stock

15

BOLT (8X12)

01550-0812A

4
Out of stock

16

CUSHION

09320-08018

2
Out of stock

17

SHIELD, LEG LOWER

48137-05H01

1
Out of stock

18

CLIP (BLACK)

09409-08308-5ES

6
Out of stock
