2026 Suzuki AN400AM6(E33) Starting Motor Diagram

← All diagrams

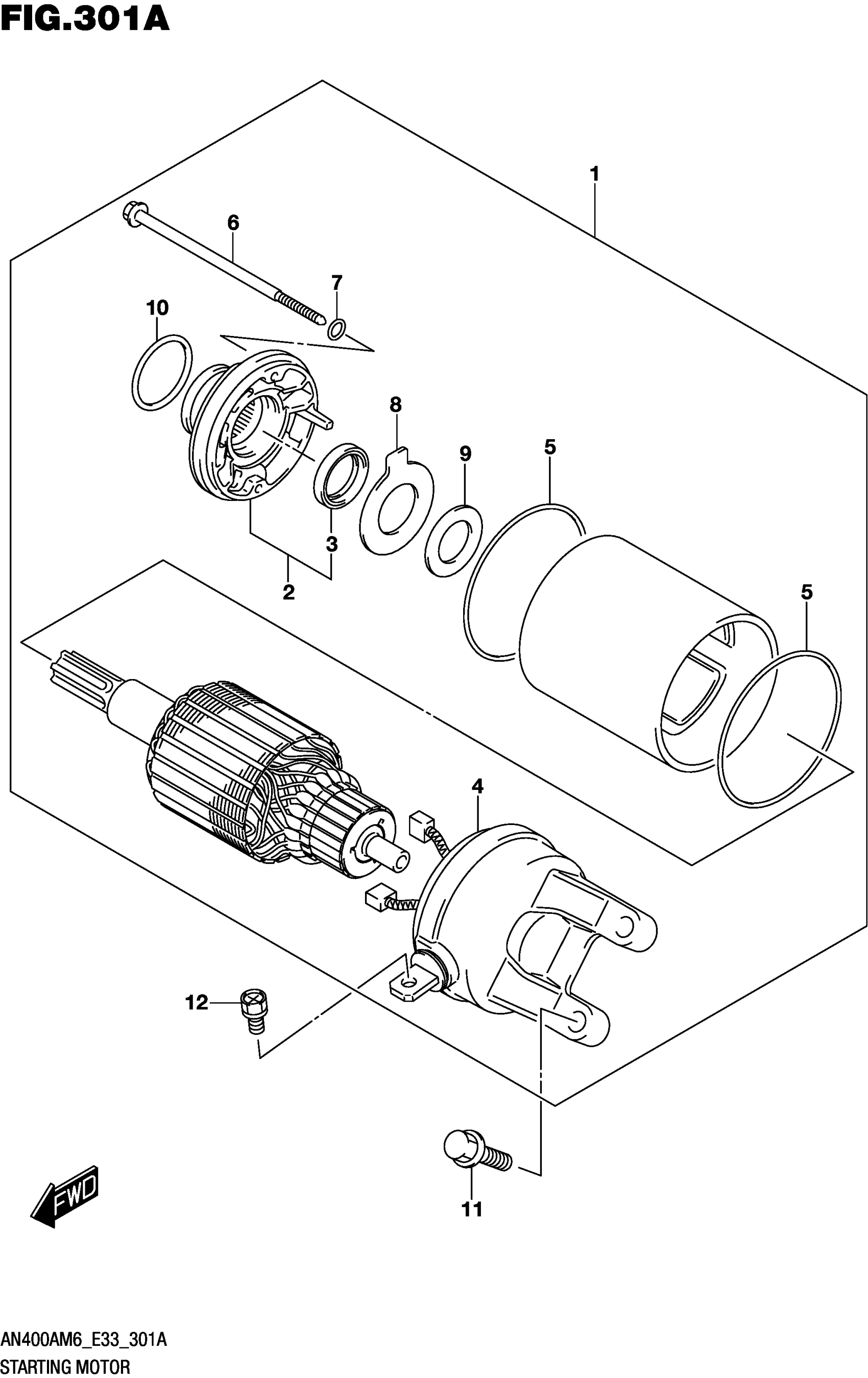

Find the part on the Starting Motor diagram for your 2026 Suzuki AN400AM6(E33), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Suzuki AN400AM6(E33) Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY,STARTING

31100-06H01

1
Out of stock

2

.BRACKET

31150-06H00

1
Out of stock

3

..OIL SEAL

31153-06H00

1
Out of stock

4

.FRAME ASSY,COMMUTATOR,END

31175-14F00

1
Out of stock

5

.O-RING

31264-32C10

2
Out of stock

6

.BOLT

31281-08F00

2
Out of stock

7

.O RING

31156-08F00

2
Out of stock

8

.PLATE,LOCK

31361-32C10

1
Out of stock

9

.SHIM

31361-38300

1
Out of stock

10

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

11

BOLT

01547-0620A

2
Out of stock

12

SCREW (5X8)

09137-05004

1
Out of stock
← Starter Clutch Wiring Harness →

More Electrical diagrams
