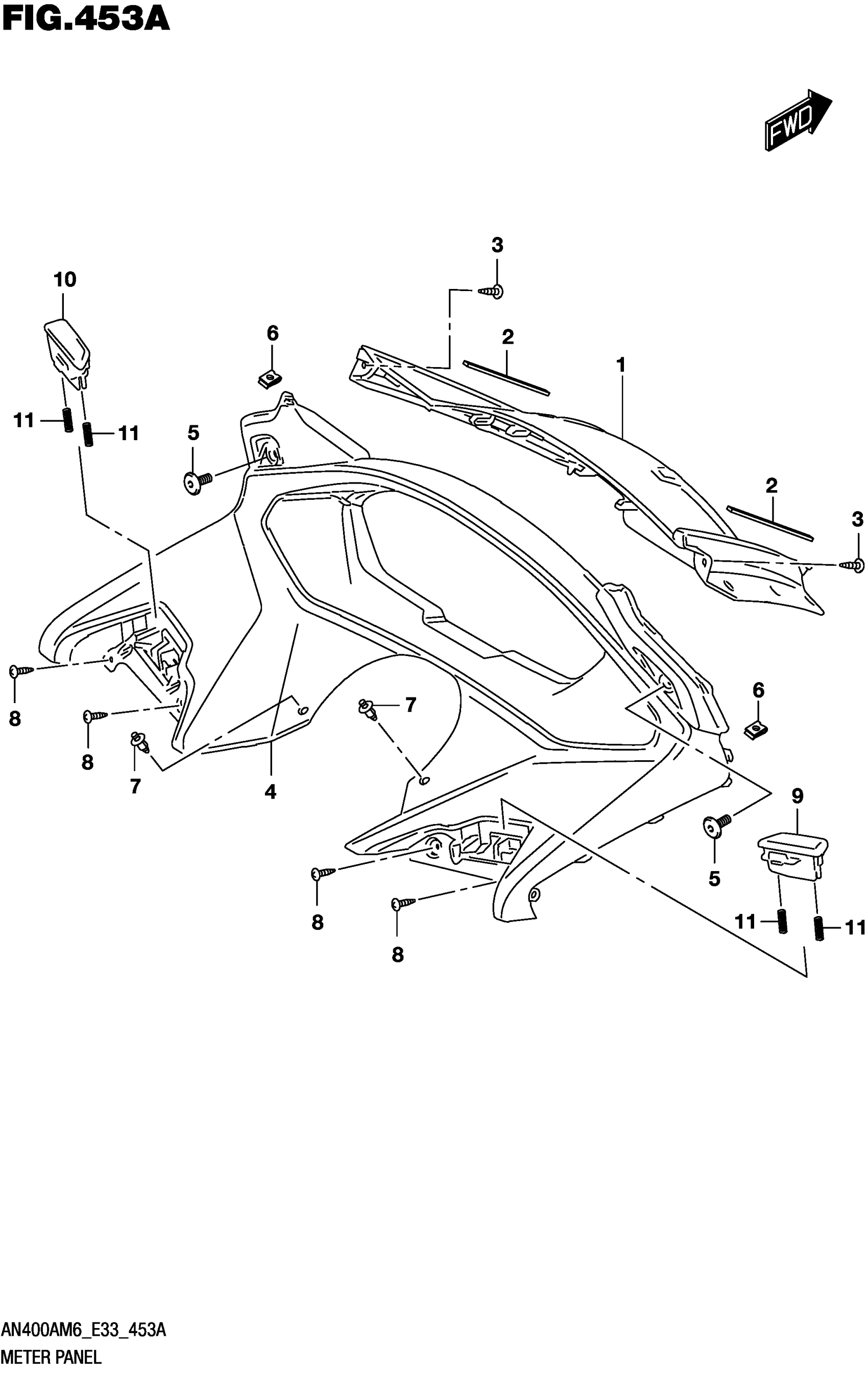

Suzuki AN400AM6(E33) (2026) METER PANEL Diagram

#

Description
Price

1

PANEL,METER FRONT

94421-19K01

$32.40

2

CUSHION (3X5X260)

94424-05H00

$6.63

3

SCREW

03541-0516A

$1.37

4

PANEL,METER REAR

94422-19K02

$71.57

5

SCREW (5X13)

09139-05092

$2.22

6

NUT (M5)

09148-05038

$1.97

7

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

8

SCREW

03541-0416A

$1.43

9

LOCK, FRONT BOX RH

92143-19K00

$33.55

10

LOCK, FRONT BOX LH

92153-19K00

$33.55

11

SPRING,FR PANEL LID

92144-14G01

$6.17
