2026 Suzuki AN400AM6(E33) Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2026 Suzuki AN400AM6(E33), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

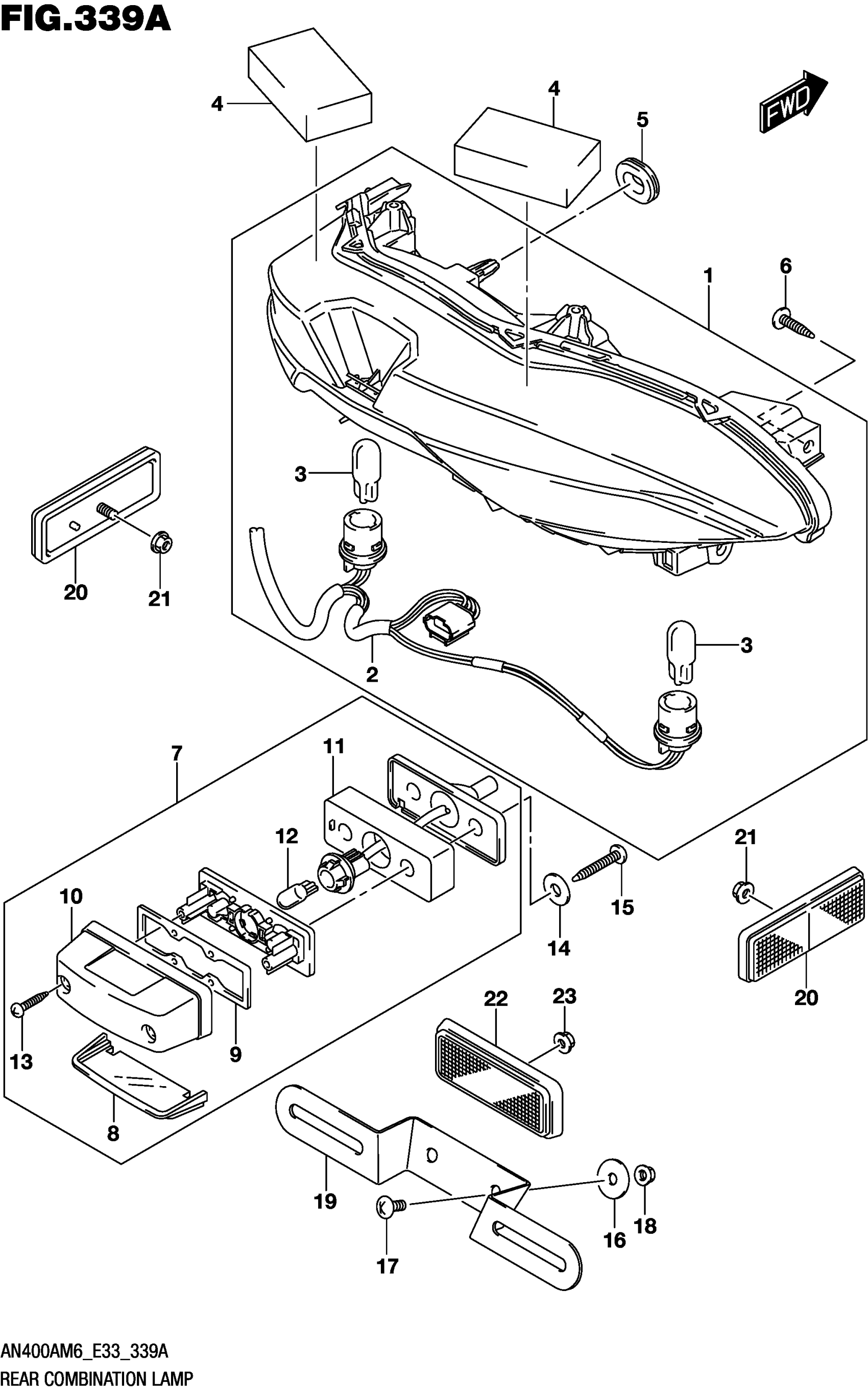

2026 Suzuki AN400AM6(E33) Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$588.45

In stock

2

.SOCET & CORD

35718-19K00

1

$89.13

In stock

3

.BULB (12V21W)

09471-12202

2

$9.12

In stock

4

CUSHION, REAR COMB

35713-19K00

2

$4.27

In stock

5

CUSHION

09320-08029

1
Out of stock

6

SCREW

03541-0516A

6
Out of stock

7

LAMP ASSY, LICENSE

35910-16G41

1

$85.98

In stock

8

.LENS

35912-16G01

1
Out of stock

9

.GASKET

35913-16G00

1
Out of stock

10

.COVER

35917-16G00

1
Out of stock

11

.SPACER

35978-16G30

1
Out of stock

12

.BULB (12V5W)

09471-12216

1
Out of stock

13

.SCREW

03211-0416A

2

$1.54

In stock

14

WASHER (5.5X20X1.2)

09160-05501

2

$2.02

In stock

15

SCREW

03541-0540A

2
Out of stock

16

WASHER

09169-06071

2
Out of stock

17

SCREW

02142-0616A

2
Out of stock

18

NUT (6X12)

08316-1006A

2
Out of stock

19

1

$28.58

In stock

20

REFLECTOR ASSY,RR

35970-07F01

2
Out of stock

21

NUT

08316-1005A

2
Out of stock

22

REFLECTOR ASSY,RR

35970-07F01

1
Out of stock

23

NUT

08316-1005A

1
Out of stock
