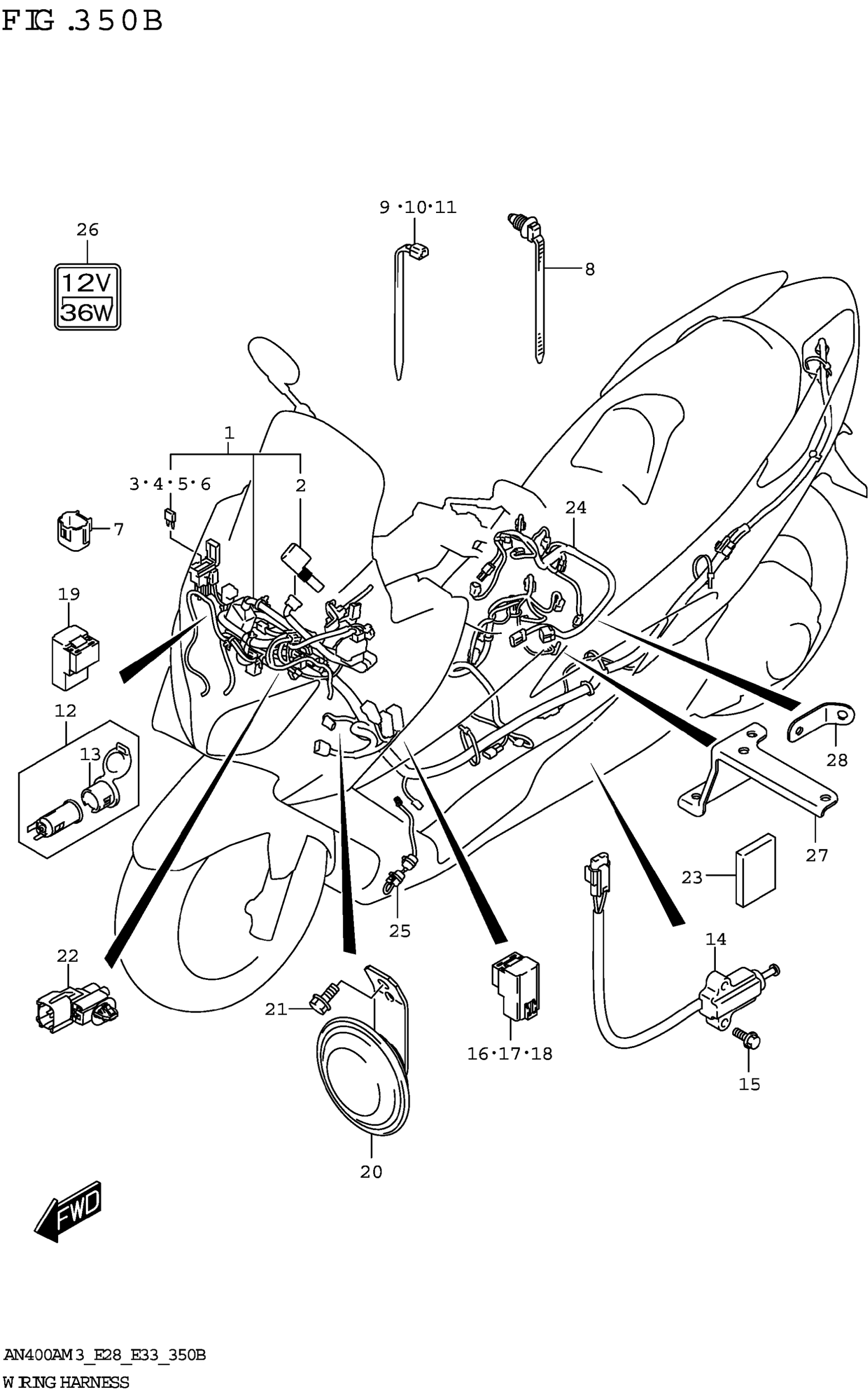

Suzuki AN400AM3 (2023) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS,WIRING NO.1

36610-19K50

$643.53

2

.COVER,CONNECTOR

36618-41G00

Unavailable

3

.FUSE (10A)

09481-10501

$2.06

4

.FUSE (15A)

09481-15501

$2.02

5

.FUSE (3A)

09481-03502

Unavailable

6

.FUSE (20A)

09481-20501

Unavailable

7

CAP,OBD CONNECTOR

36654-28K00

$8.72

8

CLAMP (L:170)

09407-17403

$4.91

9

CLAMP (L:190)

09407-19401

$3.05

10

CLAMP (L:235)

09407-25401

$4.66

11

CLAMP (L:165)

09407-18402

$2.19

12

TERMINAL,POWER SOURCE (GRAY)

39410-49F00-P4Z

Unavailable

13

.COVER (GRAY)

39441-49F00-P4Z

$9.07

14

SWITCH ASSY,SIDE STAND This part replaces 37840-18J01.

37840-18J02

$52.92

15

BOLT (6X20)

01550-0620A

$1.97

16

RELAY ASSY,FUEL PUMP | FUEL

38740-26E01

$38.58

17

RELAY ASSY,FUEL PUMP | SIDE STAND

38740-26E01

$38.58

18

RELAY ASSY,FUEL PUMP | HEAD LAMP

38740-26E01

$38.58

19

RELAY ASSY,FUEL PUMP | FAN MOTOR

38740-26E01

$38.58

20

HORN ASSY

38500-05H00

$87.70

21

BOLT (8X12)

01550-0812A

$2.32

22

SENSOR,AIR TEMP

95643-58J00

$50.50

23

CUSHION This part replaces 44281-29C00.

63191-25C00

$3.05

24

HARNESS,WIRING NO.2

36620-19K10

$205.25

25

WIRE,FAN MOTOR LEAD

36852-19K00

$47.92

26

LABEL,MAX AMP

38852-28K01

$2.60

27

BRACKET,HARNESS

47414-19K00

$11.77

28

PLATE,HARNESS

47414-19K10

$4.85
