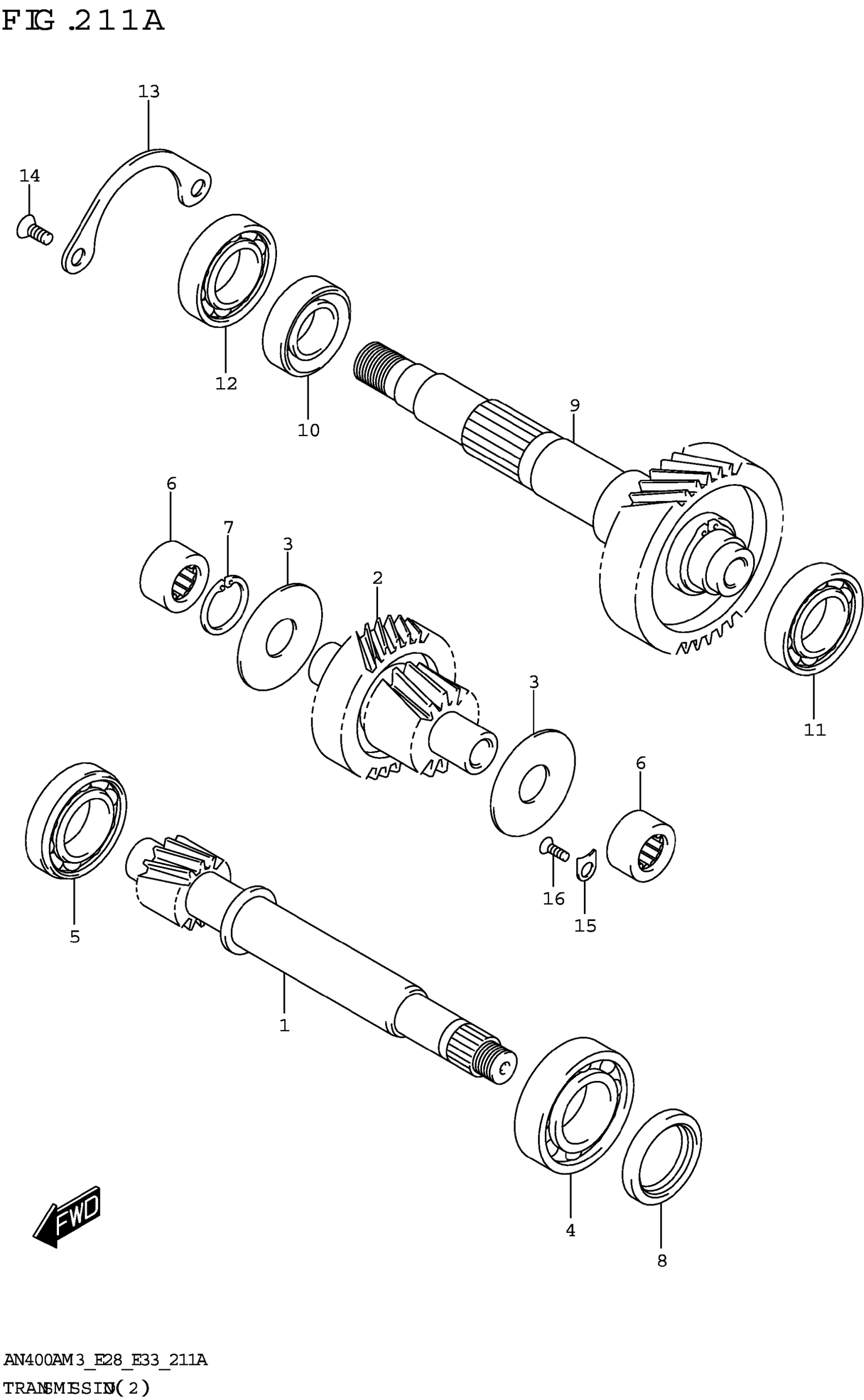

Suzuki AN400AM3 (2023) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT,DRIVE (NT:14)

24131-05H00

$169.35

2

SHAFT,IDLE (NT:14)

24150-05H10

$162.87

3

WASHER (20X50X2)

09160-20077

$12.40

4

BEARING

08113-52050

$80.88

5

BEARING (20X52X15)

09262-20073

$23.28

6

BEARING (20X34X18)

09263-20062

$46.98

7

CIRCLIP

08331-41349

$2.73

8

OIL SEAL (25X37X6)

09283-25097

$11.92

9

SHAFT,REAR AXLE (NT:41)

24140-06H10

$262.10

10

OIL SEAL (38X52X7)

09283-38019

$17.90

11

BEARING (25X62X17)

09262-25073

$25.92

12

BEARING

08130-6306B

$47.60

13

RETAINER, AXLE SHAFT BEARING

24751-19K00

$9.62

14

SCREW

02122-0616A

$1.49

15

RETAINER

24742-44B00

$4.10

16

SCREW

02122-0616A

$1.49
