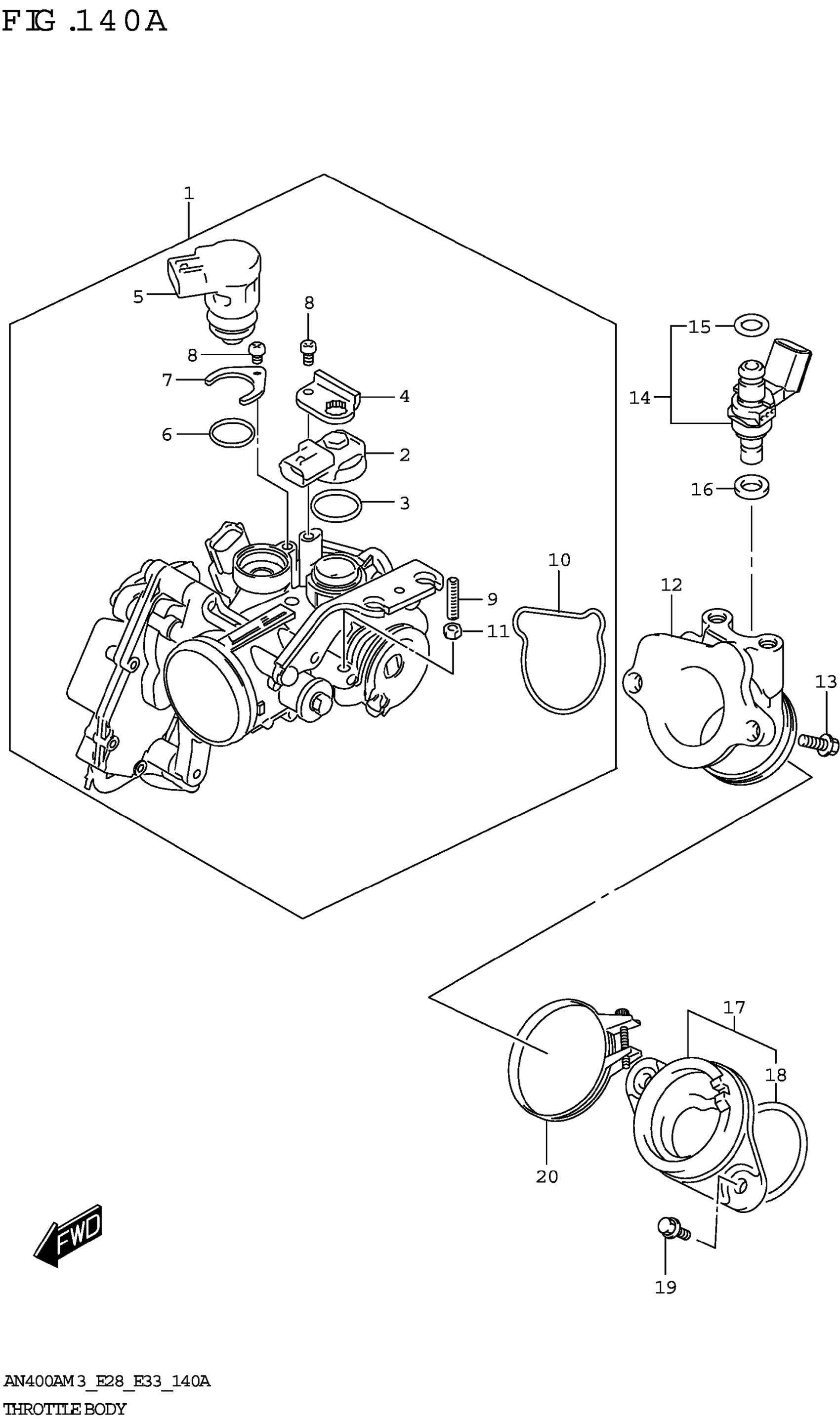

Suzuki AN400AM3 (2023) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13400-19K20

$761.22

2

.SENSOR,MAP

15620-05H00

$273.45

3

.O RING

15621-05H01

$9.05

4

.PLATE

15622-05H00

Unavailable

5

.VALVE, ISC

18117-05H22

$260.10

6

.O-RING

18119-05H00

$3.95

7

.PLATE

13428-06F30

$6.47

8

.SCREW

02112-14087

$2.38

9

.SCREW

13267-14G10

Unavailable

10

.O RING

13278-05H00

$13.35

11

.NUT

13661-14G10

Unavailable

12

PIPE,INTAKE

13111-19K10

$212.08

13

BOLT

01547-0616A

$2.03

14

INJECTOR ASSY

15710-04K00

$271.53

15

.O-RING

15717-58B00

$9.95

16

SEAL

15722-14J00

$11.36

17

PIPE ASSY,INTAKE

13101-05H01

$51.63

18

.O-RING

09280-42004

$1.94

19

BOLT (6X16)

09119-06092

$2.38

20

CLAMP,INTAKE PIPE

13170-39H01

$7.13
