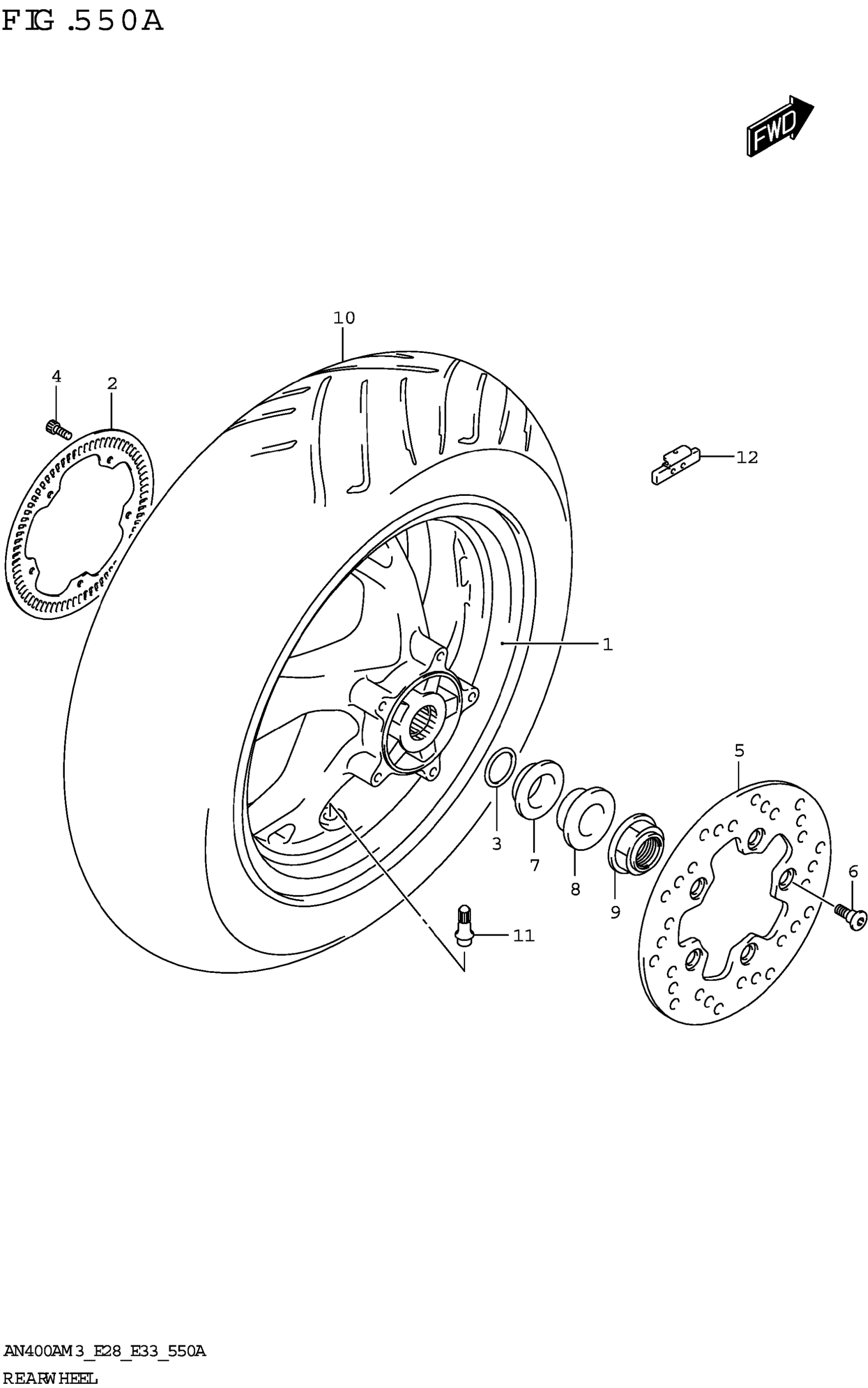

Suzuki AN400AM3 (2023) REAR WHEEL Diagram

#

Description
Price

1

WHEEL,REAR (BLUE)

64110-05H10-YLY

$753.37

2

RING,SPEED SENSOR RR (72T)

64162-05H00

$35.32

3

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

4

BOLT

07130-0512A

$2.19

5

DISC,REAR BRAKE

69211-05H00

$205.55

6

BOLT (8X21)

09106-08160

$3.57

7

SPACER,REAR AXLE INNER

64741-05H00

Unavailable

8

SPACER,REAR AXLE OUTER

64751-05H00

Unavailable

9

NUT

09159-20014

$37.47

10

TIRE,REAR

65110-19K01

$232.70

11

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

12-1

BALANCER,WHEEL NO.1 (10G)

43222-73H20

Unavailable

12-2

BALANCER,WHEEL NO.2 (20G)

43224-73H20

Unavailable

12-3

BALANCER,WHEEL NO.3 (30G)

43226-73H20

Unavailable
