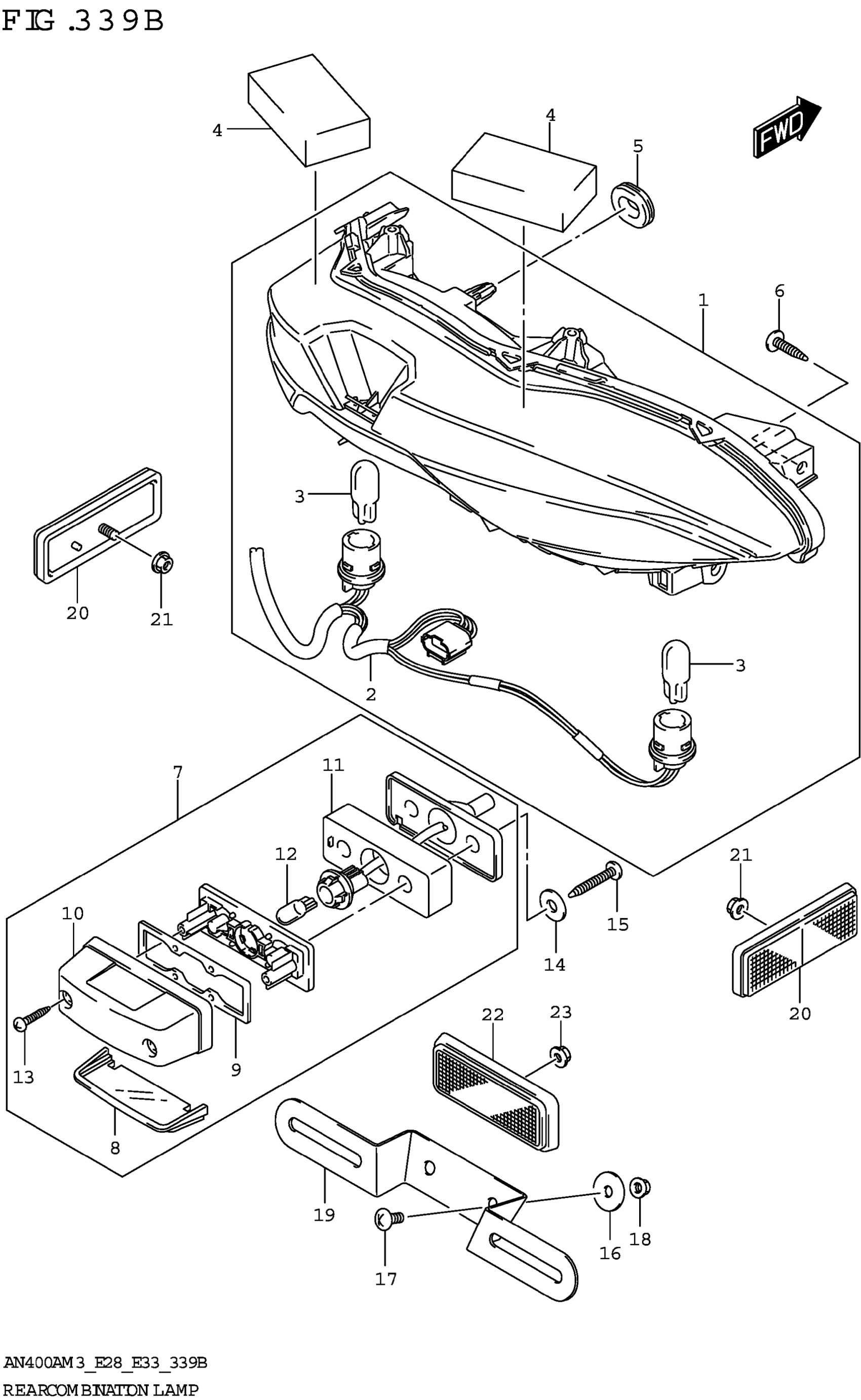

Suzuki AN400AM3 (2023) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-19K10

$529.00

2

.SOCET & CORD

35718-19K00

$78.98

3

.BULB (12V21W)

09471-12202

$8.38

4

CUSHION, REAR COMB

35713-19K00

$3.77

5

CUSHION

09320-08029

$2.41

6

SCREW

03541-0516A

$1.49

7

LAMP ASSY, LICENSE

35910-16G41

$76.18

8

.LENS

35912-16G01

$12.27

9

.GASKET

35913-16G00

Unavailable

10

.COVER

35917-16G00

$12.40

11

.SPACER

35978-16G30

Unavailable

12

.BULB (12V5W)

09471-12216

$5.36

13

.SCREW

03211-0416A

$1.49

14

WASHER (5.5X20X1.2)

09160-05501

$1.84

15

SCREW

03541-0540A

$1.49

16

WASHER

09169-06071

$2.50

17

SCREW

02142-0616A

$1.49

18

NUT (6X12)

08316-1006A

$2.19

19

BRACKET, LICENSE PLATE

35927-19K00

$25.33

20

REFLECTOR ASSY,RR

35970-07F01

$20.88

21

NUT

08316-1005A

$2.19

22

REFLECTOR ASSY,RR

35970-07F01

$20.88

23

NUT

08316-1005A

$2.19
