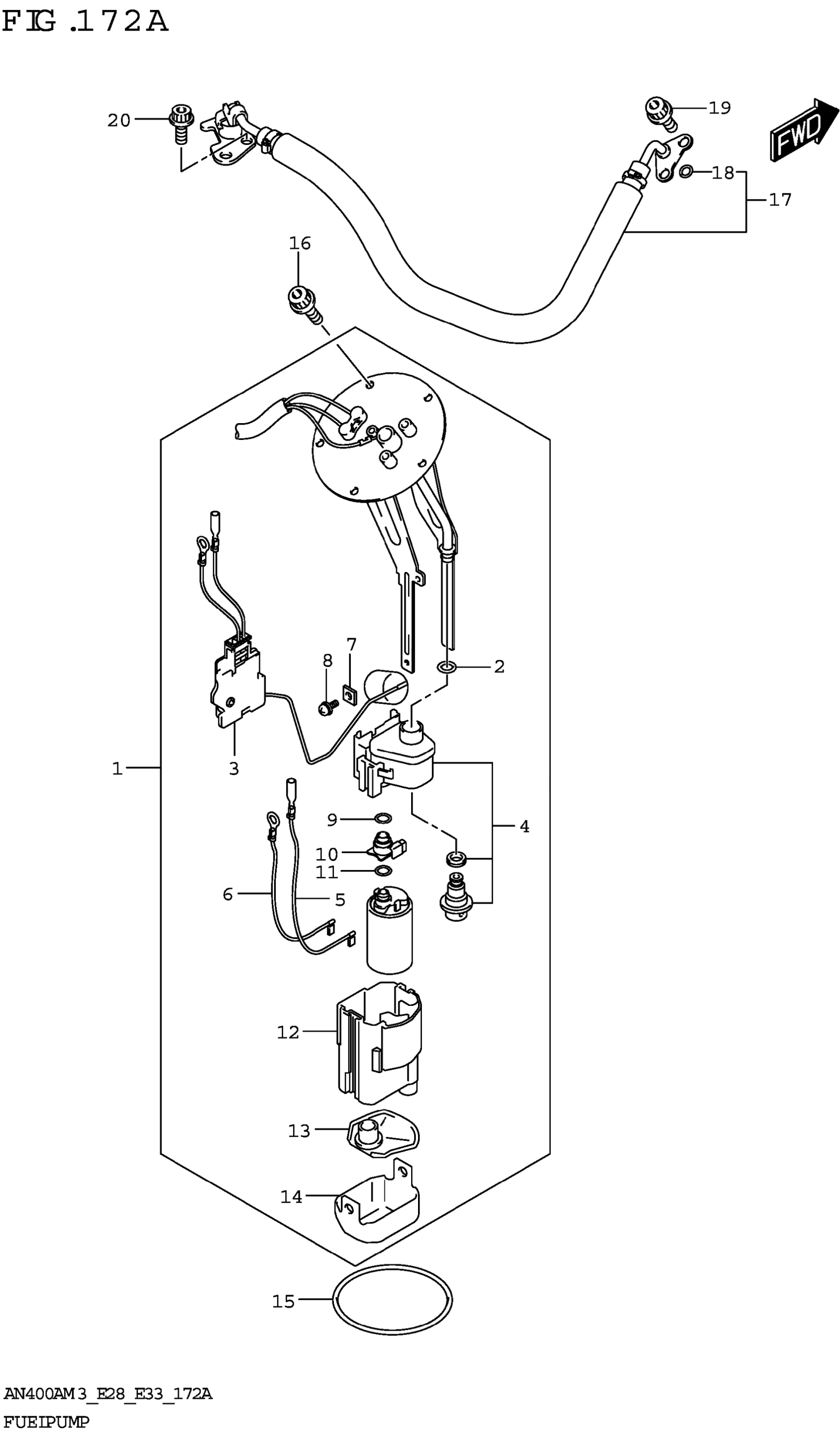

Suzuki AN400AM3 (2023) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL

15100-05H11

$355.74

2

.O-RING

15113-35F00

$8.91

3

.GAUGE ASSY

34810-05H00

$220.03

4

.REGULATOR

15610-05H00

Unavailable

5

.WIRE,LEAD

15115-05H00

Unavailable

6

.WIRE,EARTH

15114-05H00

Unavailable

7

.STOPPER

15117-05H00

$7.53

8

.SCREW

15116-10F00

$5.58

9

.O-RING

15113-05H00

$19.98

10

.JOINT

15112-05H00

$28.12

11

.O-RING

15113-05H00

$19.98

12

.CUP

15111-18H00

$42.43

13

.STRAINER

15420-05H00

$41.17

14

.COVER,DUST

15426-05H00

$18.42

15

O-RING

15201-35F00

$27.60

16

BOLT

07120-0612A

$2.50

17

HOSE,FUEL

15810-19K10

$103.03

18

.O RING

15817-39H00

$3.84

19

BOLT

07130-0610A

Unavailable

20

BOLT

07130-0612A

$2.50
