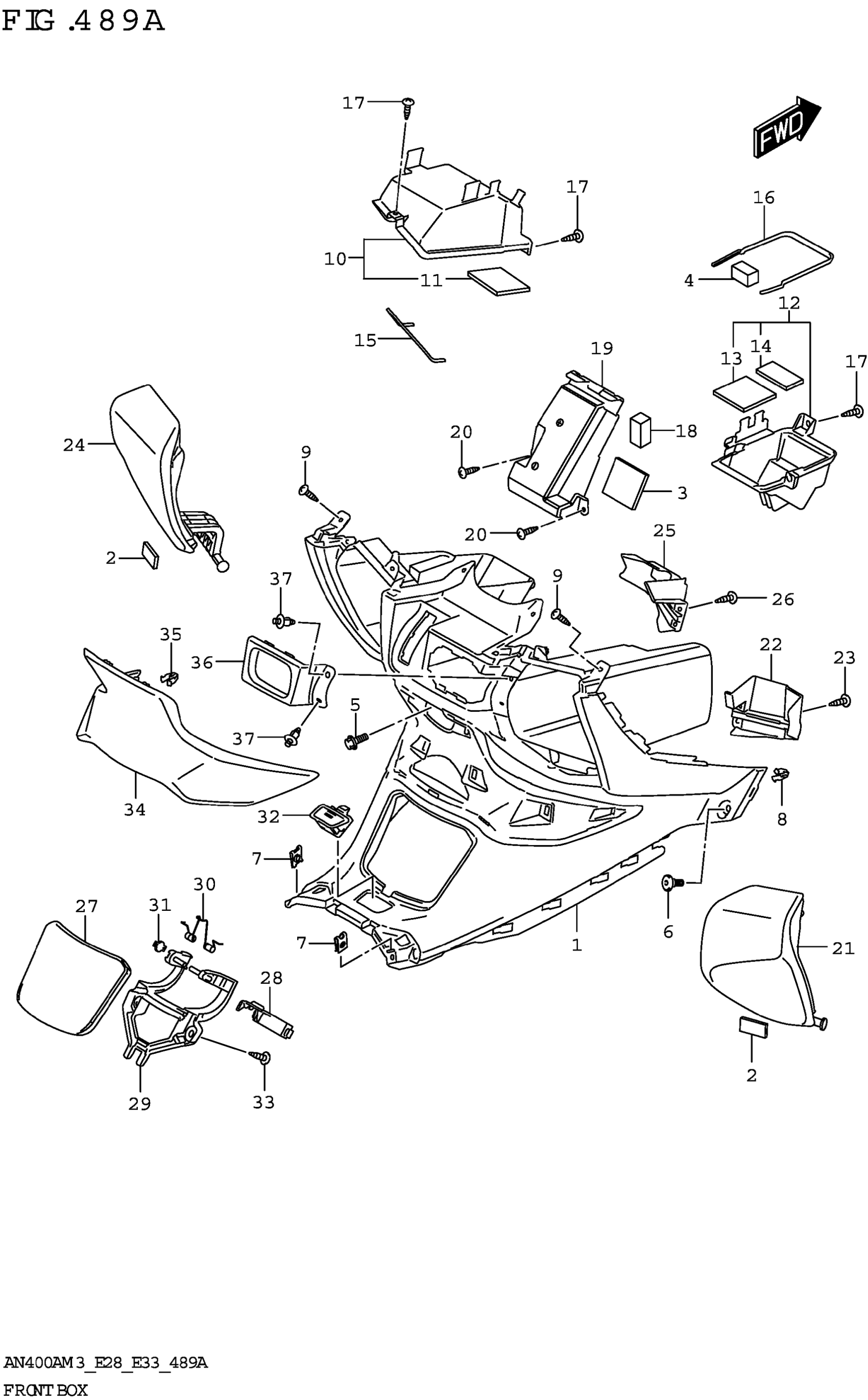

Suzuki AN400AM3 (2023) FRONT BOX Diagram

#

Description
Price

1

BOX, FRONT

92111-19K00

$217.50

2

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99

3

PROTECTOR (50X50X5)

33652-20C00

$2.99

4

CUSHION,RR COMB (20X40X20)

33652-38F20

$2.61

5

BOLT (6X16)

09116-06205

$2.63

6

SCREW (5X18)

09139-05094

$4.32

7

NUT (M5)

09148-05038

$1.97

8

CLIP (10.5X14.3)

09409-08326

$2.48

9

SCREW

03541-0512A

$1.49

10

COVER,FR BOX UPPER

92140-19K10

$22.83

11

PROTECTOR (50X50X5)

33652-20C00

$2.99

12

COVER, FRONT BOX LWR

92150-19K00

$17.80

13

PROTECTOR (50X50X5)

33652-20C00

$2.99

14

.CUSHION,BODY COWLING

94583-05C10

Unavailable

15

CUSHION, INNER This part replaces 92113-10G00.

92116-05H00

$5.99

16

CUSHION, INNER This part replaces 92115-14G00.

92116-05H00

$5.99

17

SCREW

03541-0512A

$1.49

18

CUSHION,RR COMB (20X40X20)

33652-38F20

$2.61

19

LID,BATTERY BOX

92191-19K01

$13.30

20

SCREW

03541-0516A

$1.49

21

LID,FRONT BOX,R

92120-19K10

$46.93

22

RETAINER, FRONT BOX RH

92124-19K00

$16.98

23

SCREW

03541-0516A

$1.49

24

LID,FRONT BOX,L

92130-19K10

$46.93

25

RETAINER, FRONT BOX LH

92134-19K00

$16.98

26

SCREW

03541-0516A

$1.49

27

LID, FUEL OUTER

92161-19K00

$19.67

28

LOCK,FUEL LID ARM

92162-14G01

$13.85

29

LID, FUEL INNER

92162-19K00

$24.23

30

SPRING, FUEL LID

92163-19K00

$9.22

31

DAMPER,FUEL LID

92164-14G00

$14.77

32

LOCK,FUEL LID (BLACK)

92180-05H01-291

$23.63

33

SCREW

03541-0512A

$1.49

34

COVER,CENTER

94423-19K00

$87.50

35

CLIP (10.5X14.3)

09409-08326

$2.48

36

COVER,MAIN SWITCH

94672-19K01

$10.22

37

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78
