2016 Suzuki AN400AL6 Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2016 Suzuki AN400AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

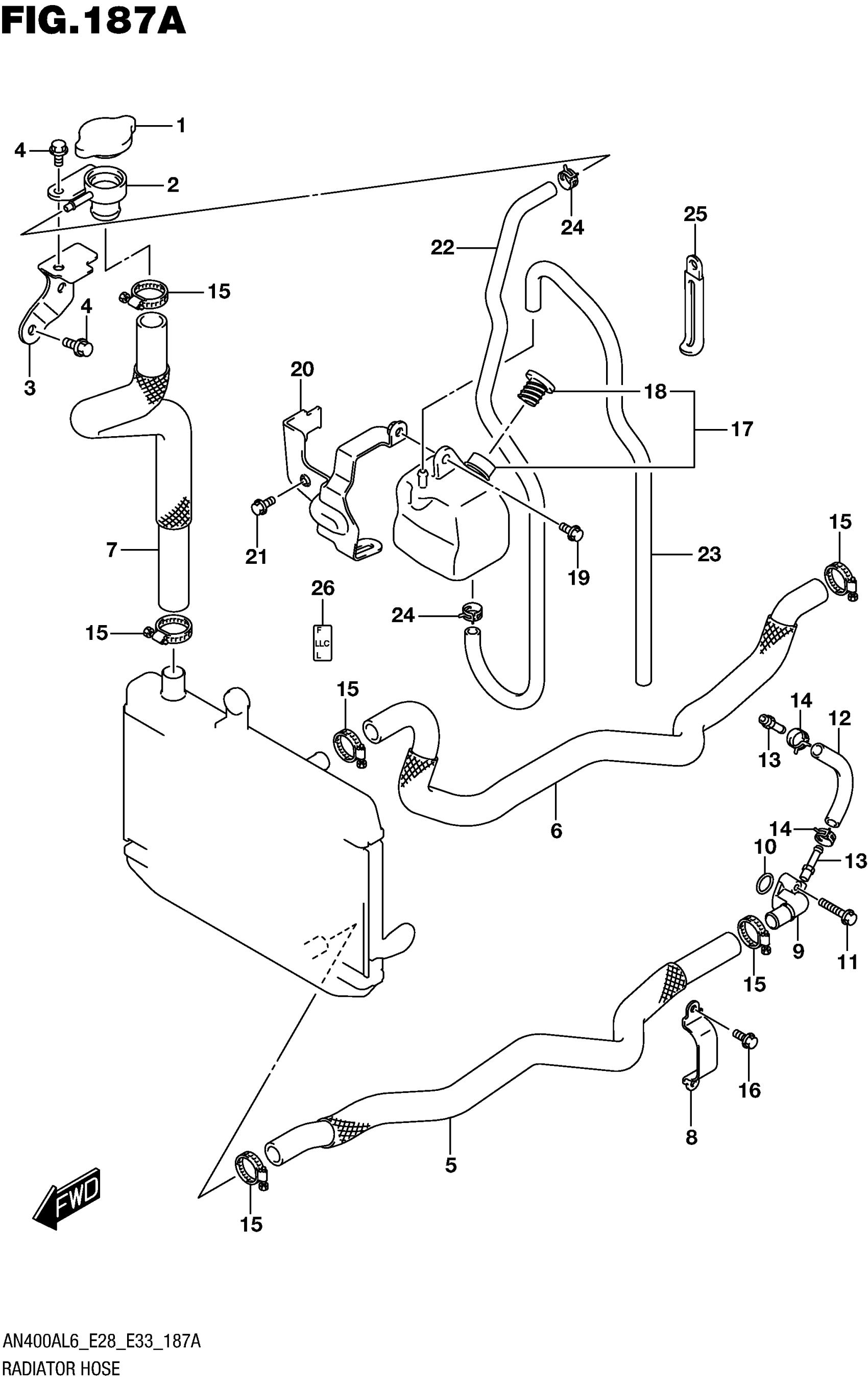

2016 Suzuki AN400AL6 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, RADIATOR

17730-08J00

1
Out of stock

2

CONDUCTION

17791-24D00

1
Out of stock

3

BRACKET

17790-05H00

1
Out of stock

4

BOLT

01550-0610A

2
Out of stock

5

HOSE, RADIATOR OUTLET This part replaces 17852-05H00.

17852-19K00

1
Out of stock

6

HOSE, RADIATOR INLET This part replaces 17851-05H10.

17851-19K00

1
Out of stock

7

HOSE, CONDUCTION This part replaces 17855-05H00.

17855-19K00

1
Out of stock

8

PLATE,WATER HOSE CLAMP

17859-05H00

1
Out of stock

9

CONNECTOR, WATER INLET This part replaces 17861-05H00.

17861-05H01

1
Out of stock

10

1

$5.01

In stock

11

BOLT

01547-0630A

2
Out of stock

12

HOSE (7.5X14.5X600) | L:600->130

09356-75141-600

—
Out of stock

13

UNION

09362-09011

2
Out of stock

14

CLIP

09401-12414

2
Out of stock

15

CLAMP

09402-28513

6

$6.80

In stock

16

BOLT

01547-0616A

1
Out of stock

17

TANK ASSY,RESERVOIR

17910-05H00

1
Out of stock

18

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

19

BOLT (6X12)

09111-06085

1
Out of stock

20

BRACKET,RSVR TANK

17920-05H00

1
Out of stock

21

BOLT

01547-0616A

1
Out of stock

22

HOSE,RESERVOIR TANK INLET This part replaces 17981-10G00.

17981-10G01

1
Out of stock

23

HOSE, TANK OVERFLOW | CUT AS REQUIRED

17900-35810

1
Out of stock

24

CLIP

09401-08411

2
Out of stock

25

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock

26

LABEL,RESERVOIR TANK LEVEL

17919-05H00

1
Out of stock
