2016 Suzuki AN400AL6 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2016 Suzuki AN400AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

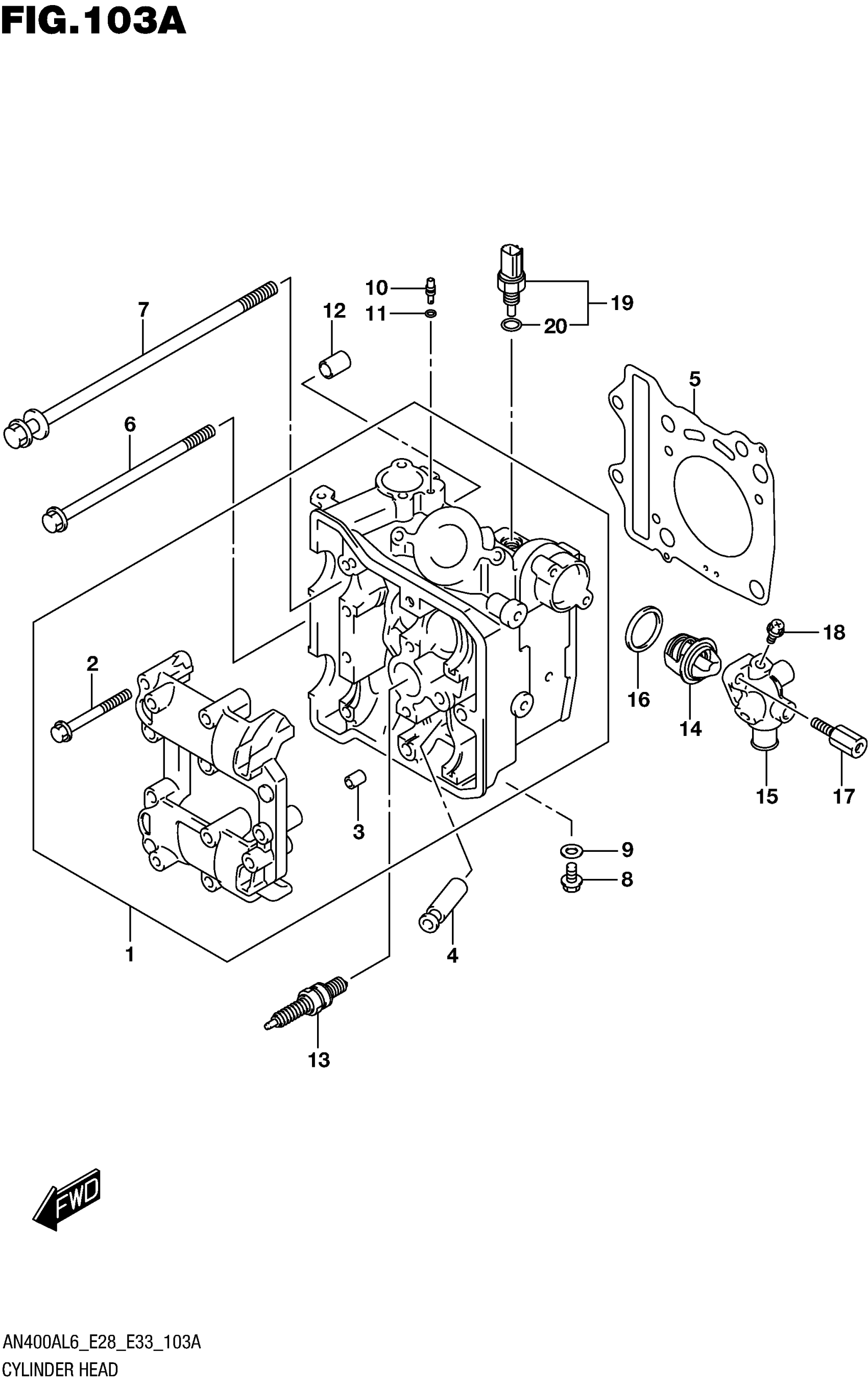

2016 Suzuki AN400AL6 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY,CYLIN This part replaces 11100-05H00.

11100-05H01

1
Out of stock

2

.BOLT (6X45)

09103-06165

9
Out of stock

3

.PIN (8X11)

09206-08001

2
Out of stock

4

GUIDE,VALVE (OS:0.3) | OPT

11115-32C71

4
Out of stock

5

.GASKET,CYLINDER HEAD This part replaces 11141-05H00.

11141-19K00

1
Out of stock

6

BOLT (8X130)

09103-08086

2
Out of stock

7

BOLT (10X190)

11117-05H00

4
Out of stock

8

BOLT

01550-0612A

1
Out of stock

9

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

10

JET(8)

09493-80005

1
Out of stock

11

O RING (D:1.2,ID:4)

09280-04004

1
Out of stock

12

PIN

04211-13189

2
Out of stock

13-1

SPARK PLUG (CR7E) | NGK

09482-00516

1
Out of stock

13-2

SPARK PLUG (U22ESR-N) | DENSO

09482-00515

1
Out of stock

13-3

SPARK PLUG (CR8E) | OPT

09482-00456

1
Out of stock

13-3

SPARK PLUG (CR8E) | NGK

09482-00456

1
Out of stock

13-4

SPARK PLUG (U24ESR-N) | OPT

09482-00457

1
Out of stock

13-4

SPARK PLUG (U24ESR-N) | DENSO

09482-00457

1
Out of stock

13-5

PLUG SPARK (CR9E) | OPT

09482-00458

1
Out of stock

13-5

PLUG SPARK (CR9E) | NGK

09482-00458

1
Out of stock

13-6

SPARK PLUG (U27ESR-N) | OPT

09482-00459

1
Out of stock

13-6

SPARK PLUG (U27ESR-N) | DENSO

09482-00459

1
Out of stock

14

THERMOSTAT,WATE This part replaces 17670-08D20.

17670-08D21

1
Out of stock

15

COVER, THERMOSTAT

17661-05H00

1
Out of stock

16

GASKET (6.4X11.5X0.8)

09168-06026

1
Out of stock

17

BOLT

17667-21F00

2
Out of stock

18

BOLT, AIR RELEASE

17568-50F00

1
Out of stock

19

SENSOR, WATER TEMP

13650-14G00

1
Out of stock

20

.O RING

13655-14G00

1
Out of stock
