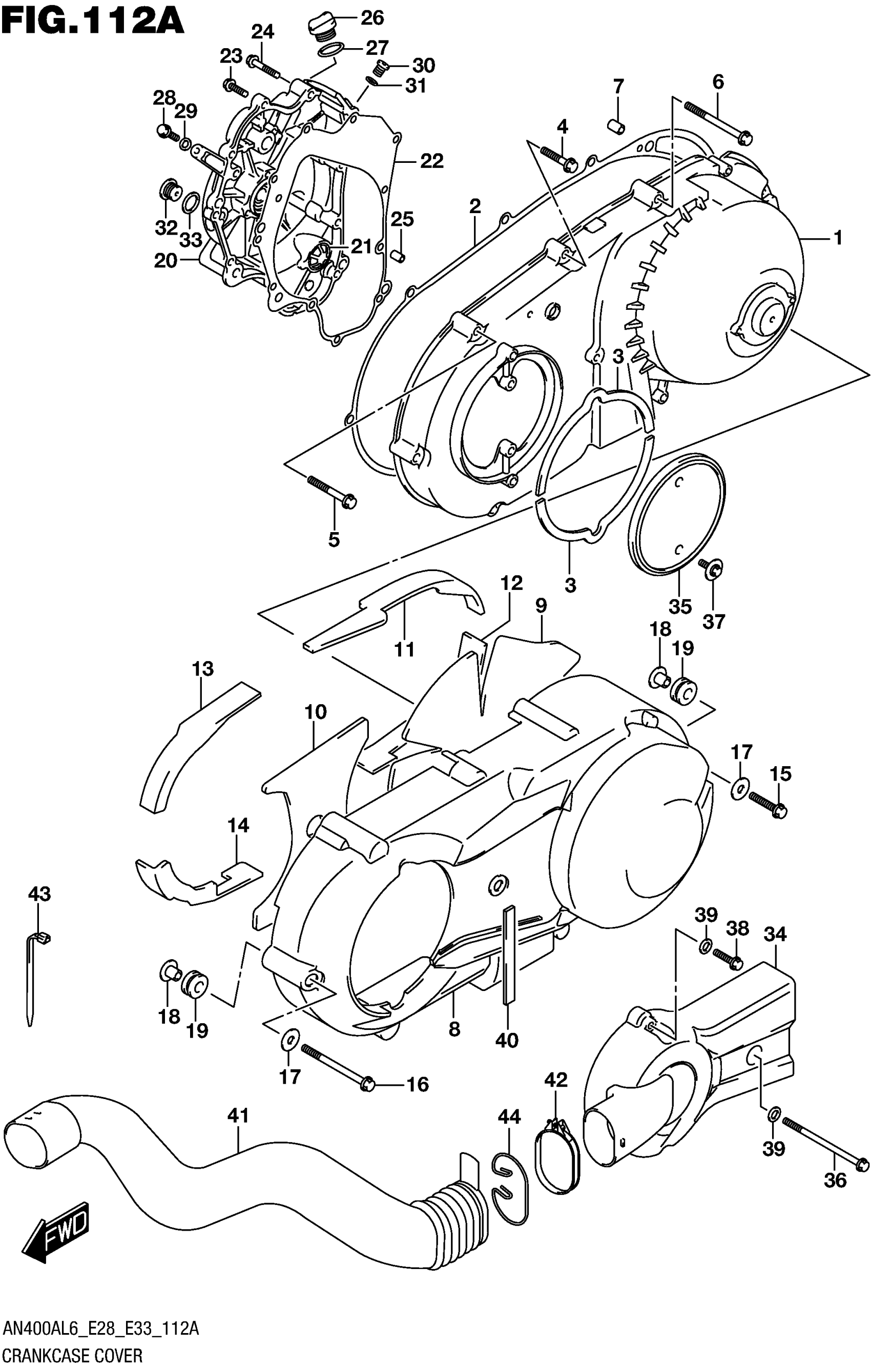

Suzuki AN400AL6 (2016) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH INNER

11341-05H00

$429.22

2

GASKET

11482-05H00

$74.58

3

CUSHION,BELT COOLING DUCT

11485-05H10

$4.47

4

BOLT

01547-0630A

$2.31

5

BOLT

01547-0645A

$2.43

6

BOLT

01547-0675A

$3.67

7

PIN

04211-09149

$1.64

8

COVER,CLUTCH OUTER This part replaces 11371-05H40.

11371-05H41

$146.52

9

CUSHION, COVER NO.1

11486-05H00

$70.52

10

CUSHION, COVER NO.2

11487-05H00

$27.67

11

CUSHION, COVER NO.3

11488-05H00

$18.22

12

CUSHION, COVER NO.4

11489-05H00

$14.00

13

CUSHION, COVER NO.5

11491-05H00

$13.30

14

CUSHION, COVER NO.6

11492-05H00

$14.98

15

BOLT

01547-0625A

$2.01

16

BOLT

01547-0660A

$2.80

17

WASHER (6.5X18X1.0)

09160-06028

$1.43

18

WASHER

09169-06062

$2.50

19

CUSHION

09320-09016

$1.97

20

COVER, MAGNETO

11350-05H00

Unavailable

21

.LENS, OIL LEVEL CHECK

11971-33210

$16.66

22

GASKET

11483-05H00

$21.17

23

BOLT

01547-0625A

$2.01

24

BOLT

01547-0640A

$2.31

25

PIN

04211-09149

$1.64

26

PLUG,ENGINE OIL FILLER

11971-25D00

$4.67

27

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

28

BOLT

01547-0612A

$2.01

29

GASKET (5.8X13X1.2)

09168-06023

$2.01

30

PLUG (10X10)

09248-10010

$3.82

31

GASKET (10X14X3.6)

09168-10002

$1.96

32

PLUG (16X8)

09248-16012

$4.19

33

GASKET (16X22X2)

09168-16002

$1.89

34

DUCT,BELT COOLING

11380-05H50

$48.73

35

FILTER,BELT COOLING

11388-10G10

$21.37

36

BOLT (6X95)

09103-06227

$4.53

37

BOLT (6X16)

09116-06006

$1.88

38

BOLT

01547-0620A

$2.01

39

WASHER

08322-0106A

$1.83

40

CUSHION

11382-05H30

Unavailable

41

HOSE,BELT COOLI This part replaces 11383-05H40.

11383-05H41

$47.33

42

CLAMP,BELT COOL This part replaces 11384-05H40.

11384-05H41

$9.80

43

CLAMP (L:125)

09407-14403

$2.24

44

GUIDE, COOLING DUCT HOSE

11385-05H00

Unavailable
