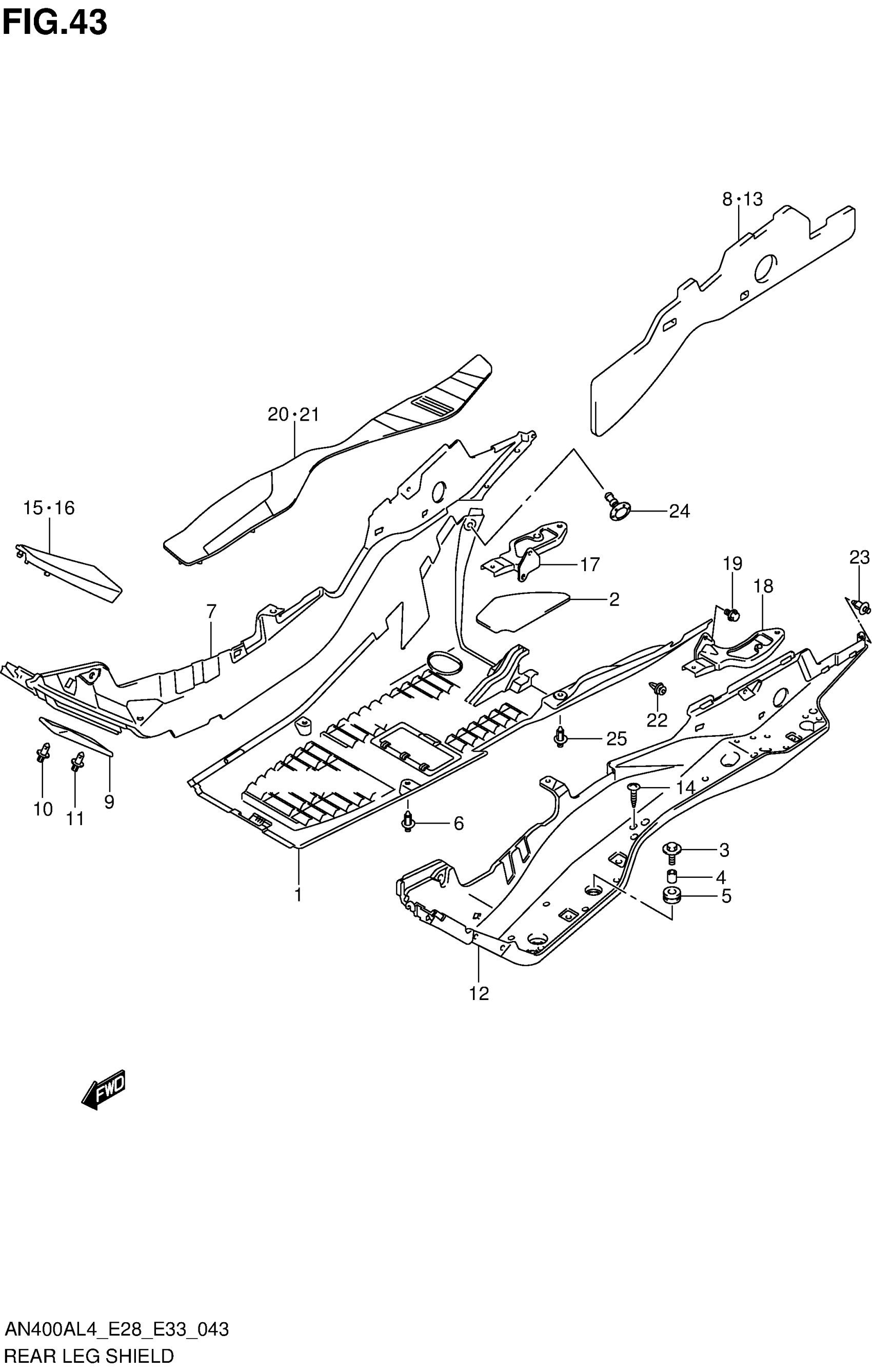

Suzuki AN400AL4 (2014) REAR LEG SHIELD Diagram

#

Description
Price

1

COVER, UNDER CENTER

48138-05H02

$217.28

2

CUSHION, UNDER COVER

48183-05H00

Unavailable

3

BOLT (6X25)

09116-06131

$1.68

4

SPACER (8.5X12X11)

09180-08189

$2.68

5

CUSHION

09320-11020

$5.70

6

CLIP This part replaces 09409-06322.

09409-06322-5PK

$2.84

7

FOOT BOARD, RH (BLACK)

48121-05H01-5PK

$137.98

8

CUSHION, FOOTBOARD RH

48124-05H00

Unavailable

9

COVER, RH

48123-05H00

Unavailable

10

CLIP (BLACK)

09409-06314-5PK

$2.80

11

CLIP (BLACK)

09409-08308-5ES

$1.97

12

FOOT BOARD, LH (BLACK)

48122-05H00-5PK

$158.90

13

CUSHION, FOOTBOARD LH

48125-05H00

Unavailable

14

SCREW

03541-0516A

$1.37

15

MAT,FLOOR FR RH This part replaces 48211-05H00-291.

48211-05HA0-291

$26.03

16

MAT,FLOOR FR LH This part replaces 48221-05H00-291.

48221-05HA0-291

$31.28

17

BRACKET, PILLION RH

43650-05H00

Unavailable

18

BRACKET, PILLION LH

43750-05H00

Unavailable

19

BOLT

01550-0612A

$1.97

20

MAT,FLOOR RR,R This part replaces 48231-05H00-291.

48231-05HA0-291

$57.73

21

MAT,FLOOR RR LH This part replaces 48241-05H00-291.

48241-05HA0-291

$57.73

22

CLIP

09409-07344

$3.12

23

CLIP (BLACK)

09409-06314-5PK

$2.80

24

CLIP

94479-35F00

$5.14

25

CLIP (BLACK)

09409-08308-5ES

$1.97
