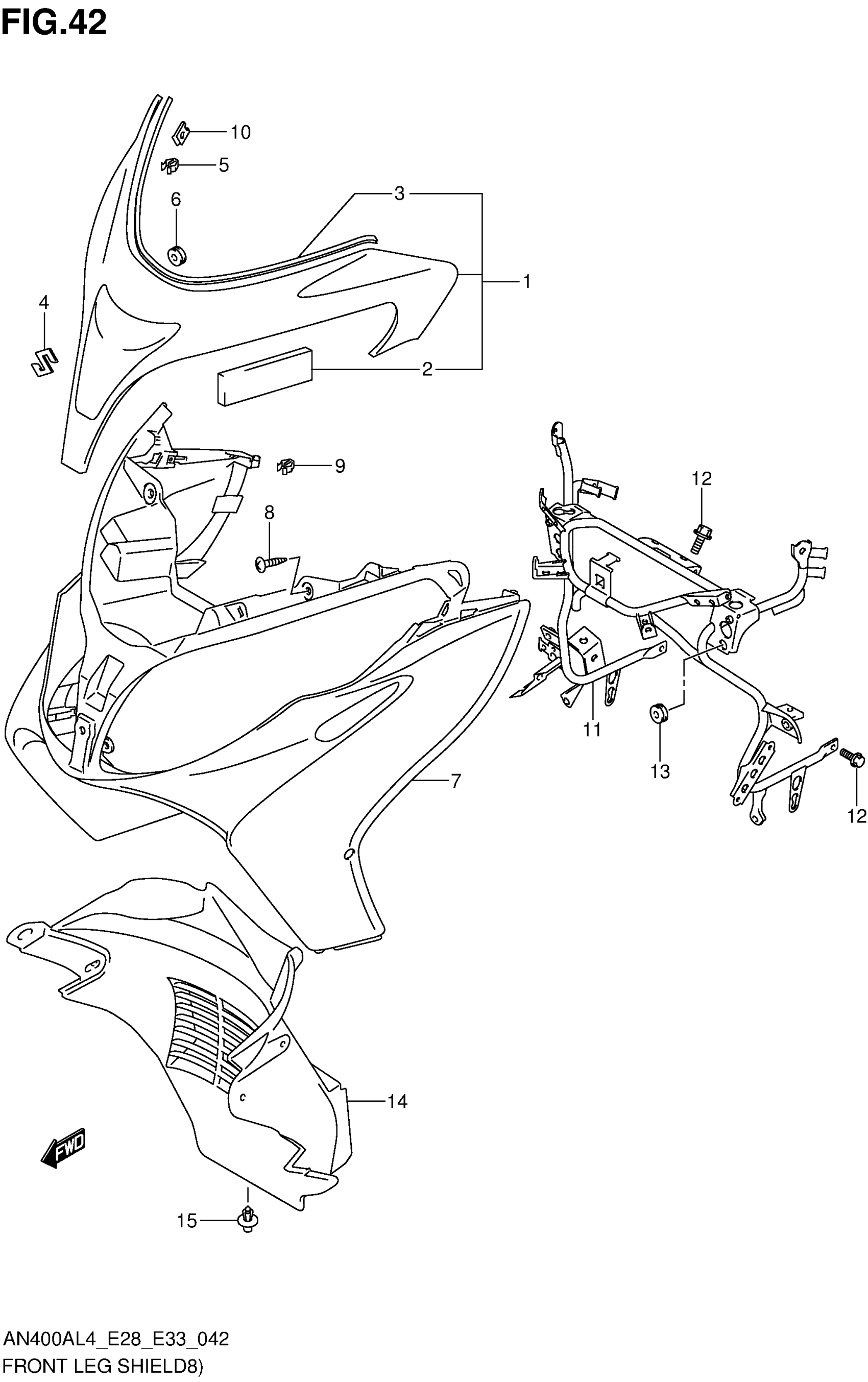

Suzuki AN400AL4 (2014) FRONT LEG SHIELD (AN400ZAL4 E28) Diagram

#

Description
Price

1

COVER, FRONT LEG (BLACK)

48130-05H00-YVB

$374.98

2

PROTECTOR,20X90X1.0 (20X90X1.

33652-26E00

$4.18

3

MOLDING, FR LEG SHIELD COVER

48132-05H00

Unavailable

4

EMBLEM, "S"

68641-26J00

$17.00

5

CLIP

09409-08326

$2.45

6

CUSHION

09320-06026

$4.45

7

SHIELD, LEG FRONT (BLACK)

48111-05H00-YVB

Unavailable

8

SCREW (6X12)

09136-06004

$2.13

9

CLIP

09409-08326

$2.45

10

NUT

09148-05038

$1.97

11

BRACE, LEG SHIELD

48150-05HD0

$435.10

12

BOLT (8X12)

01550-0812A

$2.31

13

CUSHION

09320-08018

$2.80

14

SHIELD, LEG LOWER

48137-05H01

$184.73

15

CLIP (BLACK)

09409-08308-5ES

$1.97
