2009 Suzuki AN400AK9 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2009 Suzuki AN400AK9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

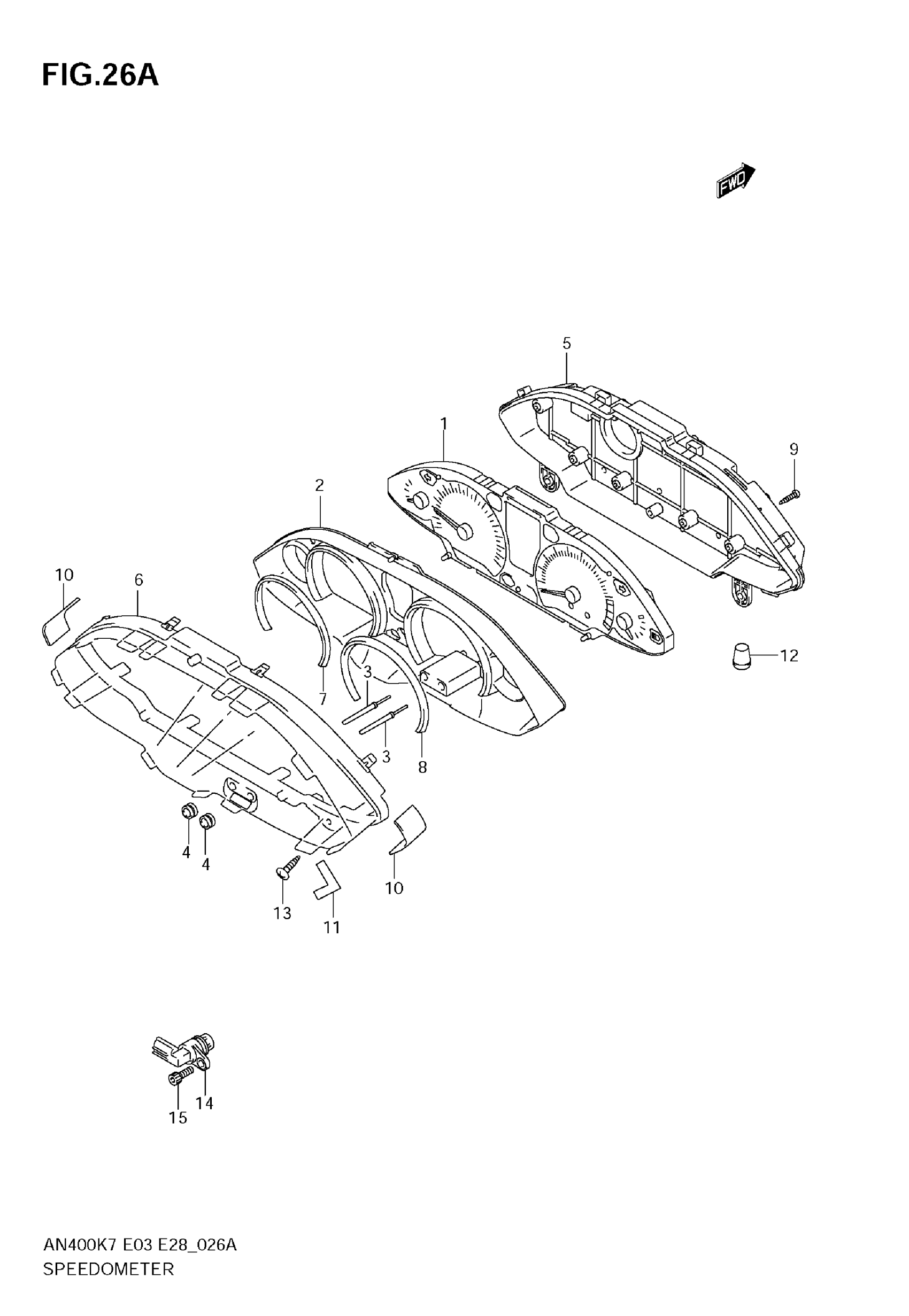

2009 Suzuki AN400AK9 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER (MILE/KILO)

34120-05HA0

—
Out of stock

1

SPEEDOMETER (KILO) | E28

34120-05H80

—
Out of stock

2

PLATE, WINDOW

34113-05H00

1
Out of stock

3

KNOB

34124-05H00

2
Out of stock

4

COVER, KNOB

34126-44G00

2
Out of stock

5

CASE, LOWER

34152-05H00

1

$101.83

In stock

6

GLASS

34154-05H00

1

$116.28

In stock

7

DECORATION RING, R

34157-05H10

—
Out of stock

8

DECORATION RING, L

34157-05H20

—
Out of stock

9

SCREW

34183-29F00

8
Out of stock

10

CUSHION (40X95X5)

34188-05H00

2
Out of stock

11

PROTECTOR (5X20X0.2)

34189-05H00

—
Out of stock

12

2

$3.42

In stock

13

SCREW

03541-0520A

4

$1.96

In stock

14

1

$151.35

In stock

15

BOLT, SENSOR

07130-0616B

1
Out of stock
