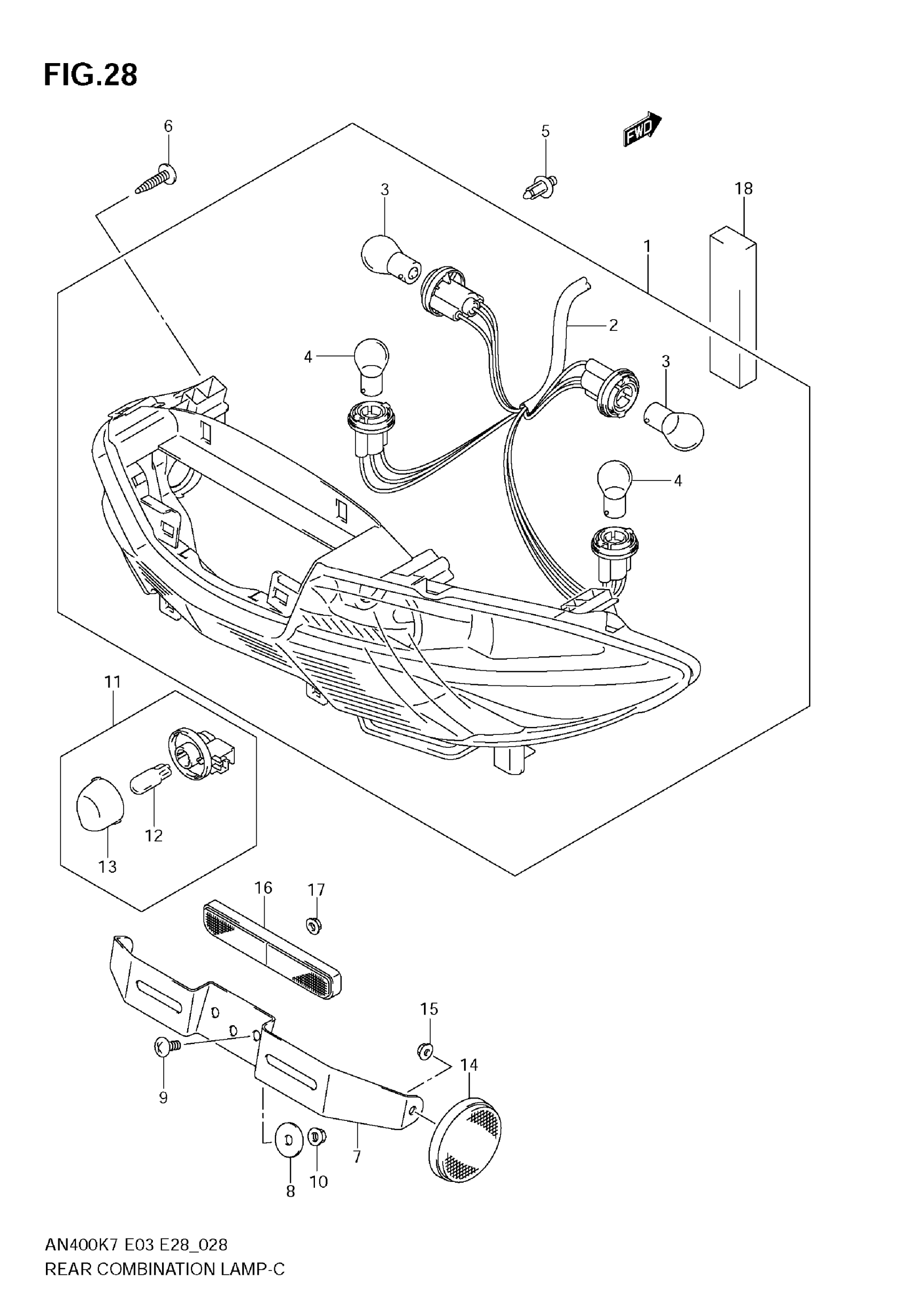

Suzuki AN400AK9 (2009) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMB

35710-05H00

$677.58

2

SOCKET & CORD

35718-05H00

$80.57

3

BULB (12V21W,AMBER)

09471-12186

$16.18

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

5

CLIP, REAR COMB

09409-08308-5ES

$1.97

6

SCREW

03541-0516B

$1.77

7

PLATE, LICENSE

35927-05H00

Unavailable

8

WASHER (6.5X24X1.2) | ?09160-06140

09160-06114

$2.01

9

SCREW

02142-0616B

$1.80

10

NUT

08316-1006B

$2.50

11

LAMP ASSY, LICENSE

35910-14F01

$34.10

12

.BULB (12V5W)

09471-12216

$4.84

13

LENS

35912-14F11

$9.35

14

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.23

15

NUT, REAR

08316-1005B

$2.50

16

REFLECTOR ASSY, REAR

35970-05H00

$33.12

17

NUT

08313-2005B

Unavailable

18

CUSHION, REAR COMB | 15X70X20

33652-05H00

Unavailable
