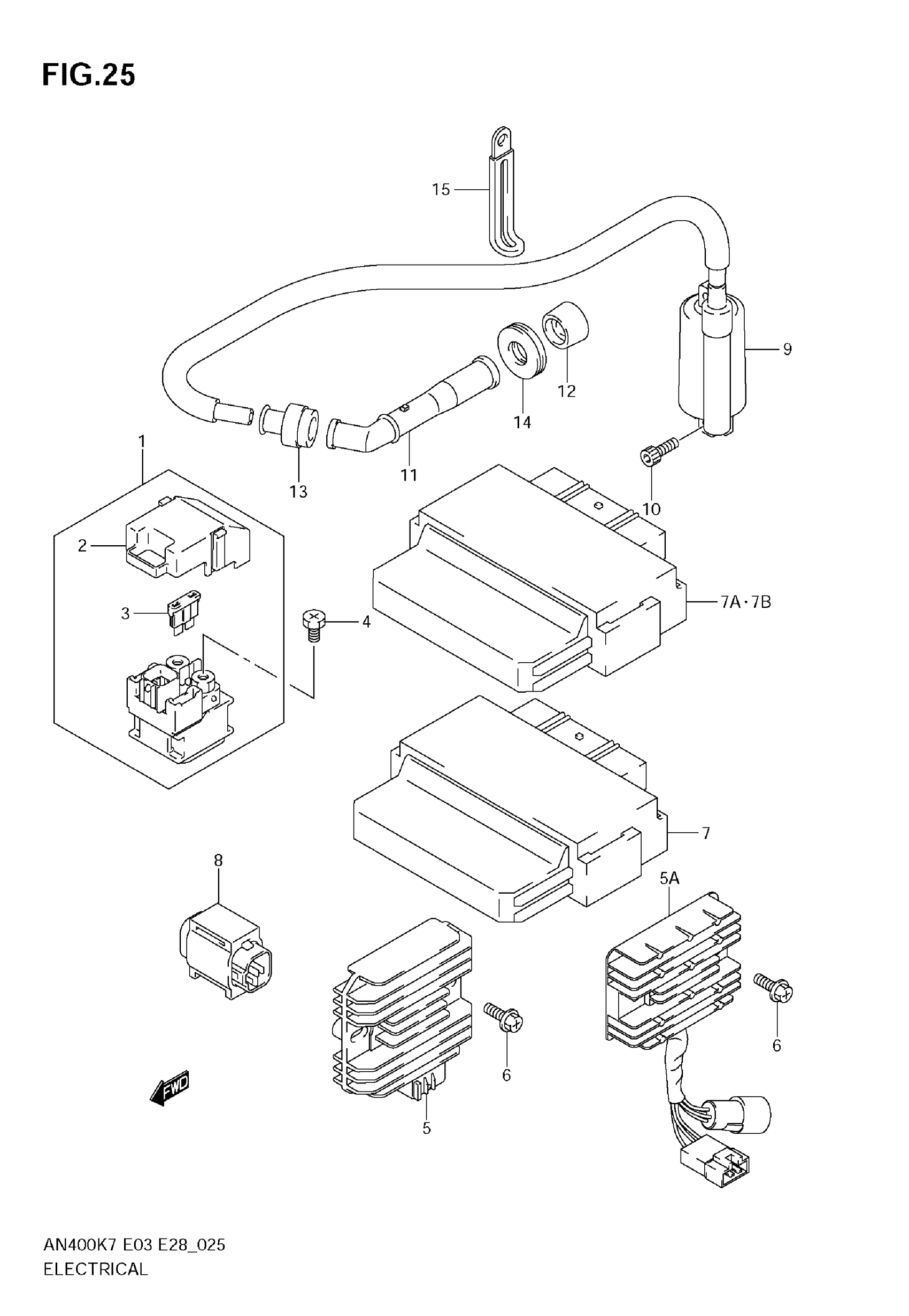

Suzuki AN400AK9 (2009) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20.

31800-21E30

$64.39

2

COVER

31861-47E00

$18.23

3

FUSE (30A)

09481-30101

$2.35

4

SCREW (6X8)

09128-06013

$1.28

5

RECTIFIER ASSY | MODEL K7

32800-20H00

$354.87

5A

RECTIFIER ASSY | MODEL K8 This part replaces 32800-05H11.

32800-47H40

$382.78

5A

RECTIFIER ASSY | MODEL K9 This part replaces 32800-05H20.

32800-47H50

$321.35

6

SCREW

02162-0620B

$2.27

7

CONTROL UNIT, FI | MODEL K7

32920-05H12

Unavailable

7A

CONTROL UNIT, FI | MODEL K8

32920-05H40

Unavailable

7B

CONTROL UNIT, FI | MODEL K9

32920-05HB0

Unavailable

8

SENSOR ASSY,FUEL CUT

33960-06G10

$86.01

9

COIL ASSY, IGNITION

33410-05H00

$183.72

10

BOLT

07130-0525A

$2.38

11

CAP ASSY, SPARK PLUG

33510-48B10

$30.40

12

SEAL, SPARK PLUG

33541-23E10

$6.45

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

14

COVER,SPARK PLUG CAP

33543-33E01

$4.34

15

CLAMP (L:45)

09404-06429

$1.88
