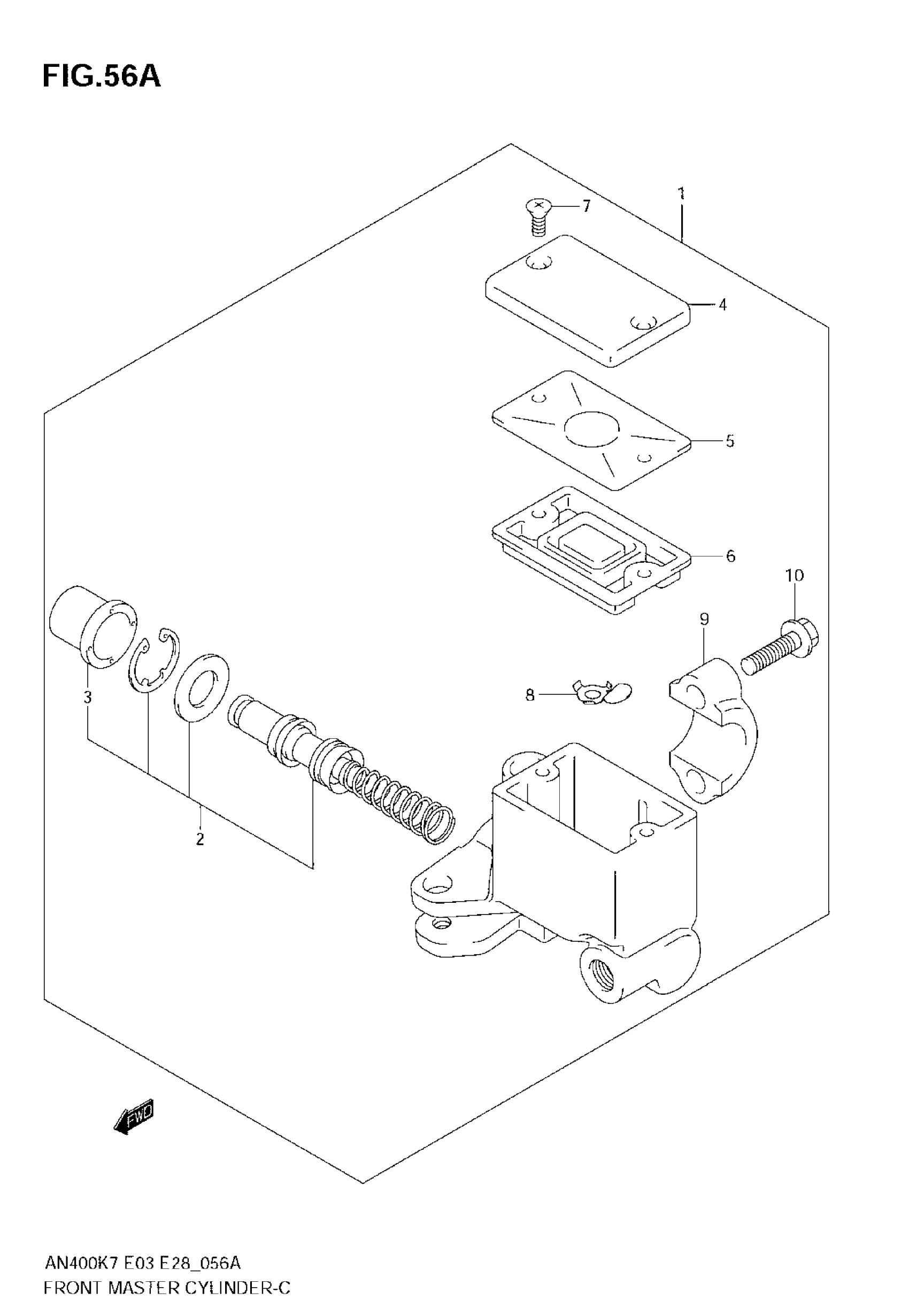

Suzuki AN400 (2008) FRONT MASTER CYLINDER (MODEL K8) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-14F41

Unavailable

2

PISTON/CUP SET

59600-04810

$41.38

3

BOOT

59666-44300

$5.30

4

CAP

59669-14F10

$23.02

5

.PLATE,DIAPHRAGM

59668-14F00

$13.10

6

DIAPHRAGM

59667-04700

$8.95

7

SCREW, RESERVOIR CAP

69689-49300

$1.81

8

PROTECTOR

59664-32F00

$13.20

9

.HOLDER

59671-36500

$11.50

10

BOLT (6X22)

59675-02FA0

$3.49
